1. The 12kΩ NTC sensor must be inserted into the
dywell and connected on terminals 3 and 4.
(See
the picture below]
.
2. Connect the DHW pump to the dedicated
connector on the internal wiring (see the wiring
diagram]
.
INSTALLATIoN
DOMESTIC HOT WATER CONNECTION
PRESTIGE SOLO + SMART TANK
- Rinse the installation before connecting the
domestic hot water circuit.
- Fill the tank before filling the heating circuit.
Code Description
10800079
Domestic hot water hydraulic kit
Kit to connect a Prestige Solo boiler to an
external water heater.
The kit includes :
- one circulator
- one NTC sensor 12kΩ (L = 3,2 m)
- one check valve
- four copper pipes + gaskets
5476G003
NTC sensor 12kΩ:
Senses the temperature in the external hot
water tank.
(Delivered with the kit 10800079)

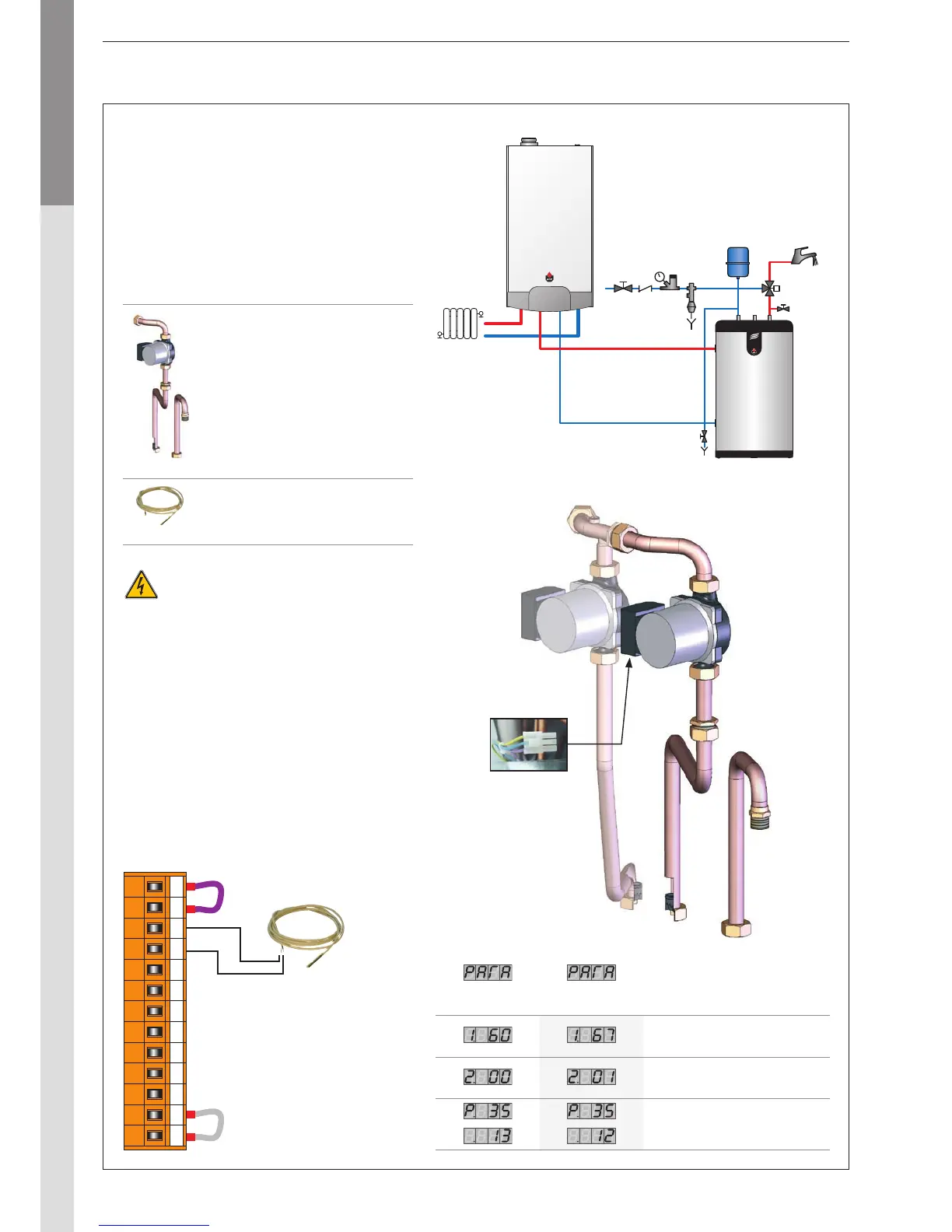

1. Cold water supply tap
2. Non-return valve
3. Safety group
4. Pressure reducing valve
5. Hot water expansion vessel
6. Thermostatic mixer
7. Drawoff tap
factury
setting
typical
setting Description
Domestic hot water temperature
setting (to be adjusted between 60
and 80°C).
00 : DHW Mode “OFF”
01 : DHW Mode “ON”
12 : Tank with NTC sensor
13 : Tank with control thermostat
