10 Supplies and Driver Settings

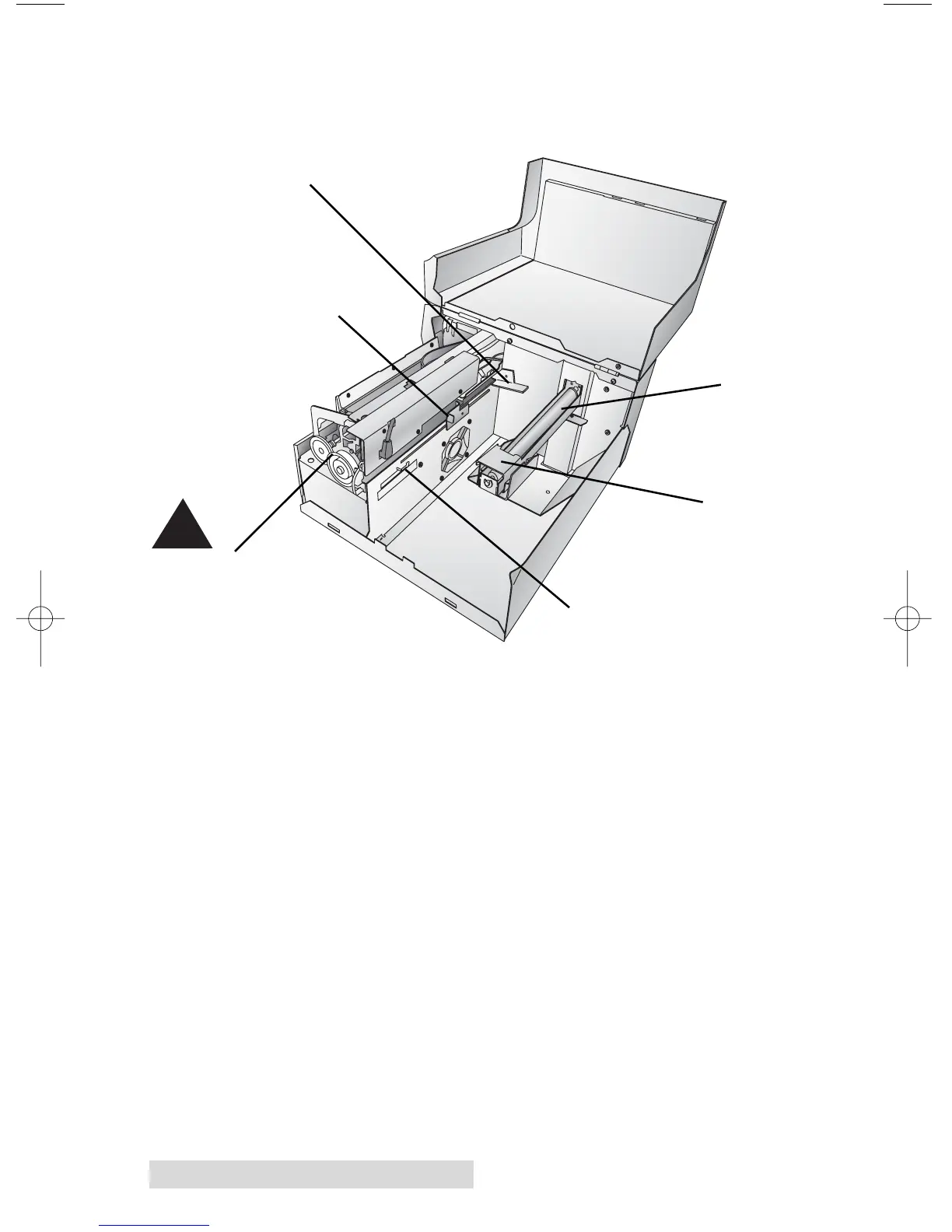

The following illustration shows the internal parts you should
be familiar with when loading stock into your printer:
Installing Label Stock
The following steps will guide you through loading label stock
in your printer:
Make sure power is connected and printer is on.
1. Open the Top Cover.
2. Lower the Roll Guide and pull it outward to make room
for your label stock.
Roll Arm
Movable Throat Guide
Sensor Position Adjustment
Roll Guide
Fixed Throat Guide
WARNING.
Hazardous moving parts.
Keep fingers and other
body parts away from the
paper-feed gears.
To Next Page
