Supplies and Driver Settings 13
over the identifying mark. The Sensor Position Adjust tab
has a guide in inches and milimeters that will help you
identify where to set the tab to align the sensor over any
identifying mark. To do this, simply measure from the
center of the hole or mark to the edge of the label stock.
For instance, if you have a 1/2 inch hole, which starts 1/4
inch from the edge of the label stock set the guide to 1/2
inch to make sure the sensor is in the middle of the
through hole.
NOTE: If you are using black stripe sensing label material you will need to
identify this in the printer driver under the Sensor Type setting.
Please refer to section D later in this chapter for more information
on changing driver settings.
12. Now your stock is installed. Please read the following
section to install your cartridges.
1/2”
1”
1/2”
1”
2.5
2.0 1.5
1.0
0.5
0.0 in.
(63.5)
(50.8) (38.1)
(25.4)
(12.7)
(0.0) (mm)

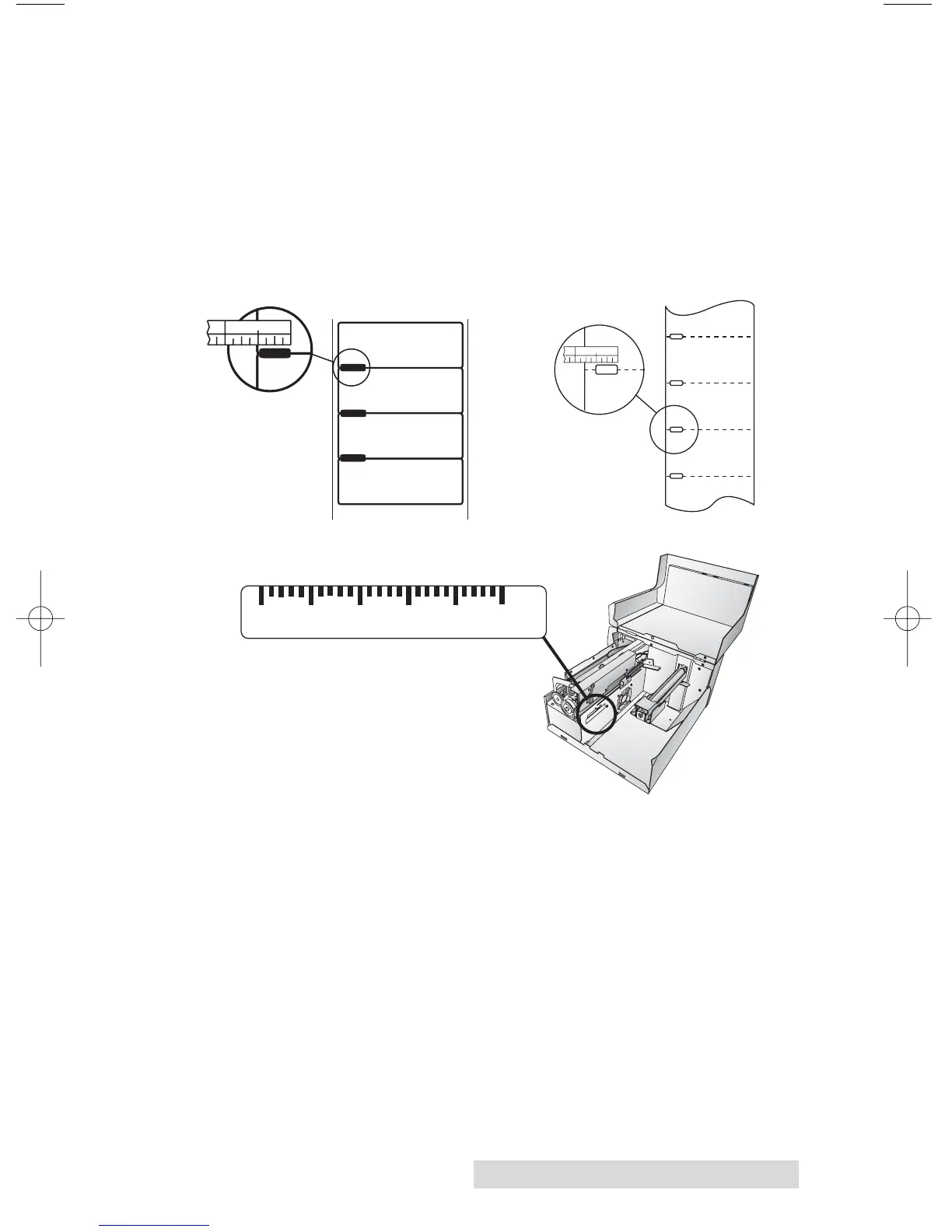

Sensor Position Adjustment
Through-hole
Black Stripe
510943.qxd 11/27/2007 11:26 AM Page 13
