Primus FX80 - Machines 8-11-14 Kg; 18-25-30 Lb

540889_PUB_DATE_1_JUL_2011.DOC INSTALLATION, MAINTENANCE AND USER' MANUAL 17
Technical data
Machines 8-11-14 kg / 18-25-30 lb

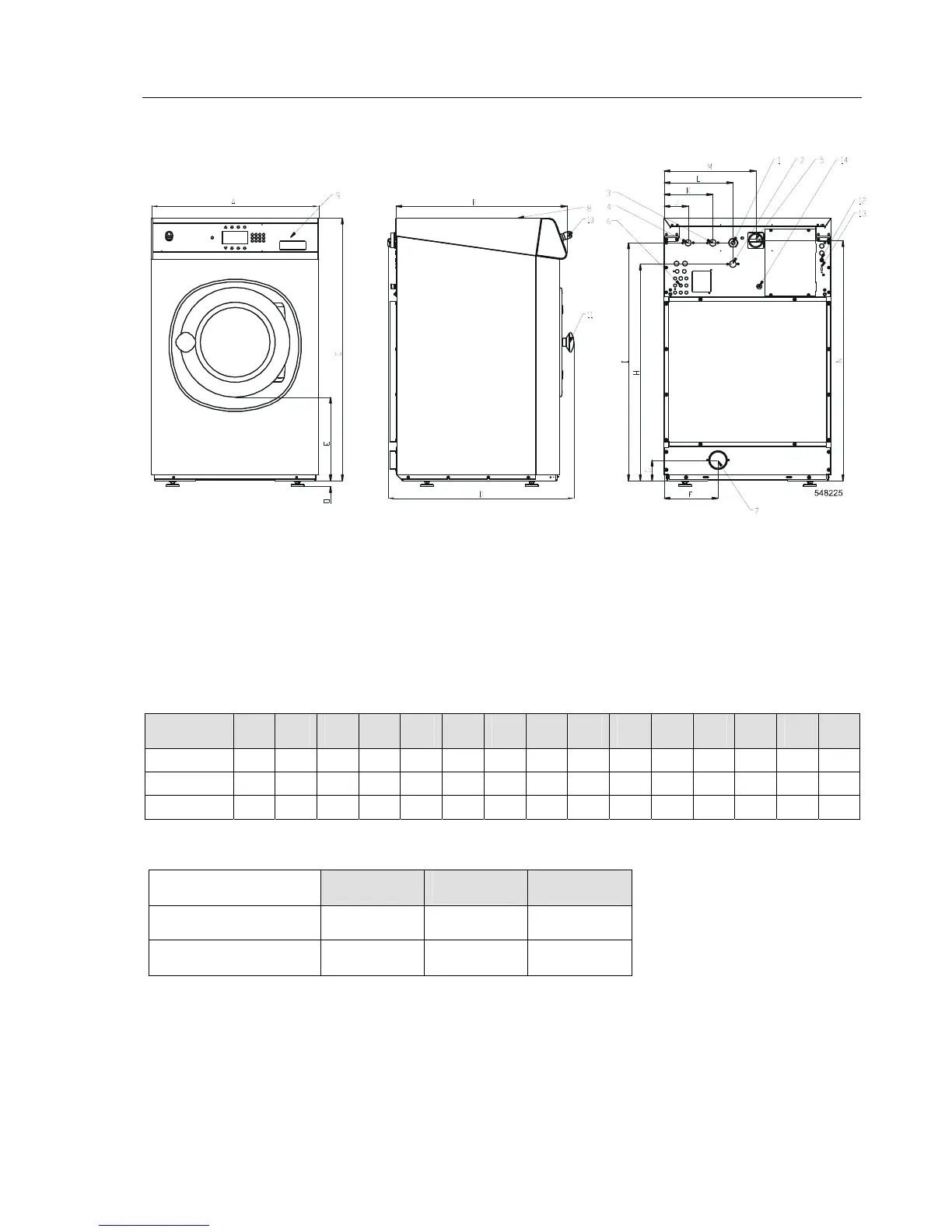

Front Left side Rear side
Fig.1
1. Electrical connection 8. Soap dispenser
2. Hot water 9. Control panel
3. Cold water hard 10. Button CENTRALSTOP
4. Cold water soft 11. Door opening: 8 kg / 18 lb: ø 330, 11-14kg / 25-30lb : ø 410
5. Main switch 12. Fuses
6. Connection liquid soap 13. USB port
7. Drain 14. Electrical connection to liquid soap pumps
A B C D E F G H I J K L M N O
8 kg / 18 lb
710 726 1115 790 355 230 88 920 1010 103 208 293 390 1020 24
11 kg / 25 lb
795 761 1225 792 342 230 88 1030 1120 103 208 379 475 1130 24
14 kg / 30 lb
795 911 1225 942 342 230 88 1030 1120 103 208 379 475 1130 24
Tab.3
8 kg / 18 lb 11 kg / 25 lb 14 kg / 30 lb
Frequency of the
dynamic force Hz 19,4 17,9 17,9
Floor load at
max extraction kN 1,9 ±0.5 2,2 ±0.5 2,6 ±0.5
Tab.4
