Installation
Mechanical installation

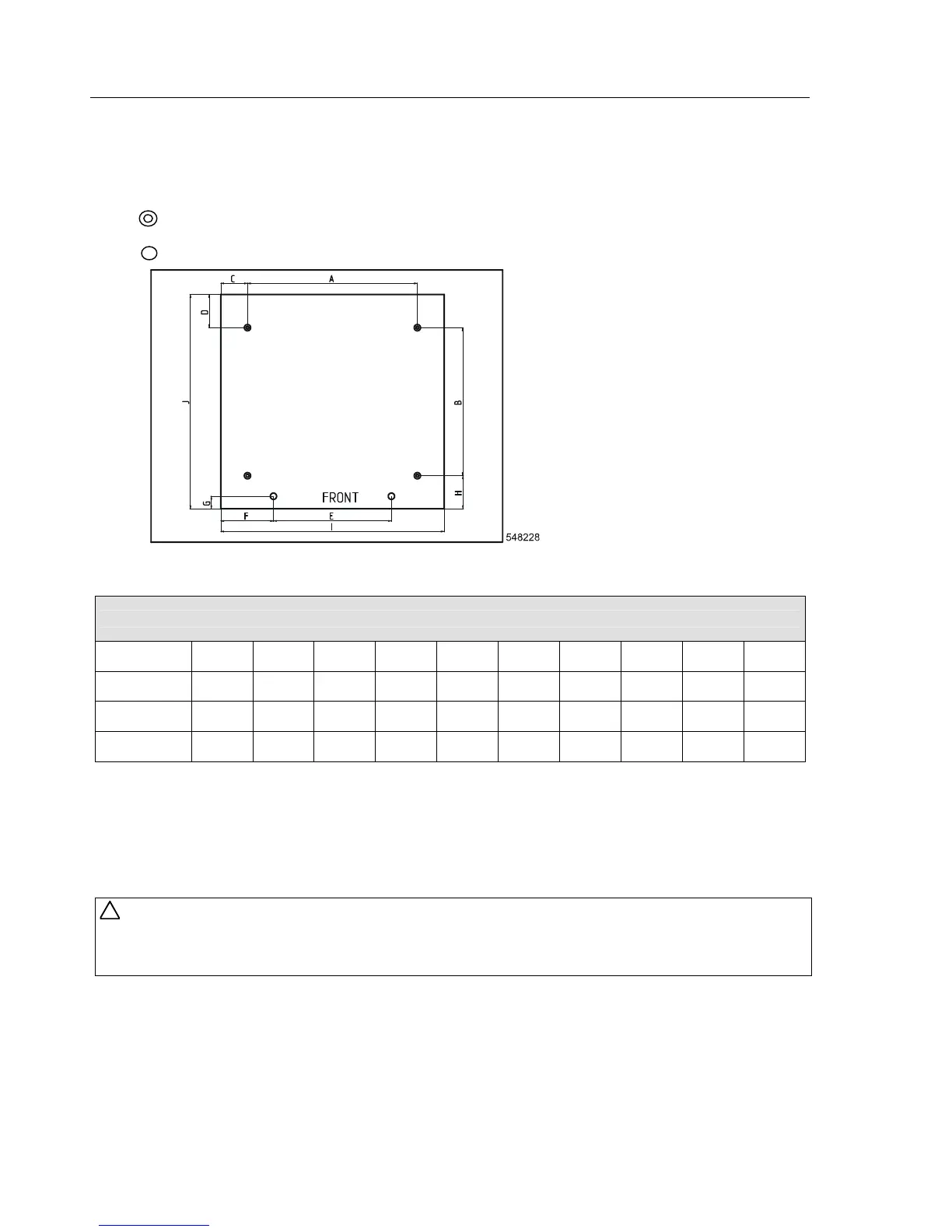

• Mark and drill 2 holes ø 10 mm and 50 mm deep in the positions shown.
- Position of feet
- Drilling points for expander bolts
Fig.4
Mechanical installation
Machine
A B C D E F G H I J
8 kg / 18 lb
530 444 95 129,5 375 167,5 40 118 710 691,5
11 kg / 25 lb
618 444 88,5 129,5 455 170 35 118 795 691,5
14 kg / 30 lb
618 564 88,5 159,5 515 140 60 118 795 841,5
Tab.8
• The machine shall be lifted in the bottom frame.
• Place the machine over the two drilled holes.
• Check that the machine is in level.
Adjust with the feet.
WARNING!
IT IS OF UTMOST IMPORTANCE THAT THE MACHINE IS PLACED IN LEVEL, FROM SIDE TO SIDE AS
WELL AS FRONT TO REAR. IF THE MACHINE IS NOT PROPERLY LEVELED, IT MAY RESULT IN OUT-
OF-BALANCE WITHOUT A REAL OUT OF BALANCE IN THE DRUM.
• Mount the expander bolts in the holes drilled in the floor. Fit the washers and nuts, and tighten well.
!
