540889_PUB_DATE_1_JUL_2011.DOC INSTALLATION, MAINTENANCE AND USER' MANUAL 25
Fig.9 Recommended drain
pipe diameters
Installation
Drain connection
Connect a 76 mm (3") pipe or rubber hose to the machine’s drain pipe, ensuring a downward flow
from the machine. Avoid sharp bends which may prevent proper draining.
The drainage pipe should be located over a floor drain, drainage channel.

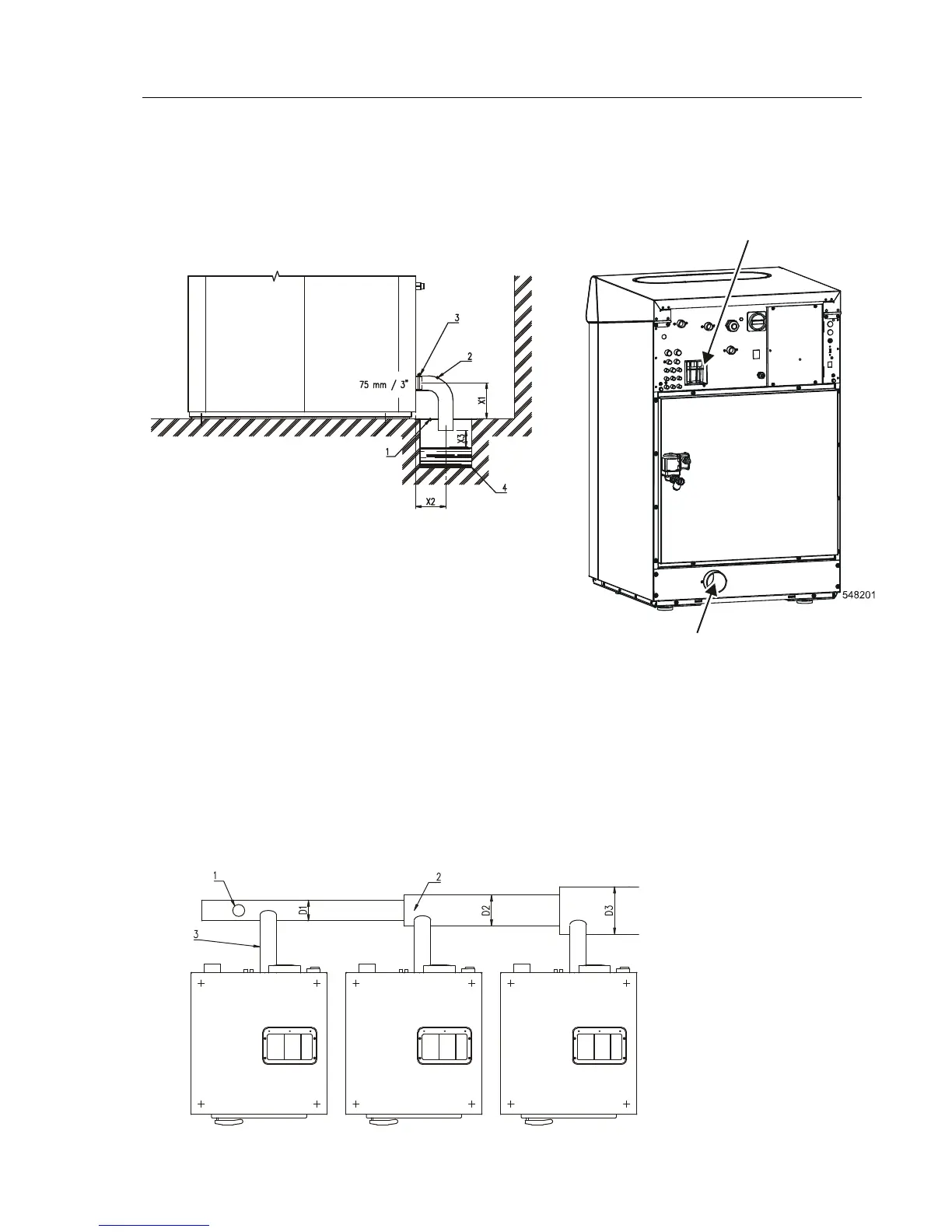

Fig.7
1. Waste channel cover
2. Drain elbow ∅ 76 mm / 3“
3. Clamp
4. Waste channel
Recommended distances for 8-11-14 kg / 18-25-30 lb
x1 = 112 mm
x2 = >100 mm
x3 = >20 mm
The main drain channel-pipe must have the capacity to be able to handle the total output of all connected
machines. In a drainpipe, a deodorized must be provided every twenty meter, fig.9., pos.1 to assure
the good working of the drain pipe. If the main drain pipe cannot be sufficiently deodorized, install a deodorizer
per machine. Every time a machine is coupled on the drainpipe, the diameter of the tube or the width of the
waste channel must be more. See, fig.9., D1, D2, D3.
The recommended drain pipes diameter are:
D1 = 75 mm / 3“ for one machine
D2 = 100 mm / 4“ for two machines
D3 = 125 mm / 5“ for three machines
Venting
Fig.8 Drain connection
100437
100436
