Extend Holding Bin
EHB Series

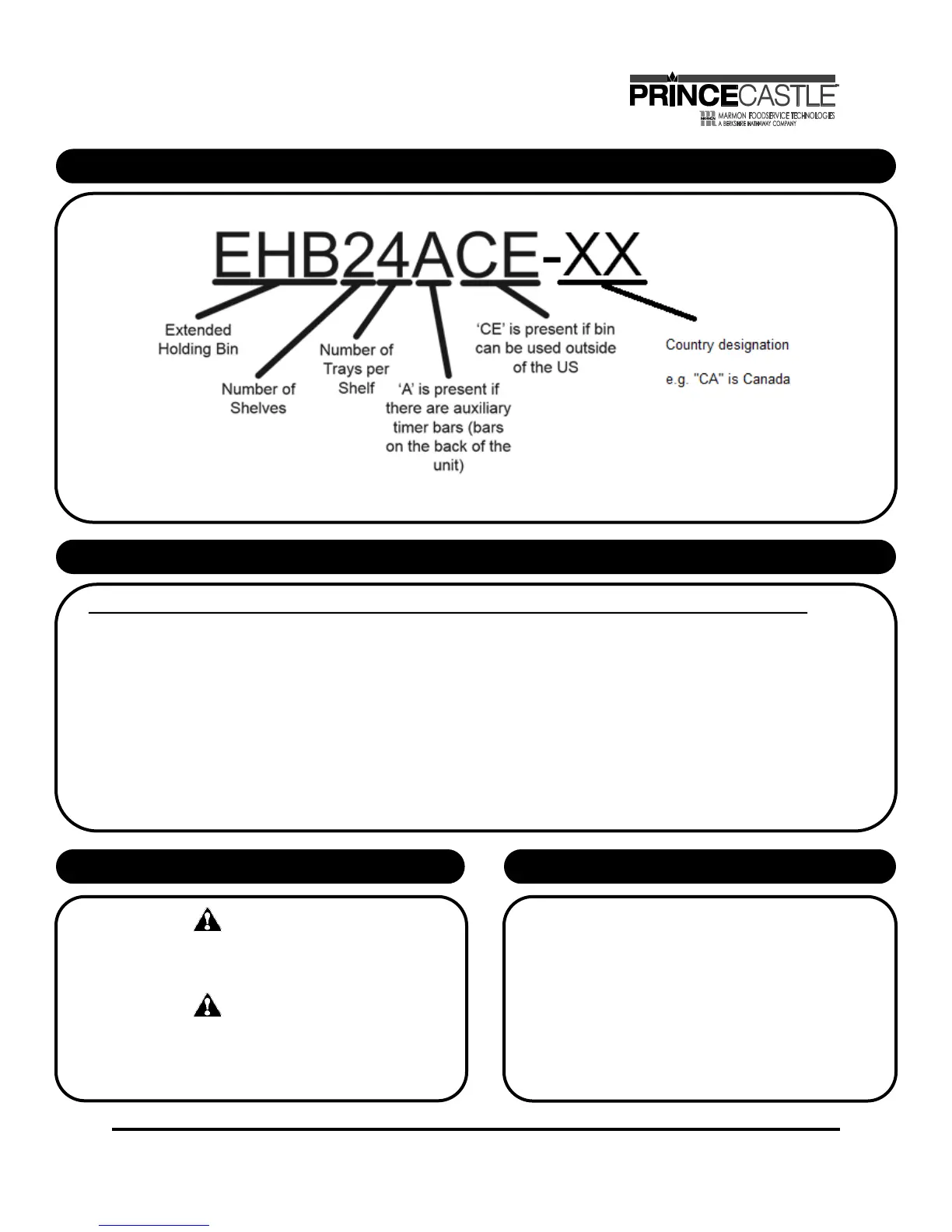

Model Identification
Model Specifications
STYLE MODEL NO. WIDTH (mm) HEIGHT (mm) DEPTH (mm) WEIGHT (kgs) VOLTAGE AMPS
2H X 2W EHB22A 19.7 (500) 11.1 (282) 14.1 (358) 64 lbs. (29.0) 208-240 3.8-4.3
2H X 3W EHB23A 27.2 (691) 11.1 (282) 14.1 (358) 74 lbs. (33.6) 208-240 6.8-7.8
2H X 4W EHB24A 33.2 (843) 11.1 (282) 14.1 (358) 97 lbs. (44.0) 208-240 9.0-10.4
3H X 2W EHB32A 19.7 (500) 18.3 (465) 14.1 (358) 80 lbs. (36.3) 208-240 6.8-7.8
3H X 4W EHB34A 33.2 (843) 18.3 (465) 14.1 (358) 120 lbs. (54.4) 208-240 13.5-15.6
4H X 2W EHB42A 19.7 (500) 20.6 (523) 14.1 (358) 94 lbs. (42.6) 208-240 7.5-8.7
NOTE: All Model Numbers above are for double-sided units (with auxiliary timer bars). For single-sided, remove the letter “A”
NOTE: For international (outside of the US) add “ CE” to the end of the model number.
NOTE: Weight (kgs) is shipping weight.
Safety Information
WARNING
Indicates information important to the proper operation of the unit.
Failure to observe may result in damage to the equipment and/or
severe bodily injury or death.
CAUTION
Indicates information important to the operation of the unit.
Failure to observe may result in damage to the equipment.
Safe Service Practice
The service manual is intended for use by persons having
electrical and mechanical training and a level of knowledge.
PRINCE CASTLE cannot be responsible, or assume any
liability for injury or damage arising from the use of this manual.
To avoid personal injury and/or property damage, it is important
that safe service practices be observed, including the following:
- Do not service this unit without first reading this manual.
- Do not attempt a repair, if you have doubt as to your ability.
- Do not attempt to replace any components, unless all power
has been disconnected.
