Fig 5

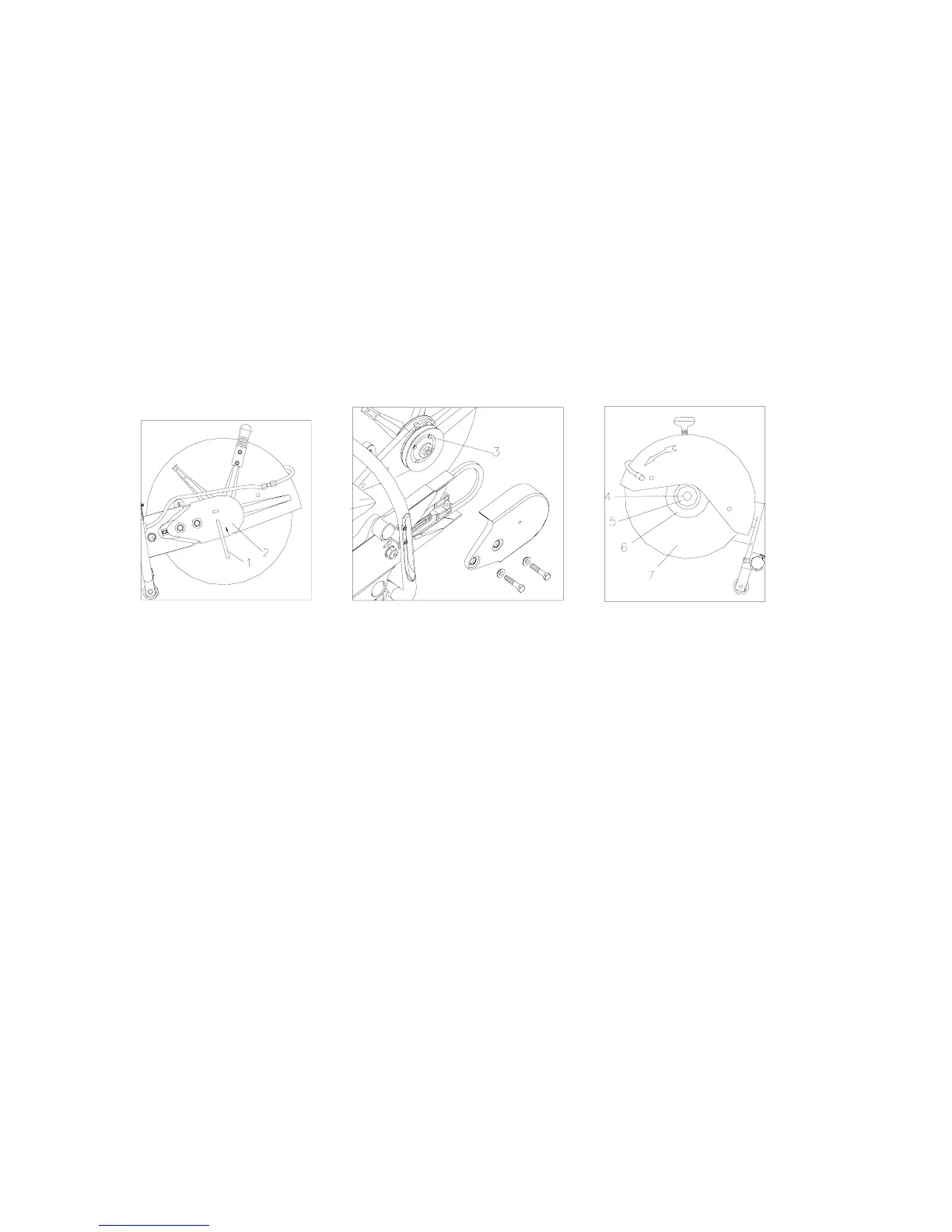

. Tensioning the V-belt: (Ref. Fig.6)
● Loosen and unscrew the two hexagon bolts (2) on the V-belt guard (1) and
then remove the V-belt guard.
● Loosen the three hexagon bolts (4) on the bearing plate (3).
● Turn the tensioning nut (5) clockwise until the V-belt is tensioned.
● Tighten the three hexagon bolts on the bearing plate.
● Fit the V-belt guard and fit and tighten the two hexagon bolts (2).
26
