HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is adjusted to the highest
level, the drive belt may need to be adjusted.
To a d just the driv e be lt, y ou m ust r emov e th e pe d al
arms, the pedal discs, and the left shield.
First, see step 17 on page 14 and step 16 on page
14 and remove the Left and Right Pedal Arms
(11, 12).
Next, see EXPLODED DRAWING A on page 30.
Using a standard screwdriver, remove the left and right
Pedal Discs (15).
Next, remove all of the M4 x 16mm Screws (52) from
the Left and Right Shields (3, 4).
Next, remove the two M6 x 18mm Screws (43). Then,
remove the Left Shield (3).

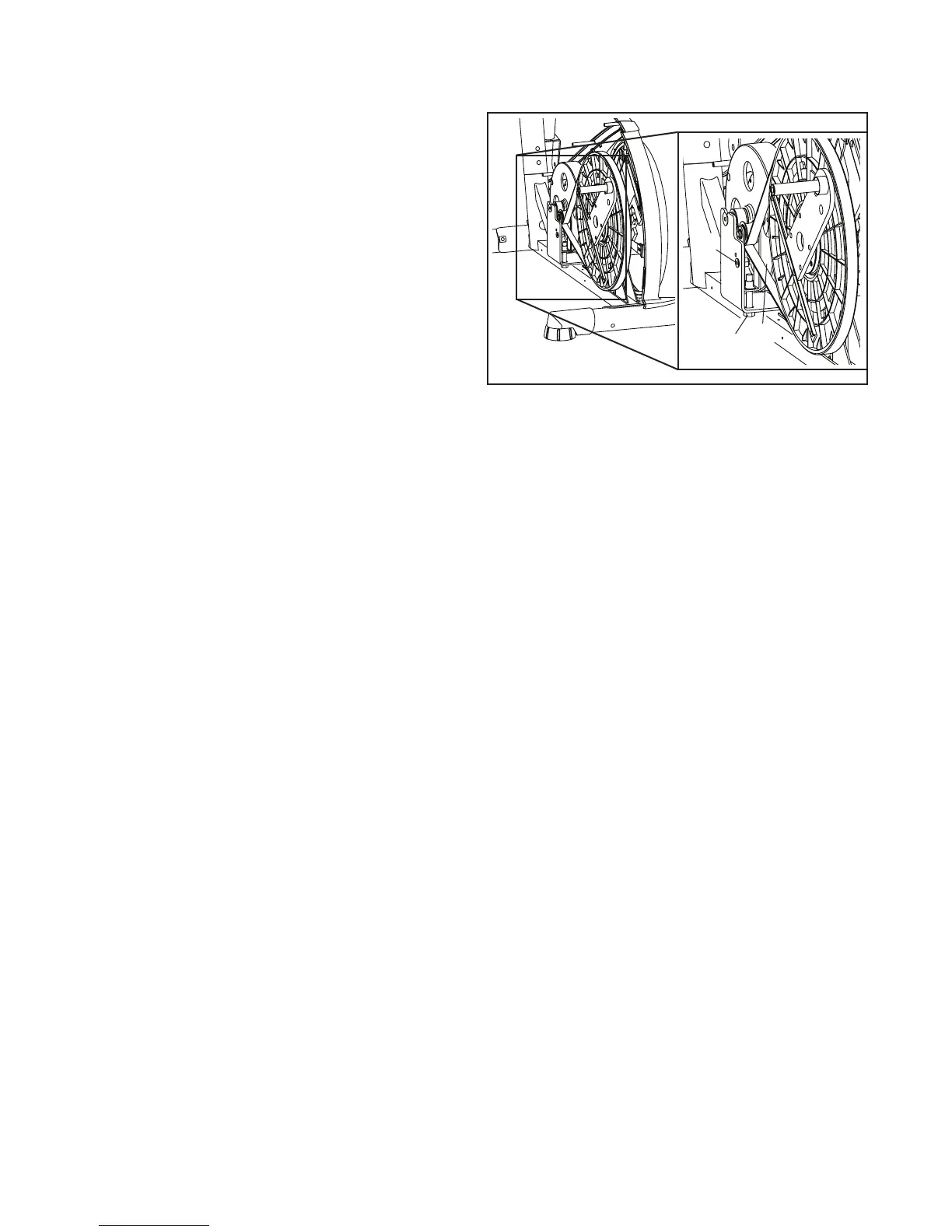

Loosen the M8 x 22mm Screw (65), and turn the
M10 x 60mm Bolt (62) until the Drive Belt (19) is tight.
When the Drive Belt (19) is tight, tighten the
M8 x 22mm Screw (65).
Then, reattach the shields, the pedal discs, and the
pedal arms.
