6

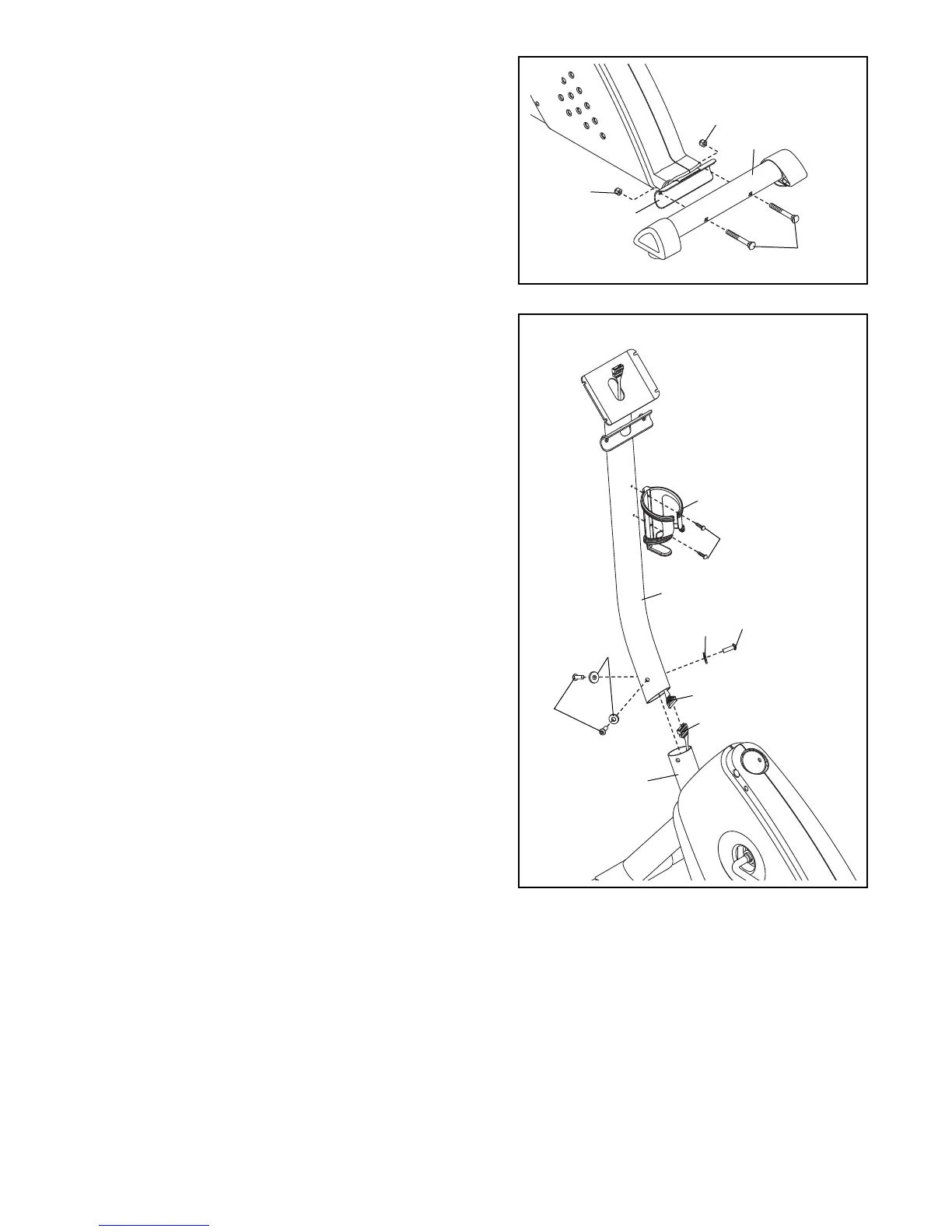

2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (6) with two M10 x 75mm
Carriage Bolts (30) and two M10 Nylon Locknuts (33).
30
6
1
3
3
33
2
3
55
41
41
45
45
1
13
20
8
36
3. Tip: Avoid pinching the Wire Harnesses (36, 55)
during this step.
While another person holds the Upright (13) in the
position shown, connect the Upper Wire Harness (36)
to the Lower Wire Harness (55).
Carefully pull the excess Upper Wire Harness (36) out
of the top of the Upright (13), and slide the Upright
onto the Frame (1). Next, attach the Upright with three
M8 x 25mm Button Screws (45) and three M8 Split
Washers (41).
Attach the Water Bottle Holder (8) to the Upright (13)
with two M4 x 22mm Screws (20).
Avoid pinching the
Wire Harnesses (36,
55) during this step
To Next Page
