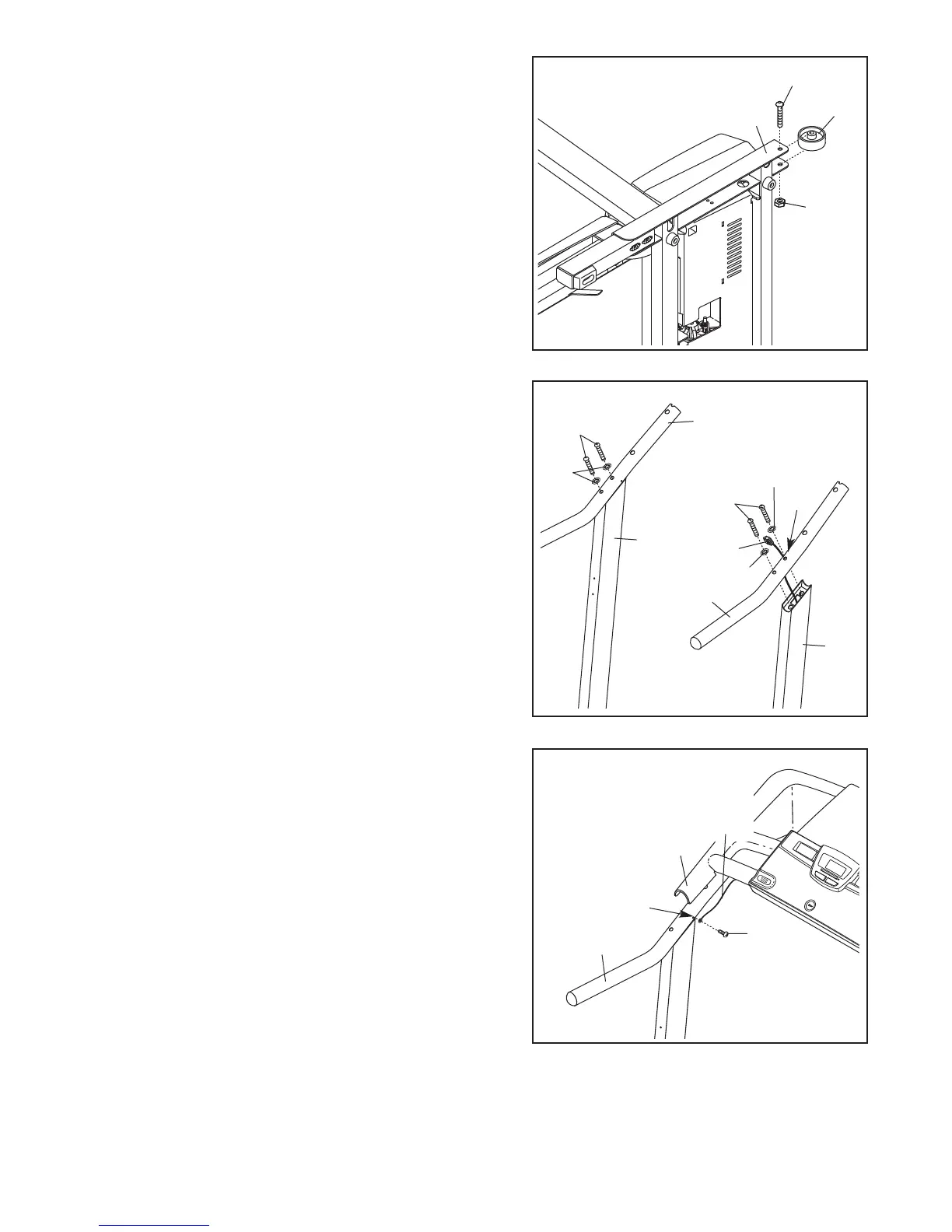

. Attach a Wheel (66) to the base of the Uprights (69) with
a Wheel Bolt (64) and a Nut (13) as shown. Do not
overtighten the Bolt; the Wheel should turn freely.
W
ith the help of a second person, carefully tip the tread-
mill onto its other side. See assembly steps 1 and 2, and
attach the other Extension Leg (63), Round Base Pads
(57), and Wheel (66).
With the help of a second person, carefully lower the
base of the Uprights (69) to the floor so the Uprights are
in the vertical position.
6
6
1
3
69
64
3. If there is a board between the Uprights (69), remove the
board and the two bolts. Discard the board and the bolts.
Identify the Right Handrail (72), which has a large hole in
the left side. Remove the wire tie holding the Upright
Wire (42) inside the right Upright (69). Feed the Upright
Wire into the hole in the bottom of the Right Handrail and
out of the large hole in the side. Note: It may be helpful
to use needlenose pliers to pull the Wire Harness out of
the hole.
Set the Right Handrail (72) on the right Upright (69).
Attach the Right Handrail with two Handrail Bolt (37) and
two Handrail Star Washers (88). Be careful not to
pinch the Upright Wire (42).
Attach the Left Handrail (71) as described above. Note:
There is not an upright wire on the left side.
42
Hole
72
88
88
37
37
88
71
69
69
2
3
Small
Hole
71
4. Hold the Console Base (47) near the Left Handrail (71).
Attach the end of the ground wire on the Console Base
to the indicated small hole in the Left Handrail with the
Silver Ground Screw (75).
47
75
Ground
Wire
4
To Next Page
