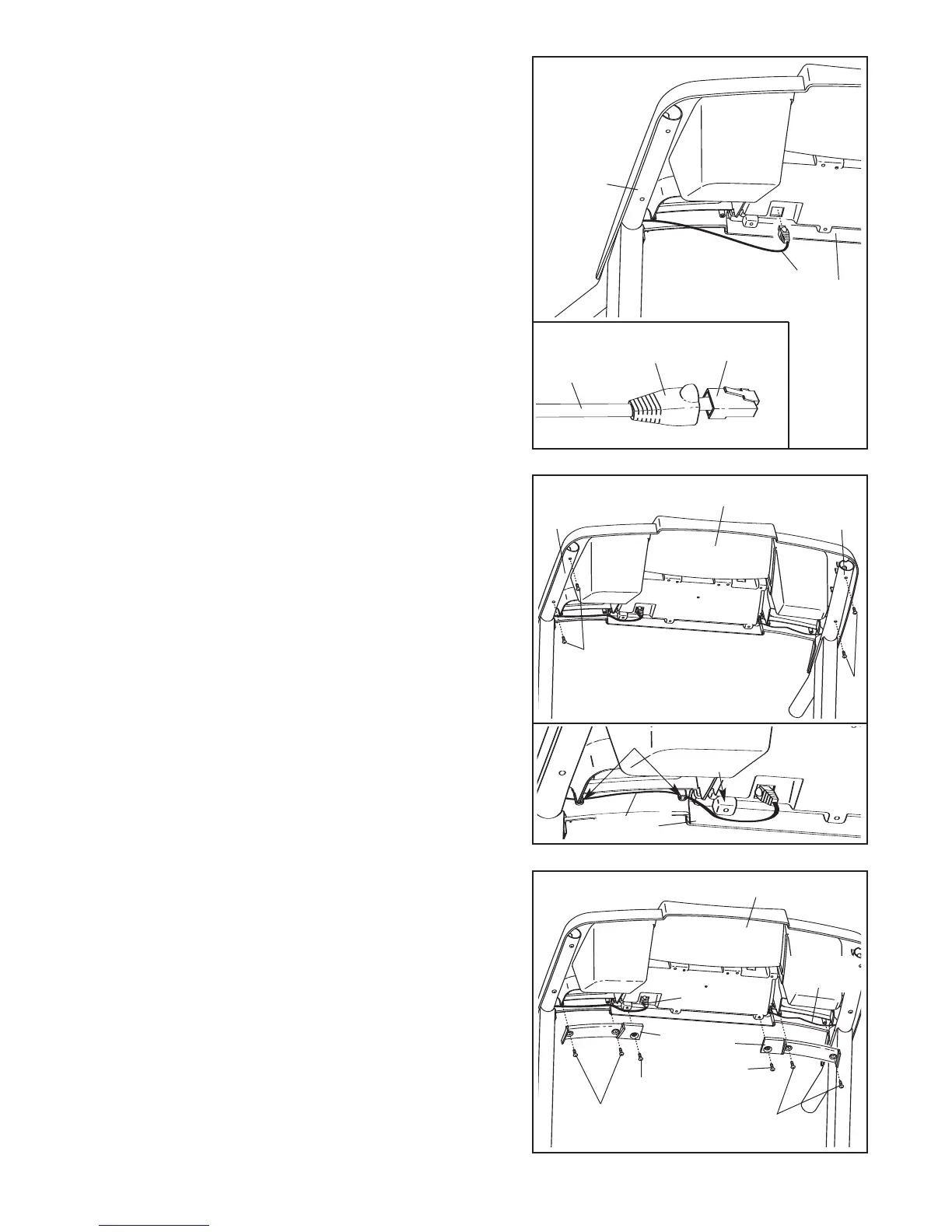

5. Touch the Right Handrail (72) to discharge any static.
Slide the sleeve off the connector on the Upright Wire
(
42) as shown in the inset drawing. Next, press the end of
the Upright Wire into the socket in the bottom of the
C
onsole Base (47). T
he connector should slide easily
into the socket and snap into place.
If the connector
does not slide easily and snap into place, turn the connec-
tor and then insert it. Then, slide the sleeve back over the
connector.
72
47
5
47
6. Set the Console Base (47) on the Handrails (71, 72).
Attach the Console Base with four 3/4" Screws (2). Start
all four Screws before tightening them; do not over-
tighten the Screws.
See the lower drawing. Make sure that the Upright
Wire (42) is routed below the two indicated round
posts (A). Next, press the Upright Wire into the slot be-
tween the square post (B) and the Console Base (47).
2
2
72
71
6
48
42
Ground
Wire
36
34
47
7. Cover the Upright Wire (42) with the Right Grip Plate
(36). Be careful not to pinch the Upright Wire. Tighten
two 1/2" Screws (48) and a 3/4" Screw (2) into the Right
Grip Plate and the Console Base (47).
Attach the Left Grip Plate (34) over the ground wire and
the other wires with two 1/2" Screws (48) and a 3/4"
Screw (2). Be careful not to pinch any of the wires.
48
2
2
7
42
Sleeve
Connector
A
B
47
42
