7

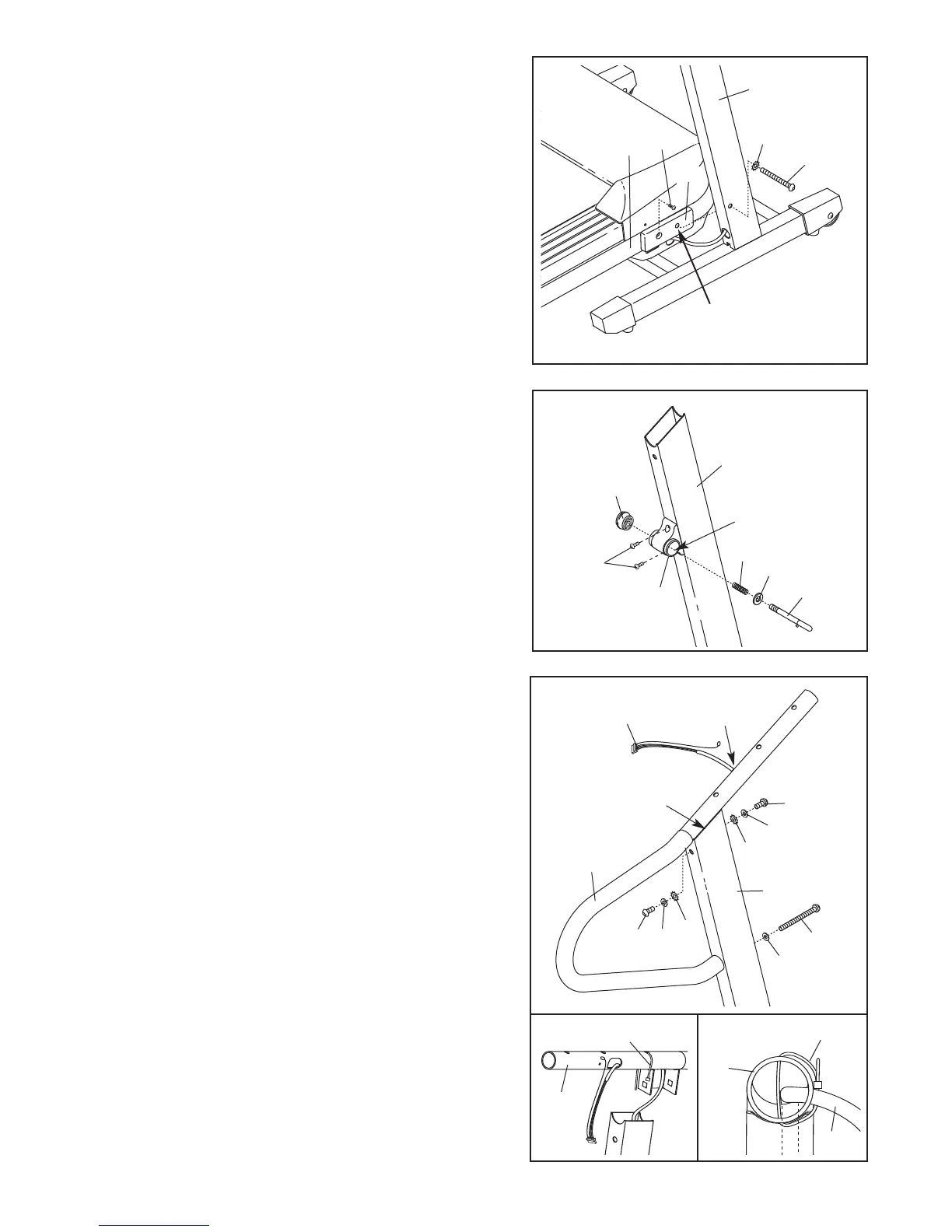

5. Feed the Wire Harness (65) into the bracket on one of
the Handrails (40) and out of the large hole in the left
side. (Note: It may be helpful to use needlenose pliers to
pull the Wire Harness out of the hole.) Remove any plas-
tic ties from the bracket.
Insert the bracket on the Handrail (40) into the upper end
of the Right Upright (104). Attach the Right Handrail with
two 1” Bolts (43), two 1/4” Washers (44), two 1/4” Star
Washers (45), a 4” Bolt (117), and a 5/16” Washer (56)
as shown. Do not tighten the Bolts yet.
See drawing 5a. Insert the included nylon tie through the
indicated hole in the Handrail (40).
See drawing 5b. Look into the Handrail (40) and make
sure that the Wire Harness (65) is secured to the side
shown. Tighten the nylon tie and cut the excess off the
end.
Attach the other Handrail (not shown) in the same way.
Note: You may need to tip the Handrail to one side as
you insert the bracket into the top of the Left Upright.
There is not a wire harness in the Left Upright.
65
43
44
104
45
43
44
45
40
40
117
56
Large
Hole
Bracket
5
5a
5b
4. Attach the Latch Housing (46) to the Left Upright (47)
with two 3/4” Screws (38). Make sure that the large hole
in the Latch Housing is on the side shown.
Remove the Latch Knob (48) from the Latch Pin (52).
Make sure that the Latch Pin Collar (49) and the Spring
(50) are on the Latch Pin. Insert the Latch Pin into the
Storage Latch (46), and then tighten the Latch Knob
back onto the Latch Pin.
46
38
52
50
47
Large Hole
48
49
4
3. Open part bag B. Hold an Upright Spacer (59) against
one side of the Frame (96) as shown. Insert a 3 1/2” Bolt
(
54) into the indicated hole in the Upright Spacer and the
Frame. Tighten a 3/4” Tek Screw (9) into the Upright
S
pacer. Remove the 3 1/2” Bolt. Repeat on the other
side of the Frame.
Have a second person lift the front end of the Frame
(96). Insert a 3 1/2” Bolt (54) with a 3/8” Star Washer (55)
into the Right Upright (104) and the right Upright Spacer
(59), and tighten the Bolt into the Frame. Do not over-
tighten the Bolt.
Repeat on the left side of the Frame.
3
55
96
Hole
5
4
104
9
59
Tie
Tie
65
40
To Next Page
