9. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included hex keys in a secure place. The large hex key is used to adjust the walking
belt (see page 17). To protect the floor or carpet, place a mat under the treadmill.
5
67
84
65
40

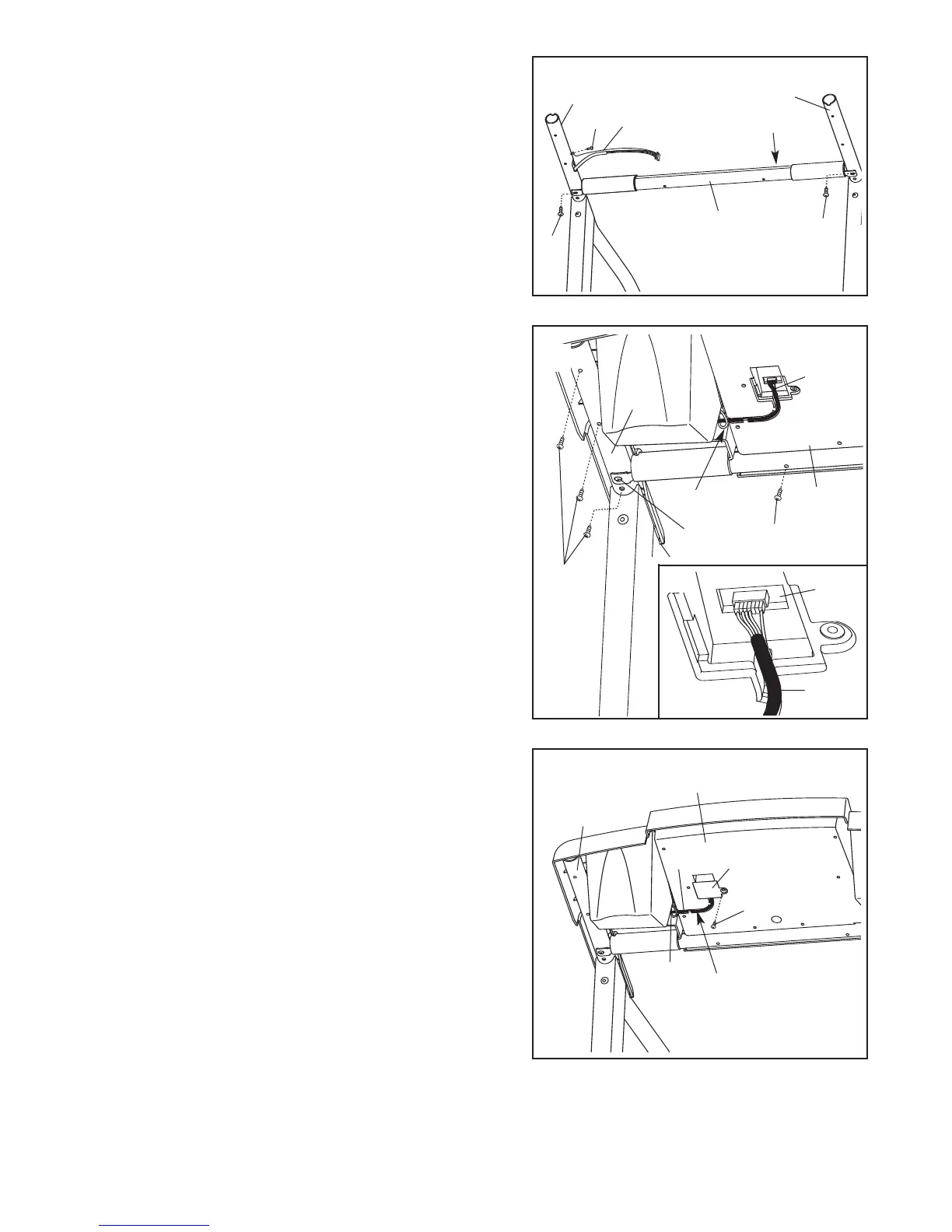

8. Press the Wire Harness (65) into the recessed track on
the back of the Console Base (67). Note: There may be a
cylinder on the Wire Harness preventing it from being in-
serted into the track. Press as much Wire as possible into
the track.
Insert the excess Wire Harness (65) into the large hole in
the side of the right Handrail (40).
Securely tighten the
nylon tie to prevent the Wire Harness from slipping.
Then, cut off the end of the nylon tie.
Attach the Access Door (84) to the Console Base (67) with
the 1/2” Screw (5).
Tighten, but do not overtighten, the bolts used in step
5. With the help of a second person, lower the up-
rights and firmly tighten the bolts used in steps 2.
8
Tie
Tie
7. Place the Console Base (67) on the right Handrail (40)
and the left Handrail (not shown).
Insert the Wire Harness (65) through the indicated nylon tie
on the Console Base (67). Next,
touch the right Handrail
(40) to discharge any static. See drawing 7a. Find the
connector on the end of the Wire Harness. Insert the con-
nector into the red socket beneath the Console (69). The
connector should slide easily into the socket and snap
into place.
If the connector does not slide easily and snap
into place, turn the connector and then insert it. IF THE
CONNECTOR IS NOT INSERTED PROPERLY, THE
CONSOLE MAY BE DAMAGED WHEN THE POWER IS
TURNED ON.
Identify the 3/4” Screws (38); be careful not to confuse
the 3/4” Screws with the 1/2” Screw (5). Attach the
Console Base (67) to the right Handrail (40) and the left
Handrail (not shown) with eight 3/4” Screws (only four
Screws are shown). Start all eight Screws before tight-
ening them. Do not overtighten the Screws.
Tighten the Crossbar Screws (37).
65
67
7a
65
69
7
40
6. Attach the end of the ground wire to the small hole in the
side of the right Handrail (40) with a Silver Ground Screw
(66).
O
pen part bag C.
A
ttach the Crossbar (39) to the right
Handrail (40) and the left Handrail (40) with two Crossbar
S
crews (37).
D
o not tighten the Crossbar Screws yet.
Make sure that the rectangular hole in the Crossbar is on
the indicated side.
6
8
Ground Wire
Hole
66
39
40
40
37
3
7
Track
37
38
38
