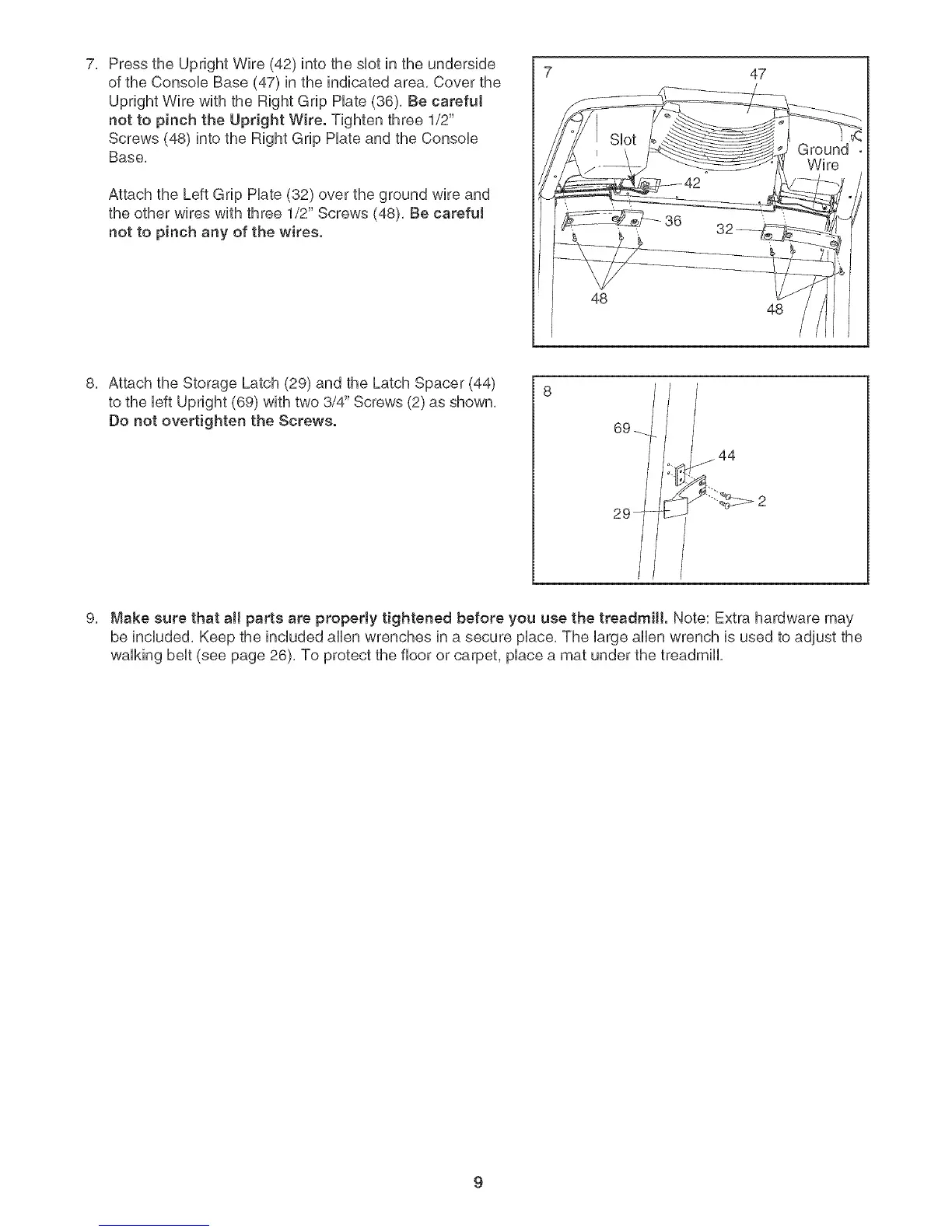

Press the Upright Wire (42) into the shotin the underside
of the ConsoHe Base (47) in the indicated area, Cover the
Upright Wire with the Right Grip Hate (36), Be carefut
not to pinch the Upright Wire. Tighten three 1/2"
Screws (48) into the Right Grip Hate and the ConsoHe
Base,
Attach the Left Grip Hate (32) over the ground wire and
the other wires with three 1/2" Screws (48), Be careful
not to pinch any of the wires.
48
47
48
Attach the Storage Latch (29) and the Latch Spacer (44)
to the HeftUpright (69) with two 3/4" Screws (2) as shown,
Do not overtighten the Screws.
44
9, Make sure that aH parts are properly tightened before you use the treadmil!. Note: Extra hardware may
be incHuded, Keep the incHudedaHHenwrenches in a secure pHace,The HargeaHHenwrench is used to adjust the
waHMngbeHt(see page 26), To protect the floor or carpet, pHacea mat under the treadmiHH,
