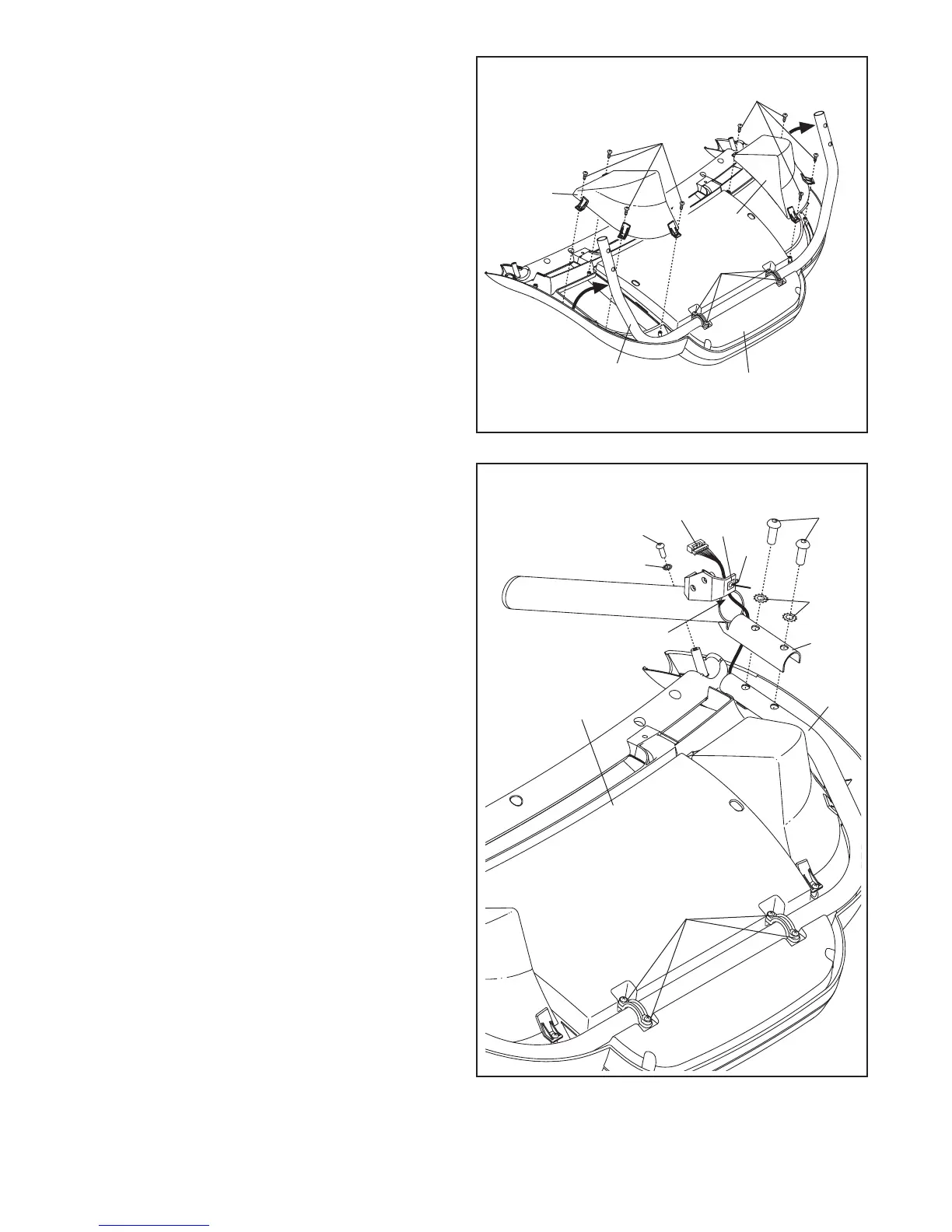

8. Identify the Right Handrail (64). Remove the tie
from the Right Handrail. If necessary, press the
M8 Cage Nut (85) back into place.
Hold the Right Handrail (64) near the console
assembly. Route the console wire around
the side of the Right Handrail as shown, and
through the slot in the Right Handrail.
If necessary, adjust the Console Frame (61) to
align the holes in the Right Handrail (64) with
the holes in the Console Frame.
Attach the Right Handrail (64) to the Console
Frame (61) and the console assembly with two
M8 x 25mm Screws (5), two M8 Star Washers
(6), and an M5 x 16mm Screw (23) with a 1/4"
Star Washer (8). Make sure that the console
wire is not pinched. Start all three Screws
before tightening any of them.
Attach the Left Handrail (not shown) as de-
scribed above. Note: There is not a wire on
the left side.
Tighten the #8 x 1" Screws (7). Be careful not
to overtighten the Screws.
64
23
5
61
Slot
Tie
8
6
8
Console
Wire
Console
Assembly
85
7
7
90
61
Console Assembly
65
65
60
7. Set the console assembly face down on a soft
surface to avoid scratching the console.
Loosen the four #8 x 1" Screws (7). Carefully
pivot the Console Frame (61) to the position
shown. Identify the Left and Right Accessory
Trays (90, 60). Attach the Accessory Trays to
the console assembly with eight M4.2 x 10mm
Screws (65).
Carefully pivot the Console Frame (61) back
down to the console assembly.
7
To Next Page
