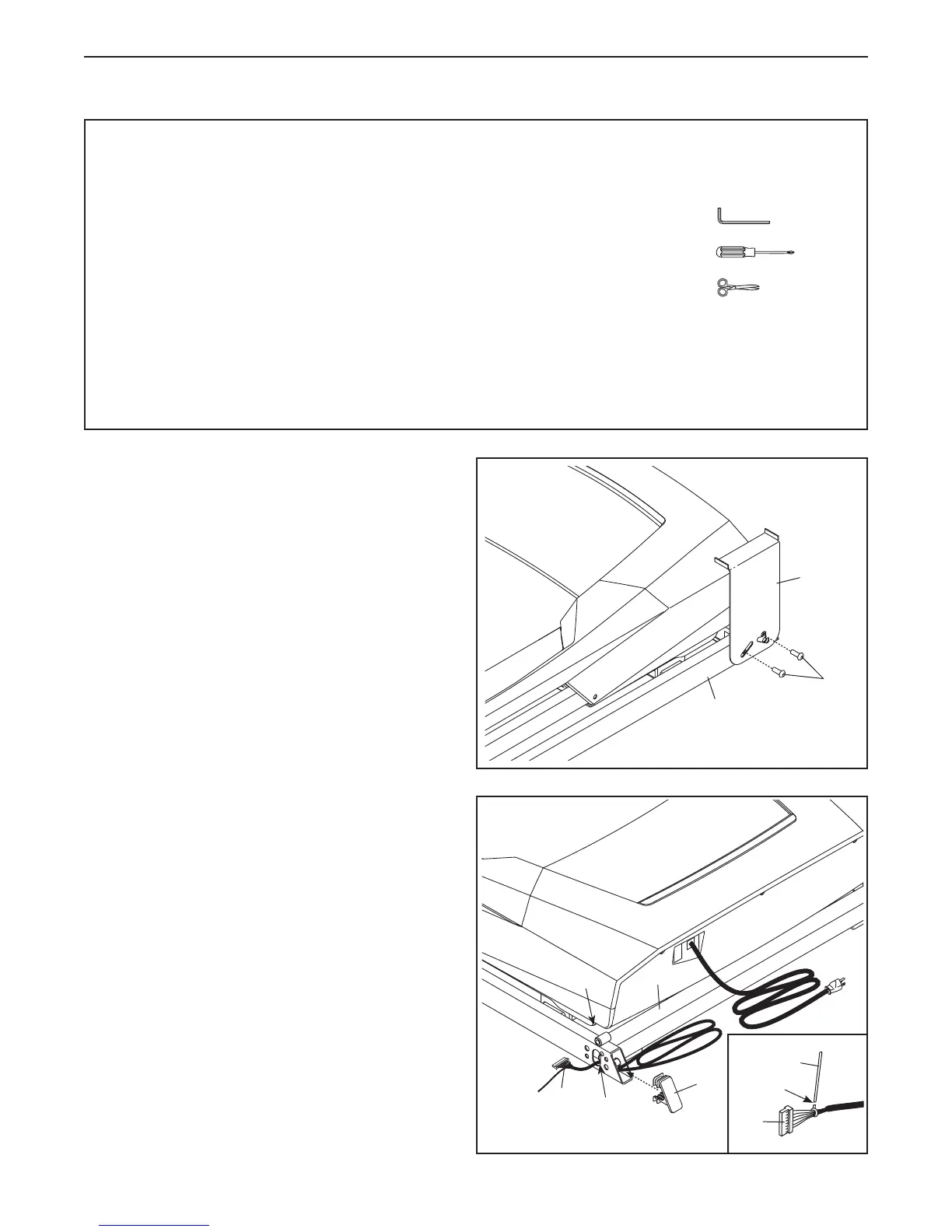

Pro-Form 415 Lt Treadmill - Assembly

7
1. Make sure that the power cord is unplugged.
Remove and discard the two screws (A) and the
shipping bracket (B) from the right side of the
Base (74). Then, remove and discard the screws
and shipping bracket (not shown) from the left
side of the Base.
• Tohireaservicetechniciantoassemblethisprod-
uct in your home, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materialsuntilyounishallassemblysteps.
• The underside of the walking belt is coated with
high-performance lubricant. After shipping, there
may be some lubricant on top of the walking belt
or on the shipping carton. This is normal. If there
is lubricant on top of the walking belt, wipe it off
with a soft cloth and a mild, non-abrasive cleaner.
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
one Phillips screwdriver
scissors
• To avoid damaging parts, do not use power tools.
1
ASSEMBLY
B
A
74
2. Locate the Upright Wire (63) bundled between
the Base (74) and the Belly Pan (52). Route the
Upright Wire into the Base and out of the indi-
cated hole.
Press a Base Cap (70) into each side of the
Base (74).
See the inset drawing. Cut the plastic tie near
the Upright Wire (63). Be careful not to dam-
age the Upright Wire.
63
74
2
52
70
Hole
Cut
63
Tie
