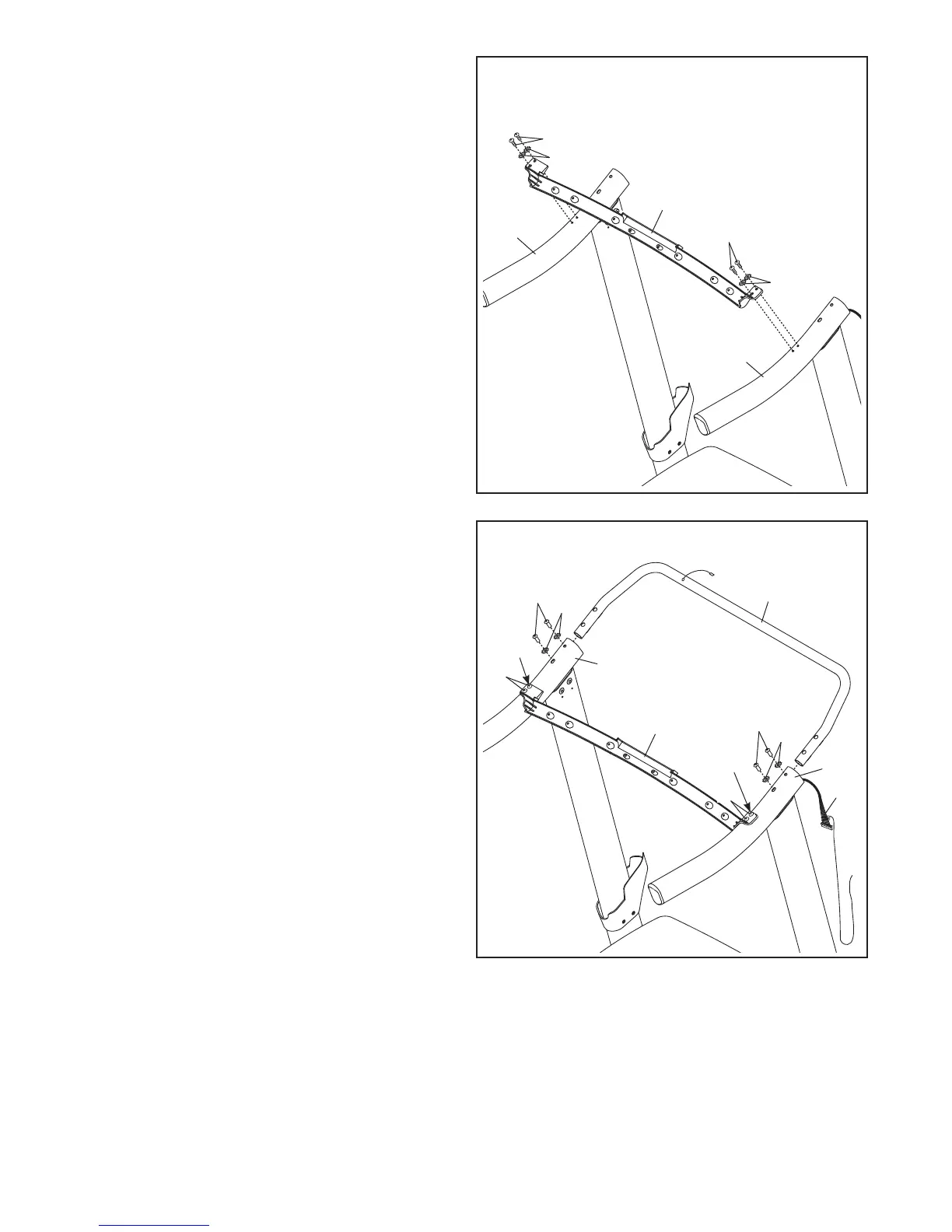

10. IMPORTANT: To avoid damaging the
Crossbar (104), do not use power tools and
do not overtighten the #10 x 3/4" Screws (2).
Orient the Crossbar (104) as shown. Attach the
Crossbar to the Handrails (82, 83) with four #10
x 3/4" Screws (2) and four #10 Star Washers
(12); do not fully tighten the Screws yet.
Note: The #10 Star Washers are slightly
smaller than the 1/4" Star Washers (not
shown).
10
104
12
2
83
82
12
2
11. Insert the Console Frame (102) into the
Handrails (82, 83). Attach the Console Frame
with four 1/4" x 1" Screws (9) and four 1/4" Star
Washers (34); do not tighten the Screws yet.
Be careful not to pinch the Upright Wire (87).
Tighten the indicated #10 x 3/4" Screws (2)
in each end of the Crossbar (104) first; do
not overtighten the Screws. Then, tighten the
other #10 x 3/4" Screws (2) in each end of the
Crossbar.
Tighten the four 1/4" x 1" Screws (9).
11
104
83
102
82
87
34
9
34
9
First
First
2
2
