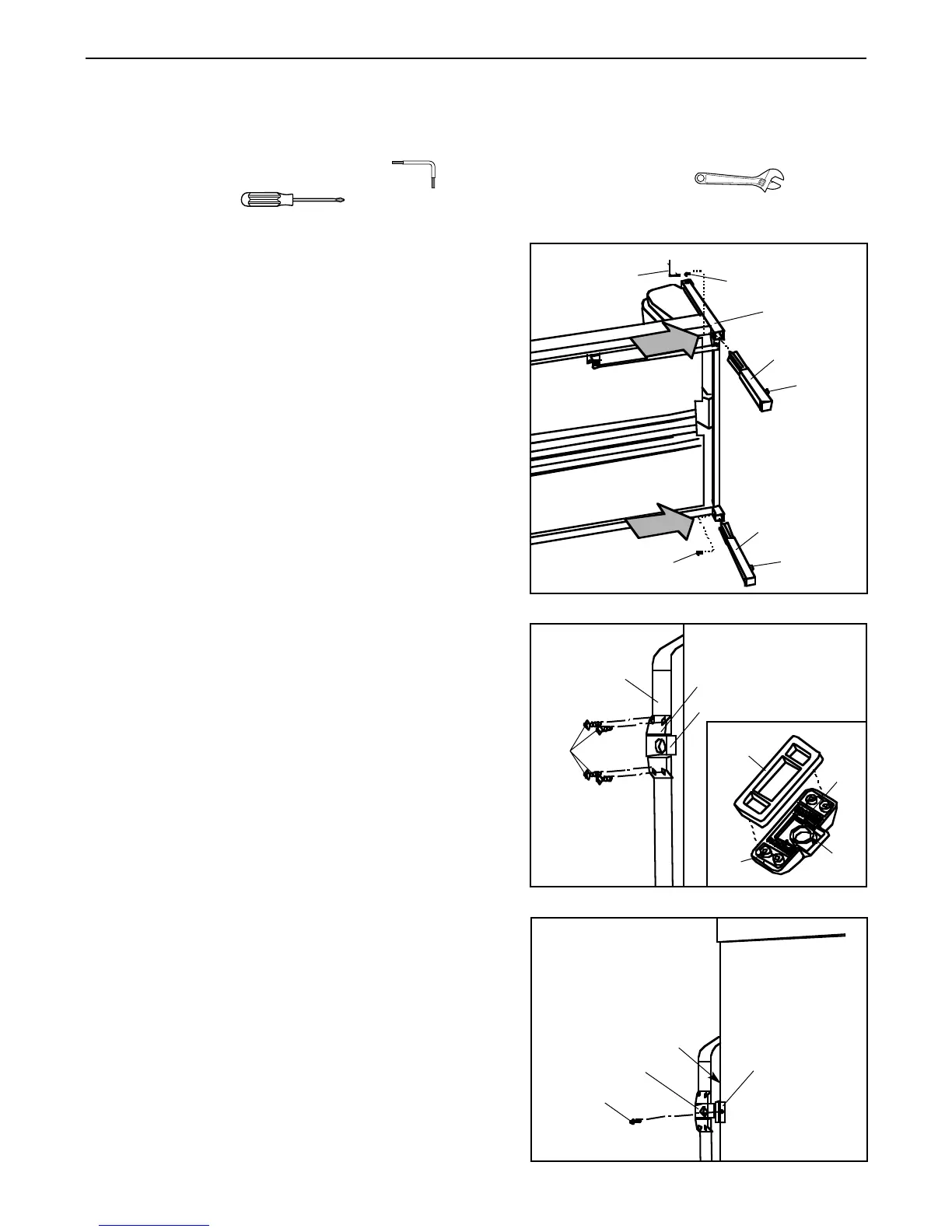

1. Refer to the drawing on page 4 and identify the left
side of the treadmill. With the help of a second person,
carefully lay the treadmill on its left side.
Firmly slide an Extension Leg (99) into each side of the
Base (70) as shown. Make sure that the Extension Legs
are turned so the Base Pads (89) are on the indicated
sides. Using the included Allen Wrench (92), attach each
Extension Leg with an Extension Screw (93).
With the help of a second person, carefully raise the
treadmill to the vertical position so both Extension Legs
(99) are resting flat on the floor.
93
93
92
70
99
99
89
89
1
2. Remove the four Latch Screws (109) from the left
Upright (70).
Without removing the tape from the Latch Bracket (60)
and Latch Spacer (66), hold the Latch Spacer against
the left Upright (70) as shown. Attach the Latch Bracket
and Latch Spacer with the four Latch Screws (109).
Make sure that the Screws are tight, but do not
overtighten them; if the Screws are overtightened,
the Storage Latch (69) will not slide smoothly.
Remove any tape that is still visible.
Note: The inset drawing shows how the Latch Bracket
(60), Latch Springs (68), Storage Latch (69), and Latch
Spacer (66) fit together.
ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove the packing materials. Do not
dispose of the packing materials until assembly is completed.
Assembly requires the included allen wrench , and your own adjustable wrench , and
phillips screwdriver .
66
109
70
69
60, 66
60
69
68
2
3. Remove the indicated Screw (4) from the treadmill
Frame (1). Attach the plastic Catch (5) to the Frame with
the Screw. Note: It may be necessary to slide the
Storage Latch (69) to the left while attaching the Catch.
4
5
1
69
3
5
To Next Page
