8

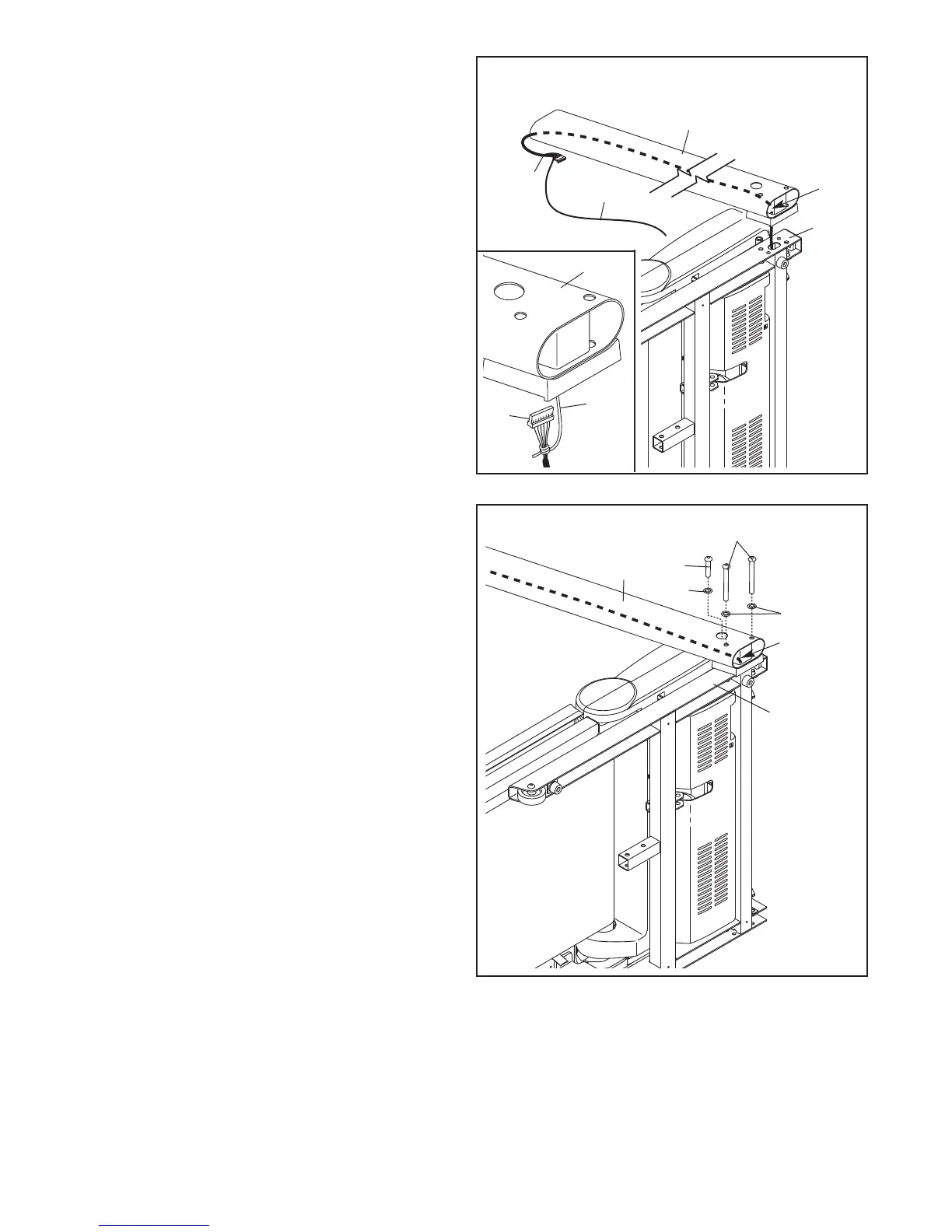

4. Hold the Right Upright (81) against the Base
(91). Be careful not to pinch the Upright Wire
(88). Insert two 3/8" x 4" Bolts (7) and a 3/8" x
1 1/2" Bolt (8) with three 3/8" Star Washers (11)
into the Right Upright.
Partially tighten the 3/8" x 4" Bolts (7) until the
heads of the Bolts touch the Right Upright (81);
do not fully tighten the Bolts yet. Partially
tighten the 3/8" x 1 1/2" Bolt (8).
91
81
88
11
11
8
7
4
3
. Identify the Right Upright (81), which is marked
with a “Right” sticker. Hold the Right Upright
near the Base (91) as shown.
S
ee the inset drawing. Tie the wire tie in the
Right Upright (81) securely around the end of
the Upright Wire (88). Then, pull the other end
of the wire tie until the Upright Wire is routed
c
ompletely through the Right Upright.
Wire Tie
88
8
1
9
1
88
3
Wire
Tie
81
88
To Next Page
