9

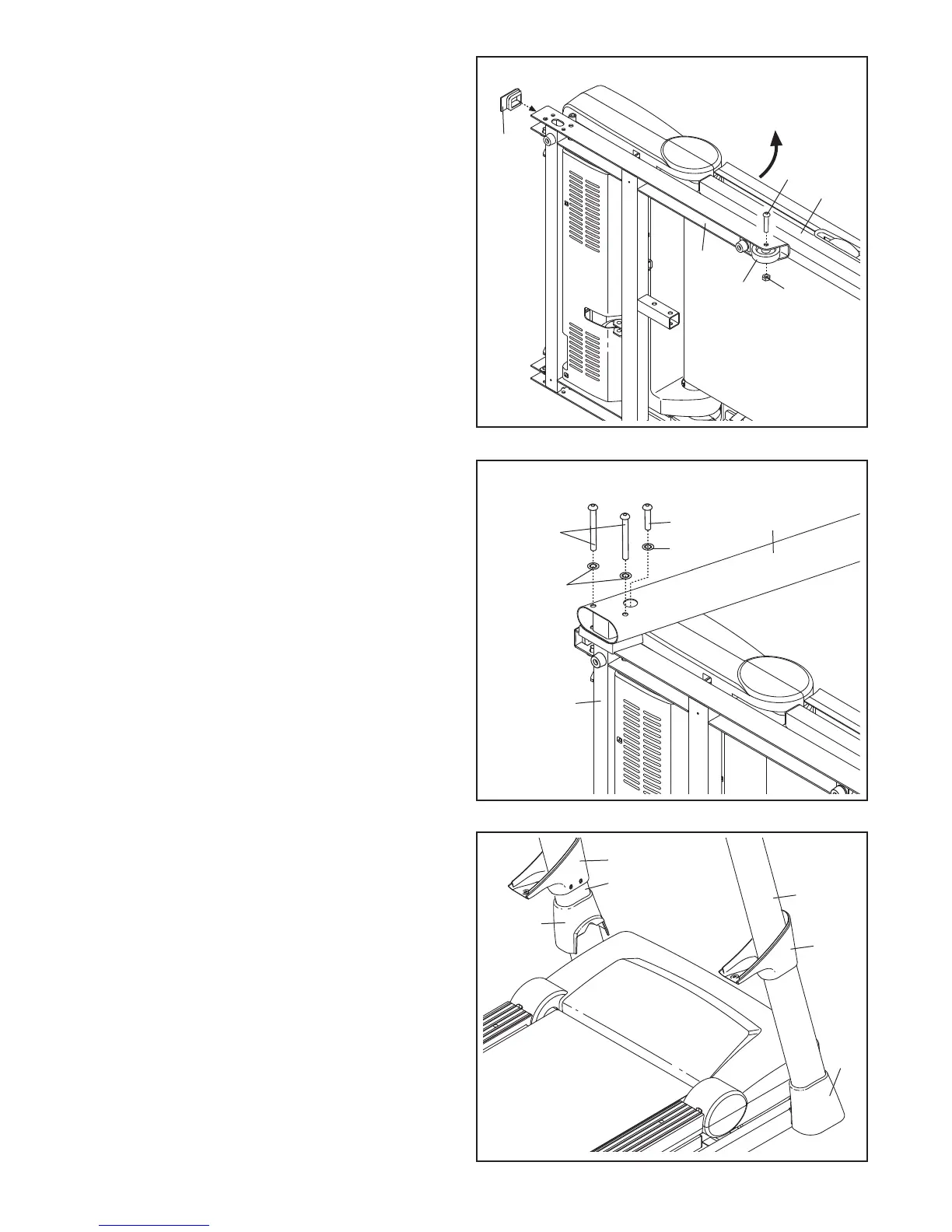

7. Identify the Left Base Cover (86) and the Right
Base Cover (87), which are marked with stick-
ers. Slide the Left Base Cover onto the Left
Upright (80). Slide the Right Base Cover onto
the Right Upright (81).
Identify the Left Upright Cover (78) and the
Right Upright Cover (79), which are marked with
stickers. Slide the Left Upright Cover onto the
Left Upright (80). Slide the Right Upright Cover
onto the Right Upright (81).
87
81
86
79
7
6. Hold the Left Upright (80) against the Base (91).
Insert two 3/8" x 4" Bolts (7) and a 3/8" x 1 1/2"
Bolt (8) with three 3/8" Star Washers (11) into
the Left Upright.
Partially tighten the 3/8" x 4" Bolts (7) until the
heads of the Bolts touch the Left Upright (80);
do not fully tighten the Bolts yet. Partially
tighten the 3/8" x 1 1/2" Bolt (3).
With the help of a second person, tip the tread-
mill so that the Base (91) is flat on the floor.
80
7
91
11
11
8
6
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (53) so that the treadmill is more stable;
d
o not fully fold the Frame yet.
A
ttach a Wheel (93) to the Base (91) with a 3/8"
x 2" Bolt (9) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (110) into the Base (91).
5
9
5
3
10
91
110
93
80
78
