Pro-Form 960 - Page 7

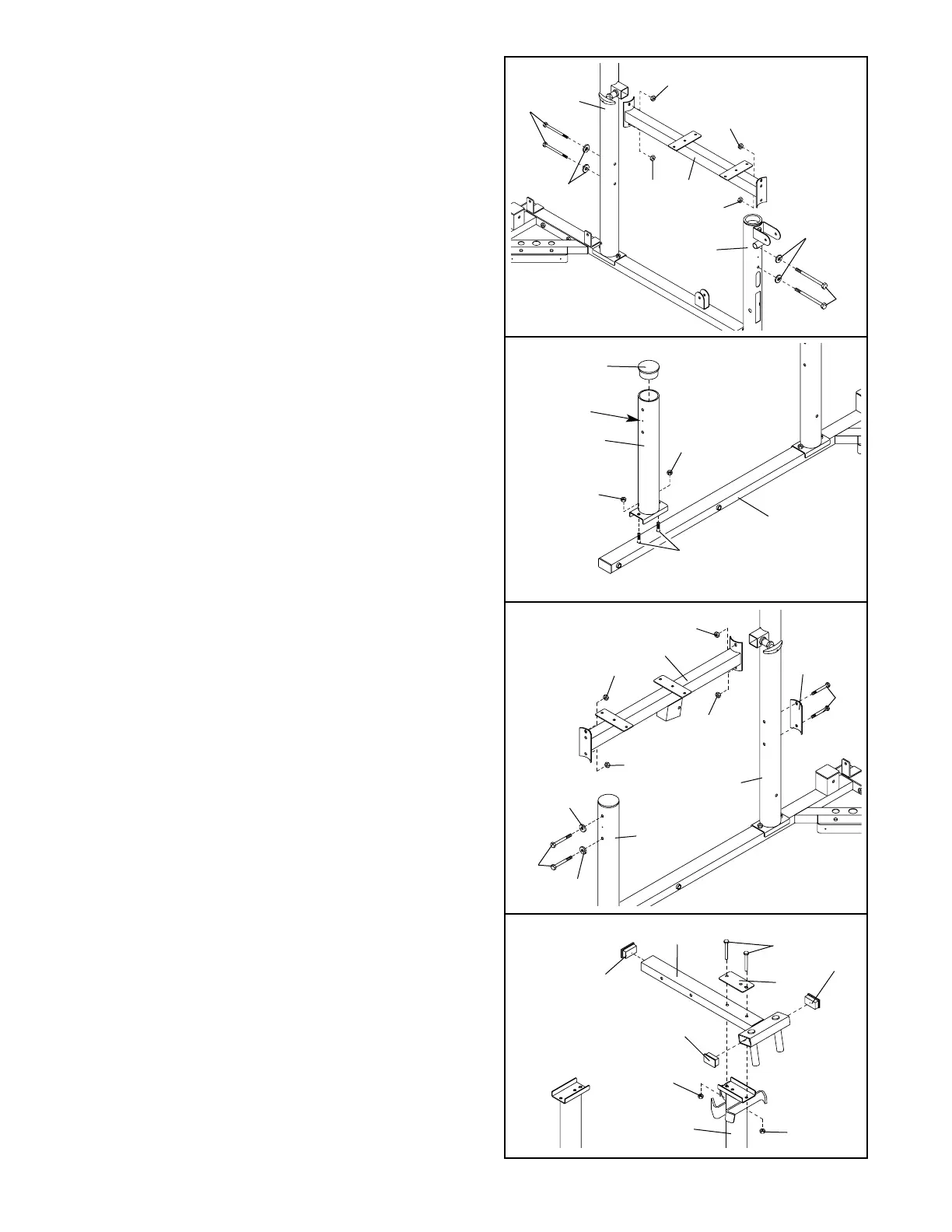

4. Attach the Butterfly Seat Frame (14) to the Butterfly
Upright (1) with two 3/8” x 3 3/4” Bolts (102), two
3/8” Flat Washers (48), and two 3/8” Nylon
Locknuts (50).
Attach the Butterfly Seat Frame (14) to the Butterfly
Front Leg (3) with two 3/8” x 3 3/4” Bolts (102), two
3/8” Flat Washers (48) and two 3/8” Nylon Locknuts
(50).
Do not tighten the Nylon Locknuts (50) yet.
5. Press a 3” Round Inner Cap (78) into the Press
Front Leg (20).
Attach the Press Front Leg (20) to the indicated
3/8” x 2” Carriage Bolts (92) on the Press Base (6)
with two 3/8” Nylon Locknuts (50). Do not tighten
the Nylon Locknuts yet. Make sure that the
Press Front Leg is turned so that the indicated
hole is on the side shown.
6. Attach the Press Seat Frame (7) to the Press
Upright (2) with two 3/8” x 3 3/4” Bolts (102), the
Rounded Support Plate (104), and two 3/8” Nylon
Locknuts (50).
Attach the Press Seat Frame (7) to the Press Front
Leg (20) with two 3/8” x 3 3/4” Bolts (102), two 3/8”
Flat Washers (48), and two 3/8” Nylon Locknuts
(50).
Do not tighten the Nylon Locknuts (50) yet.
5
7
78
50
50
6
20
Hole
4
3
1
102
50
102
50
14
50
48
50
48
6
50
20
7
2
104
48
48
102
50
50
102
50
7
83
87
94
33
83
50
1
50
7. Insert three 1 1/2” x 2 1/2” Inner Caps (83) into the
ends of the Butterfly Top Frame (33).
Attach the Butterfly Top Frame (33) to the Butterfly
Upright (1) with two 3/8” x 2 1/2” Bolts (87), a
Support Plate (94), and two 3/8” Nylon Locknuts
(50). Do not tighten the Nylon Locknuts yet.
83
92
