9

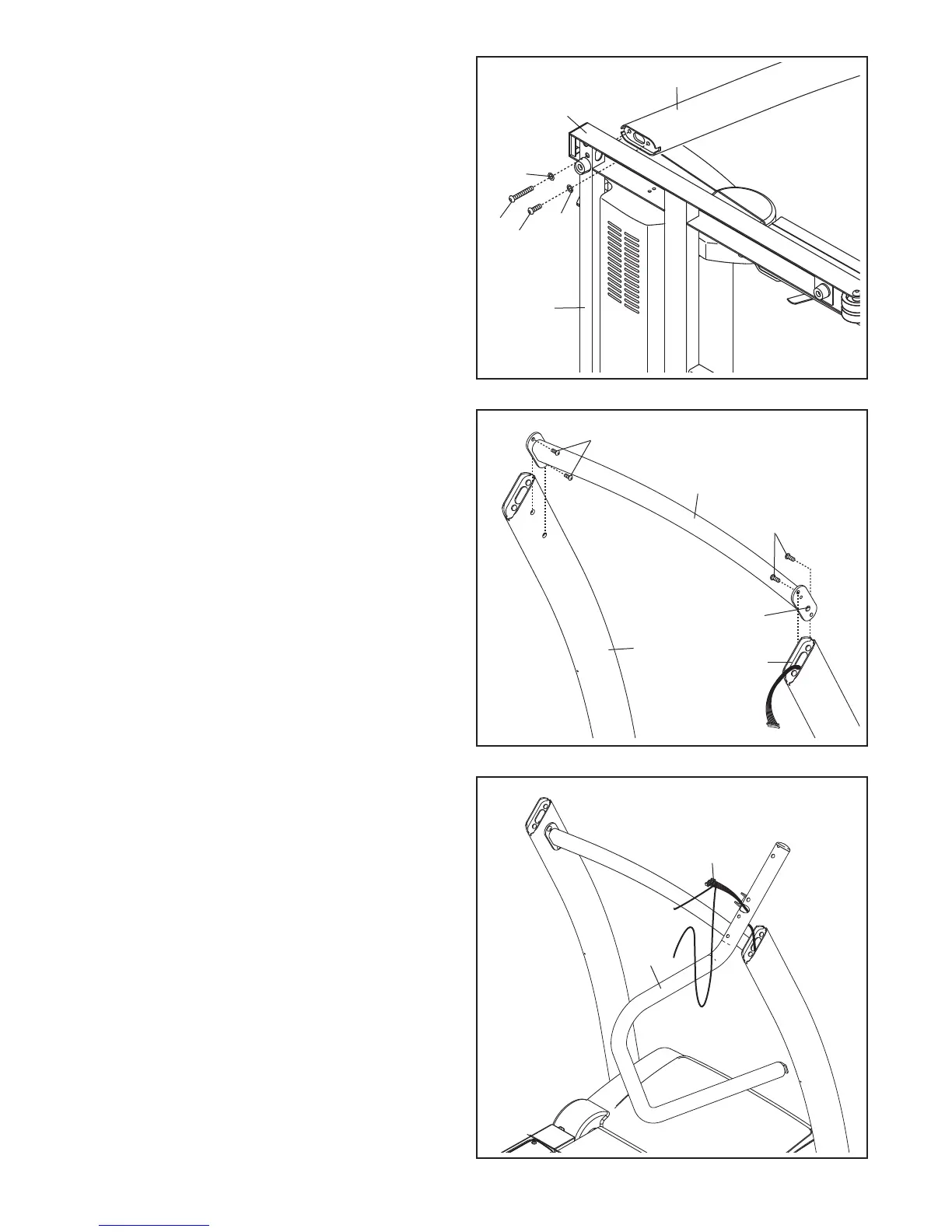

8. Identify the Right Handrail (78), which is marked
with a sticker. Insert the end of the Wire
Harness (84) into the hole in the bottom of the
Right Handrail and out the hole in the top.
84
78
8
7. Orient the Crossbar (82) so that the indicated
bump is in the position shown. (Note: The bump
will be inserted into a hole in the Right Upright
[83].) Attach the Crossbar to the Uprights (81,
83) with four 1/4" x 5/8" Bolts (3); do not fully
tighten the Bolts yet.
81
83
82
Bump
3
3
7
6. Attach the Left Upright (81) to the Base (90) with
a 3/8" x 3 1/2" Patch Bolt (8), a 3/8" x 1 1/2"
Patch Bolt (6), and two 3/8" Star Washers (12)
in the indicated locations. Partially tighten the
P
atch Bolts until the heads of the Patch Bolts
touch the Base; do not fully tighten the Patch
Bolts yet.
W
ith the help of a second person, tip the tread-
mill so that the Base (90) is flat on the floor.
81
90
90
12
12
8
6
6
To Next Page
