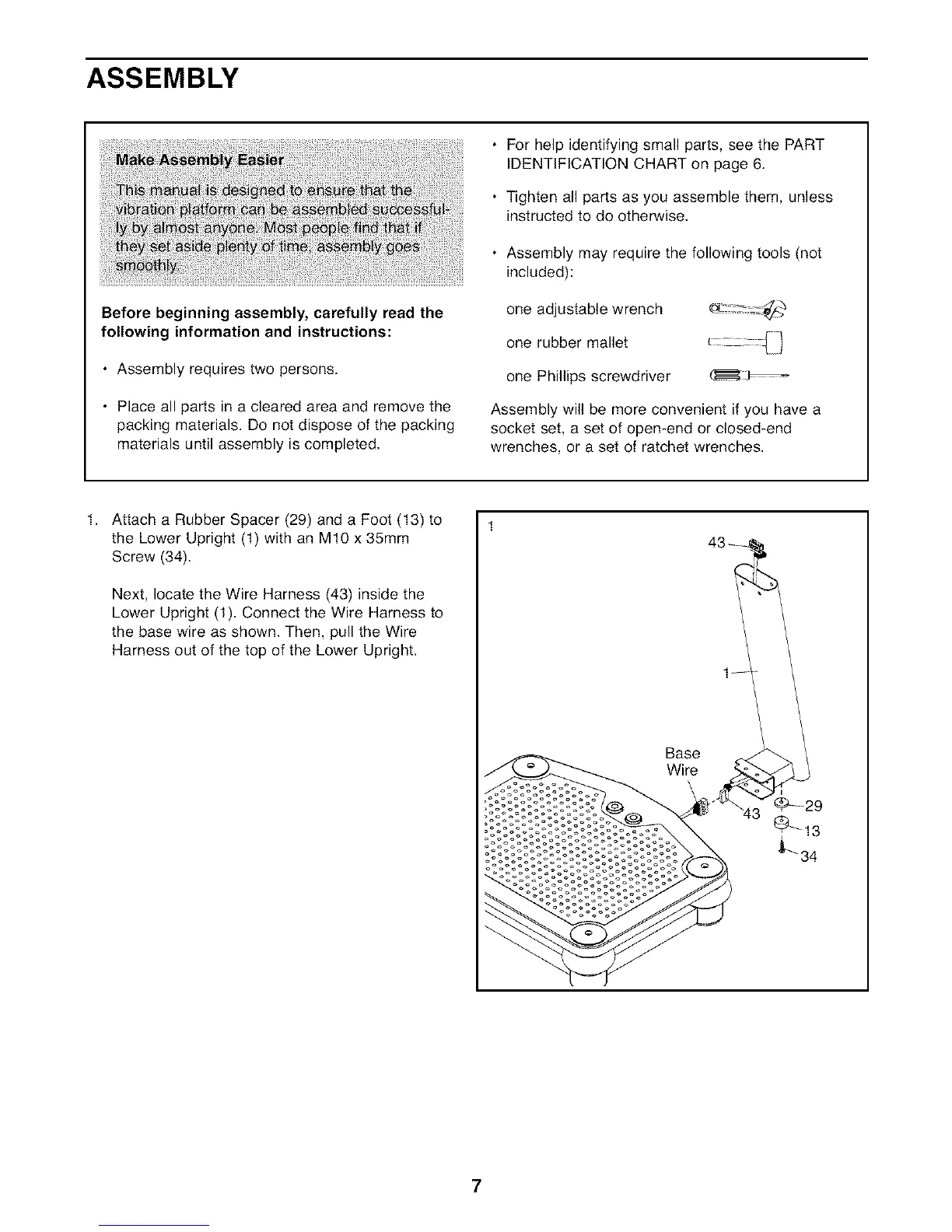

ASSEMBLY
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• For help identifying small parts, see the PART
IDENTIFICATION CHART on page 6.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• Assembly may require the following tools (not
included):
one adjustable wrench
one rubber mallet
one Phillips screwdriver
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
1,
Attach a Rubber Spacer (29) and a Foot (13) to
the Lower Upright (!) with an M!0 x 35mm
Screw (34).
Next, locate the Wire Harness (43) inside the
Lower Upright (!). Connect the Wire Harness to
the base wire as shown. Then, pull the Wire
Harness out of the top of the Lower Upright.
Base
Wire
7
To Next Page
