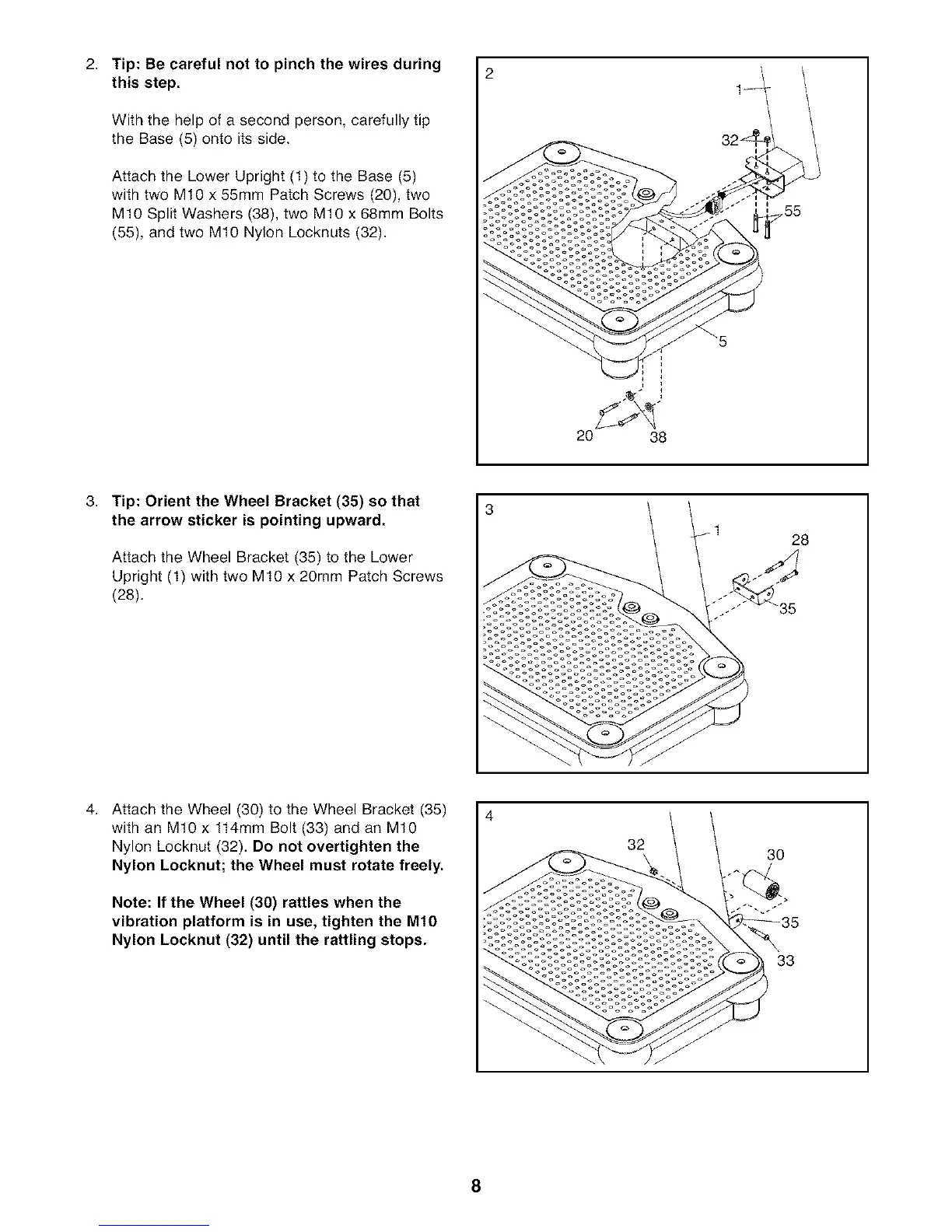

2. Tip: Be careful not to pinch the wires during
this step.
With the help of a second person, carefully tip
the Base (5) onto its side.
Attach the Lower Upright (1) to the Base (5)
with two M10 x 55mm Patch Screws (20), two
M10 Split Washers (38), two M10 x 68ram Bolts
(55), and two M10 Nylon Locknuts (32).
20
38
3. Tip: Orient the Wheel Bracket (35) so that
the arrow sticker is pointing upward.
Attach the Wheel Bracket (35) to the Lower
Upright (1) with two M10 x 20mm Patch Screws
(28).
28
4.
Attach the Wheel (30) to the Wheel Bracket (35)
with an M!0 x 114mm Bolt (33) and an M!0
Nylon Locknut (32). Do not overtighten the
Nylon Locknut; the Wheel must rotate freely.
Note: If the Wheel (30) rattles when the
vibration platform is in use, tighten the M1O
Nylon Locknut (32) until the rattling stops.
32
3O
33
8
