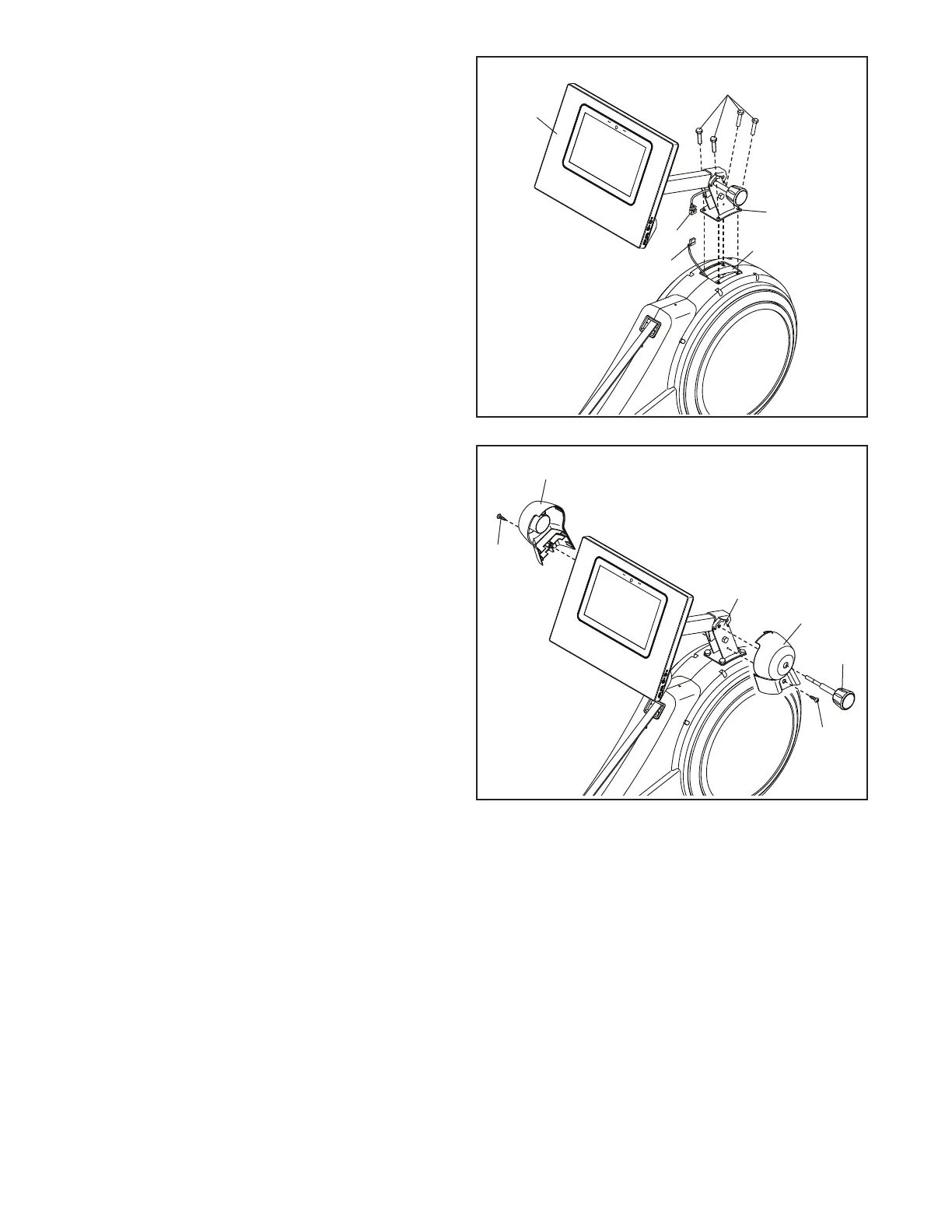

7. Tip: The wire connectors should slide
together easily and snap into place. If they do
not, turn one connector and try again.
While a second person holds the Console (75)
and the Upright (77) near the Frame (1), connect
the Upright Wire (84) to the Main Wire (109).
Tip: Avoid pinching the wires. Attach
the Upright (77) to the Frame (1) with four
M8 x 35mm Screws (82); start all the Screws,
and then tighten them.
7
82
77
1
84
75
Avoid
pinching
the wires
109
8. Loosen and remove the Knob (78) from the
Upright (77).
Next, identify the Right and Left Upright Covers
(80, 81), and orient them as shown.
Press the Right and Left Upright Covers
(80, 81) together around the Upright (77), and
attach them to the Upright with two M4 x 16mm
Screws (68).
Then, insert the Knob (78) into the Right Upright
Cover (80) and tighten it into the Upright (77).
8
81
80
77
68
68
78
