12. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-
mill. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking belt (see
page 19).

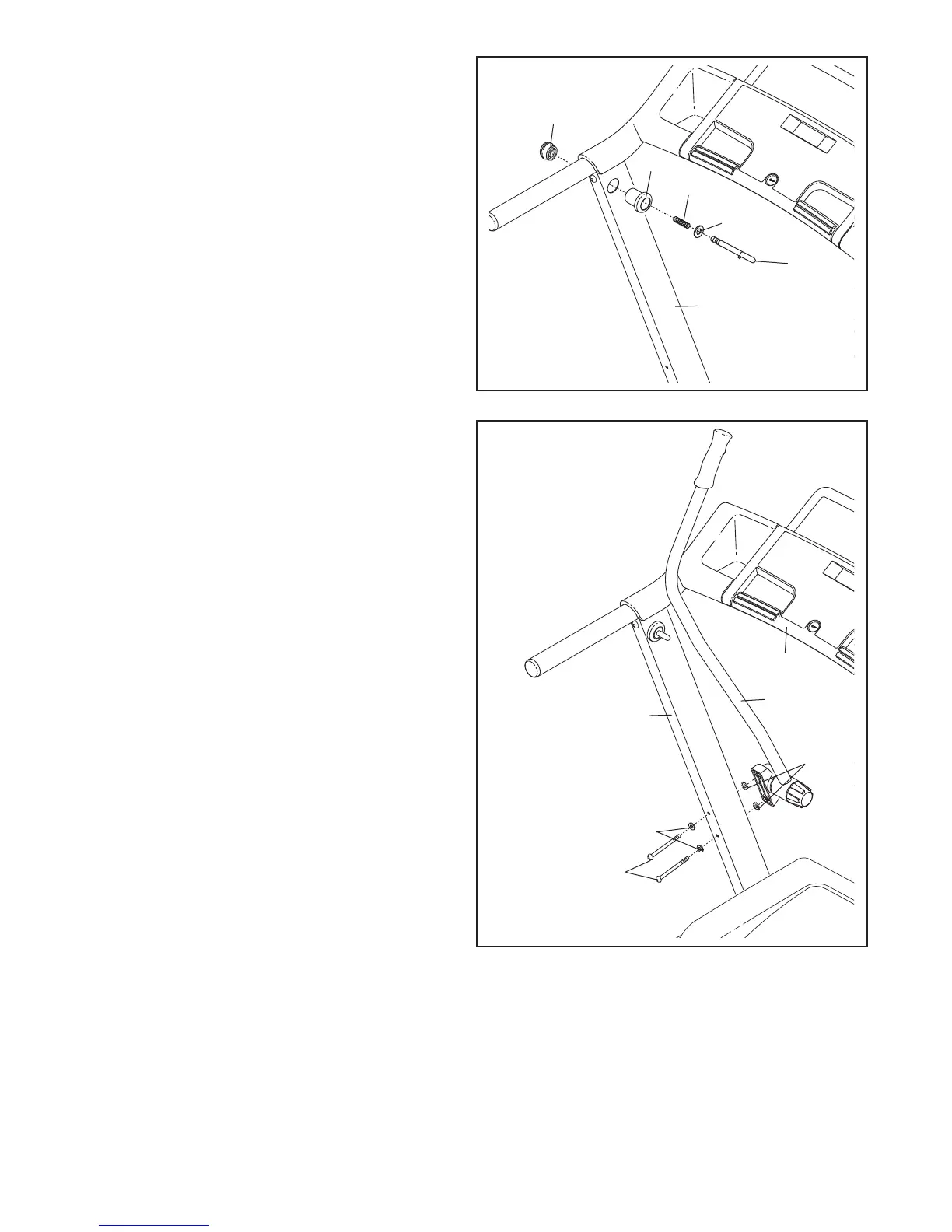

10. Press the Latch Insert (70) into the Left Upright
(
73).
Remove the knob from the pin.
Make sure that
the collar and the spring are on the pin.
I
nsert the pin into the Latch Insert (70), and
tighten the knob back onto the pin.
Knob
70
1
0
73
11. Attach the Left Crosswalk Arm (71) to the Left
Upright (73) with two M10 Star Washers (8), two
1/4" Washers (9), and two 1/4" x 3 1/2" Bolts (4).
Make sure that the Left Crosswalk Arm is on
the side of the Console (87) shown.
Attach the Right Crosswalk Arm (not shown)
in the same way.
4
9
11
73
71
8
Spring
Pin
Collar
87
