7

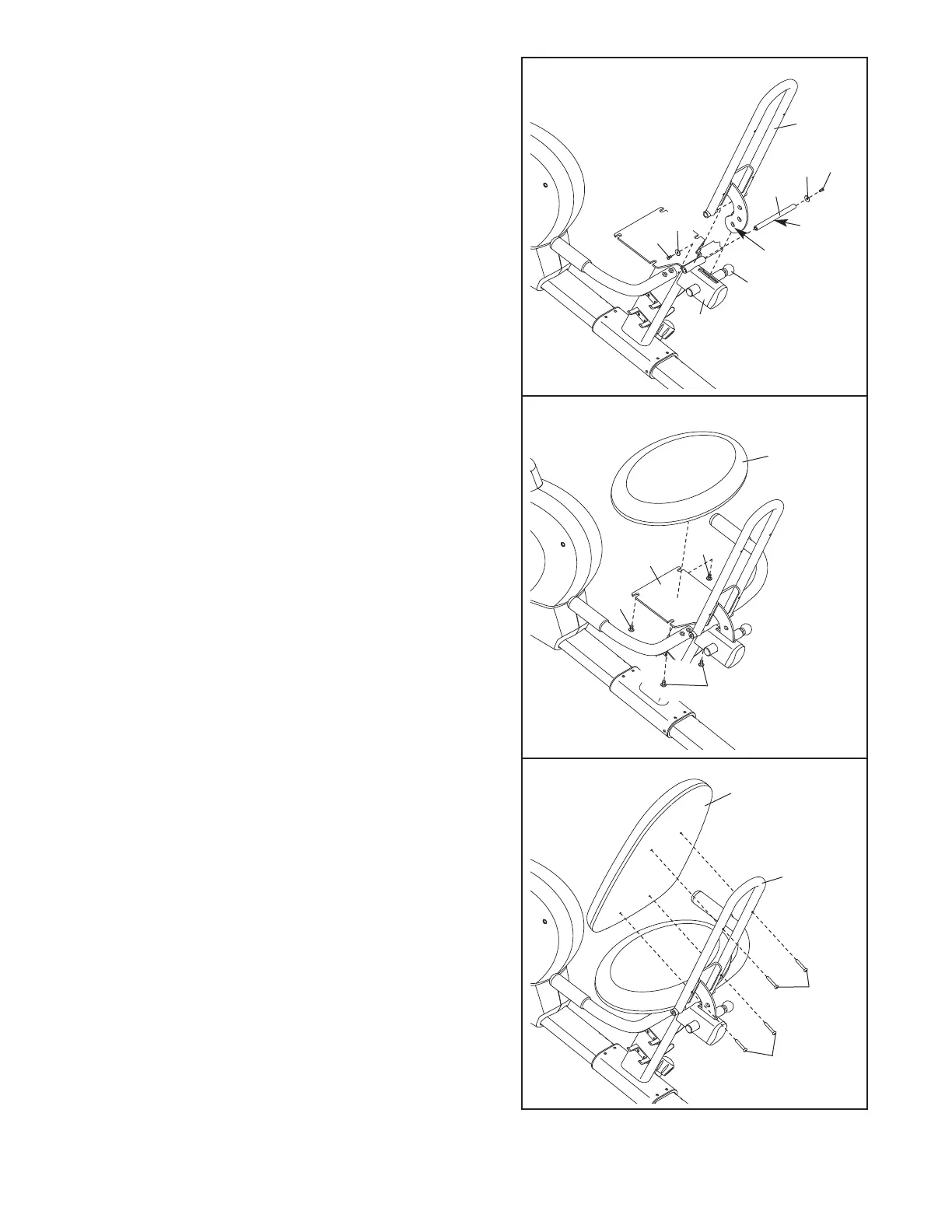

9. Attach the Seat (14) to the Seat Carriage (3) with four
M6 x 20mm Button Screws (52). Note: The Button
Screws may be preattached to the underside of the
Seat.
10. Attach the Backrest (15) to the Backrest Bracket (13)
with four M6 x 38mm Button Screws (46). Note: The
Button Screws may be preattached to the Backrest.
8. Apply a generous amount of the included grease to
the Pivot Axle (40). Then, orient the Backrest Bracket
(13) near the Seat Carriage (3) as shown.
P
ull the Backrest Knob (32) and insert the Backrest
Bracket (13) into the Seat Carriage (3). Then, release
the Backrest Knob into one of the adjustment holes in
the Backrest Bracket. Make sure the Backrest Knob
i
s engaged in one of the adjustment holes.
Slide the Pivot Axle (40) through the Backrest Bracket
(13) and the welded tube on the Seat Carriage (3).
Then, tighten an M8 x 15mm Screw (42) with an
M8 x 18mm Washer (41) into each end of the Pivot
Axle (40).
8
9
10
42
Adjustment
Hole
Grease
13
3
3
41
40
42
13
41
14
15
46
46
52
52
52
32
