8
11
12
13
4
6
6
1

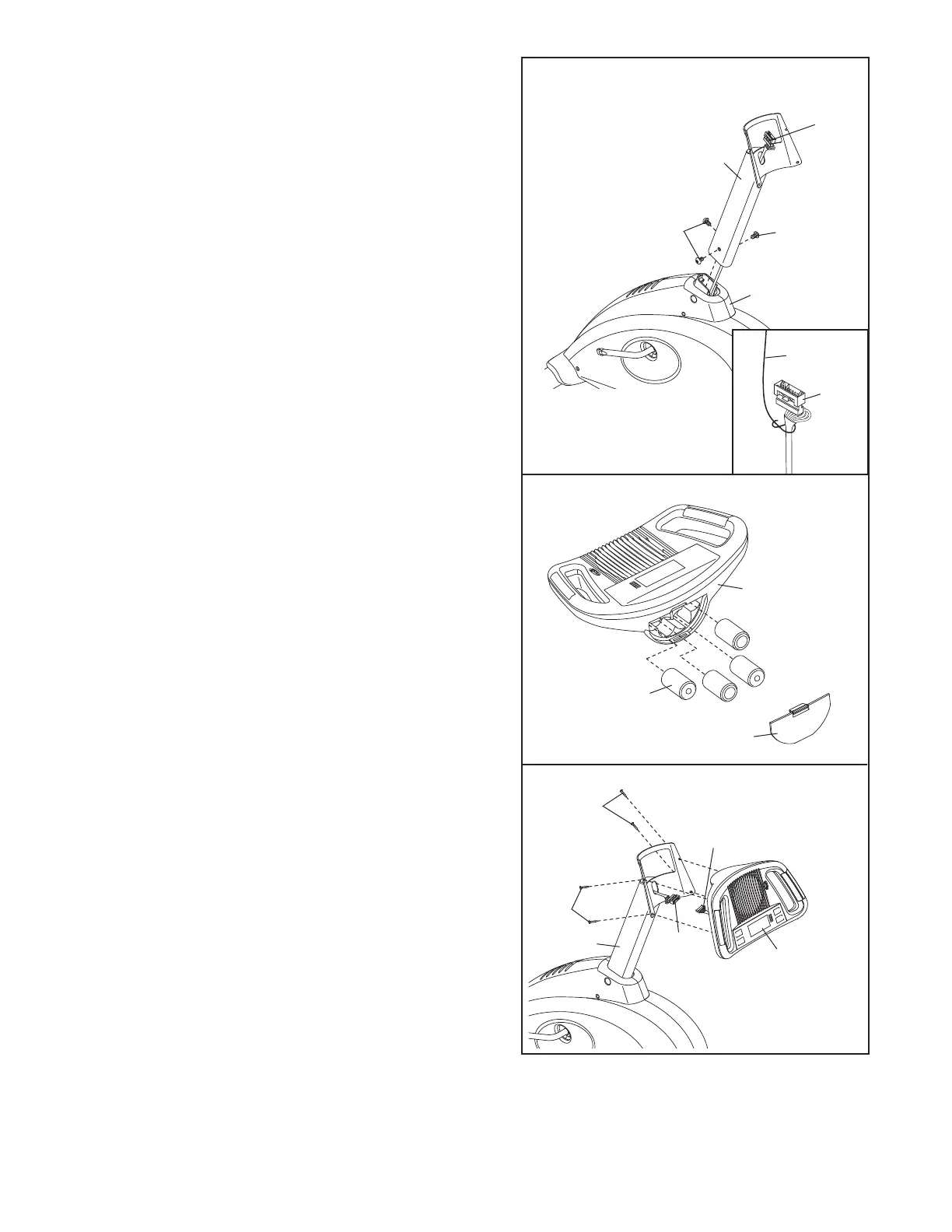

11. Have another person hold the Upright (4) near the
front of the Frame (1). Locate the wire tie (see the
inset drawing) in the Upright. Tie the lower end of the
w
ire tie to the Wire Harness (28). Next, pull the upper
end of the wire tie upward out of the top of the
Upright. Then, untie and discard the wire tie.
Attach the Upright (4) to the Frame (1) with three
M8 x 15mm Screws (42). Be careful to avoid pinch-
ing the Wire Harness (28).
13.While another person holds the Console (6) near the
Upright (4), connect the console wire harness to the
Wire Harness (28). Insert the excess console wire har-
ness into the Upright.
Attach the Console (6) to the Upright (4) with four
M4 x 16mm Screws (64).
Console
Wire
Harness
12.The Console (6) requires four “D” batteries (not includ-
ed); alkaline batteries are recommended. Press the
tab on the battery cover and remove it. Insert four bat-
teries into the Console as shown. Make sure that the
batteries are oriented as shown by the markings
on the battery cover. Then, reattach the battery
cover.
42
64
64
42
Batteries
Avoid pinching the
Wire Harness (28)
during this step
Battery Cover
28
28
4
28
Wire Tie
To Next Page
