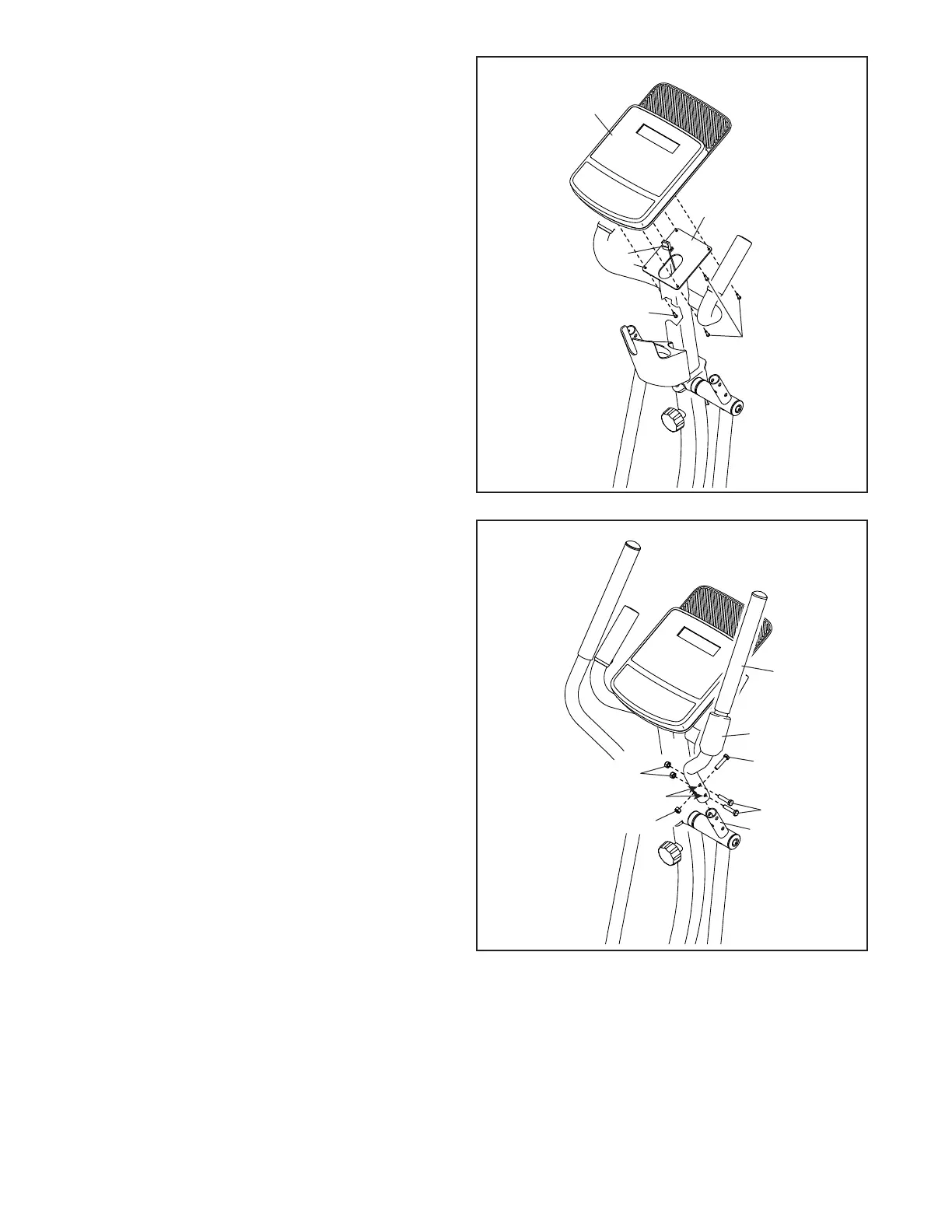

13. Untie and discard the wire tie on the Upper
Wire (94).
While a second person holds the Console (4)
near the Pivot Bracket (3), plug the Upper Wire
(94) into the receptacle on the Console. Tip: The
wire connector should slide in easily and
snap into place with an audible click. If it
does not, turn the connector and try again.
Insert the excess wire into the Pivot Bracket (3).
Tip: Avoid pinching the wires. Attach the
Console (4) to the Pivot Bracket (3) with four
M4 x 16mm Screws (84); start all the Screws,
and then tighten them.
94
14
102
102
7
8
78
68
68
14. Identify the Right Upper Body Arm (7).
Orient an Upper Body Cover (78) as shown,
and slide it upward onto the Right Upper Body
Arm (7).
Attach the Right Upper Body Arm (7) to the Right
Pivot Leg (8) with three M8 x 38mm Hex Bolts
(102) and three M8 Locknuts (68); start all the
Hex Bolts, and then tighten them. Make sure
that the Locknuts are inside of the hexagonal
holes (H).
Then, slide the Upper Body Cover (78)
downward onto the Right Pivot Leg (8).
Repeat this step on the other side of the
hybrid trainer.
