11
9

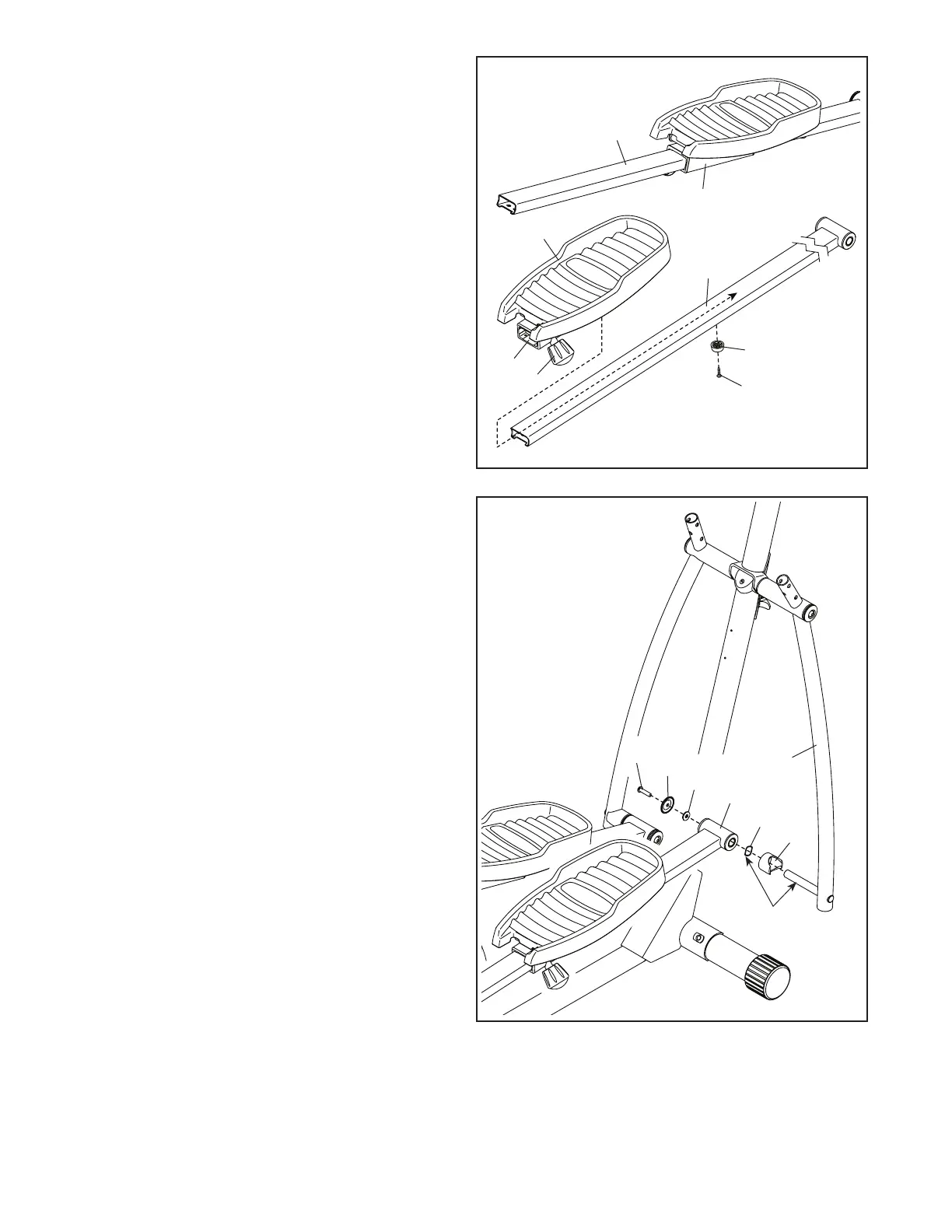

9. Identify the Right Pedal Carriage (64), which is
attached to one of the Pedals (67). In addition,
identify the Right Pedal Leg (71).
Loosen the Pedal Knob (70) on the right side of
the Right Pedal Carriage (64), slide the Right
Pedal Carriage as far as possible onto the
Right Pedal Leg (71), and then tighten the Pedal
Knob.
Then, attach a Small Bumper (69) to the under-
side of the Right Pedal Leg (71) with an M4 x
16mm Screw (47).
Repeat this step with the Left Pedal Carriage
(65), the Left Pedal Leg (79), and the other
Small Bumper (not shown).
69
67
65
71
79
64
47
70
10
10. Apply a generous amount of grease to the axle
on the Right Upper Body Leg (86) and to a Wave
Washer (81).
Next, slide a Leg Bushing (13), the Wave
Washer (81), and the Right Pedal Leg (71) onto
the axle.
Then, tighten an M8 x 20mm Screw (34), a Pivot
Cover (90), and an M8 Large Washer (54) into
the axle.
Repeat this step on the other side of the
hybrid trainer.
86
54
Grease
71
90
13
81
34
To Next Page
