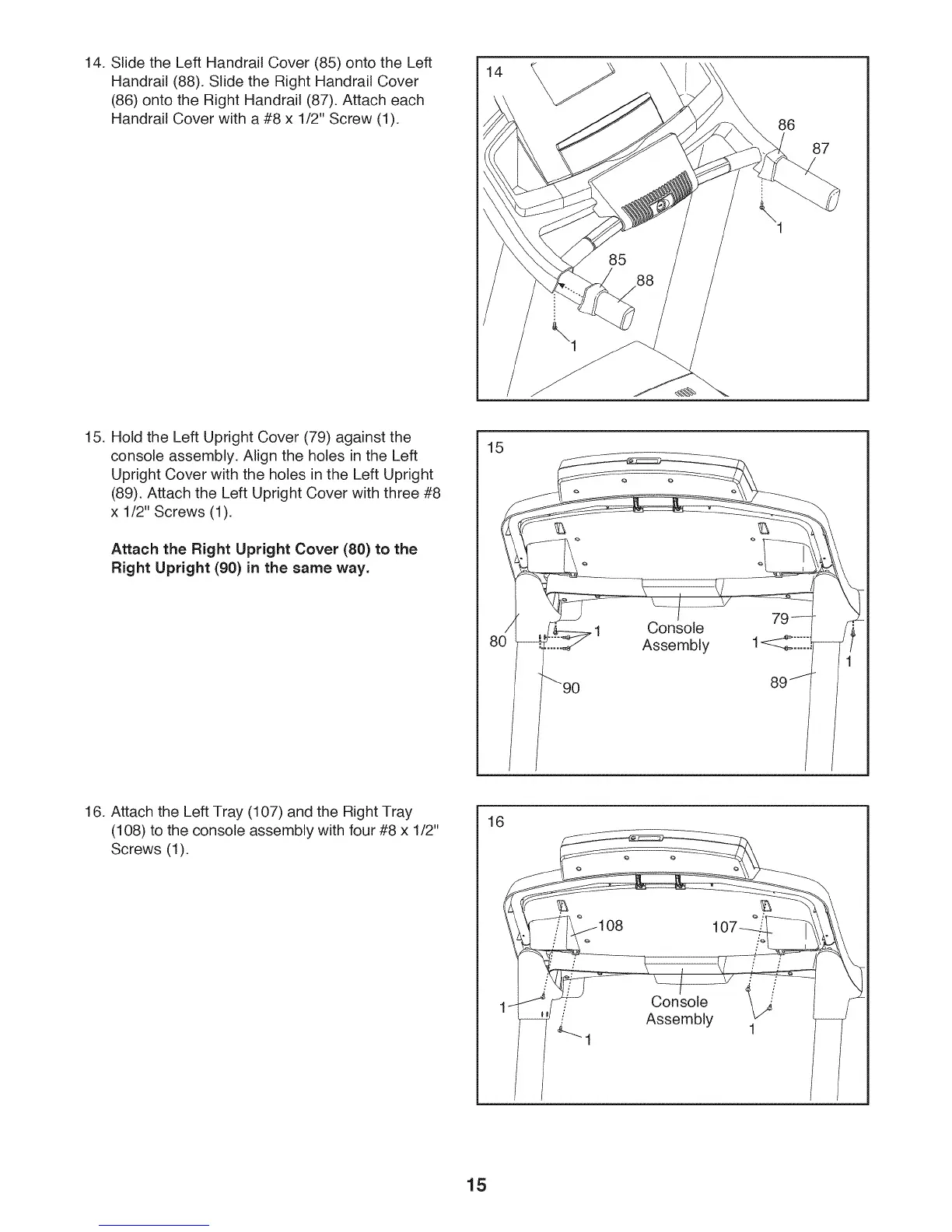

14. Slide the Left Handrail Cover (85) onto the Left
Handrail (88). Slide the Right Handrail Cover
(86) onto the Right Handrail (87). Attach each
Handrail Cover with a #8 x 1/2" Screw (1).
14
86
87
15. Hold the Left Upright Cover (79) against the
console assembly. Align the holes in the Left
Upright Cover with the holes in the Left Upright
(89). Attach the Left Upright Cover with three #8
x 1/2" Screws (1).
Attach the Right Upright Cover (80) to the
Right Upright (90) in the same way.
15
Console
Assembly 1<:::_Z
16. Attach the Left Tray (107) and the Right Tray
(108) to the console assembly with four #8 x 1/2"
Screws (1).
16
Console
.,' Assembly
15
To Next Page
