10
6
4
97
1
7
7
83
81
69

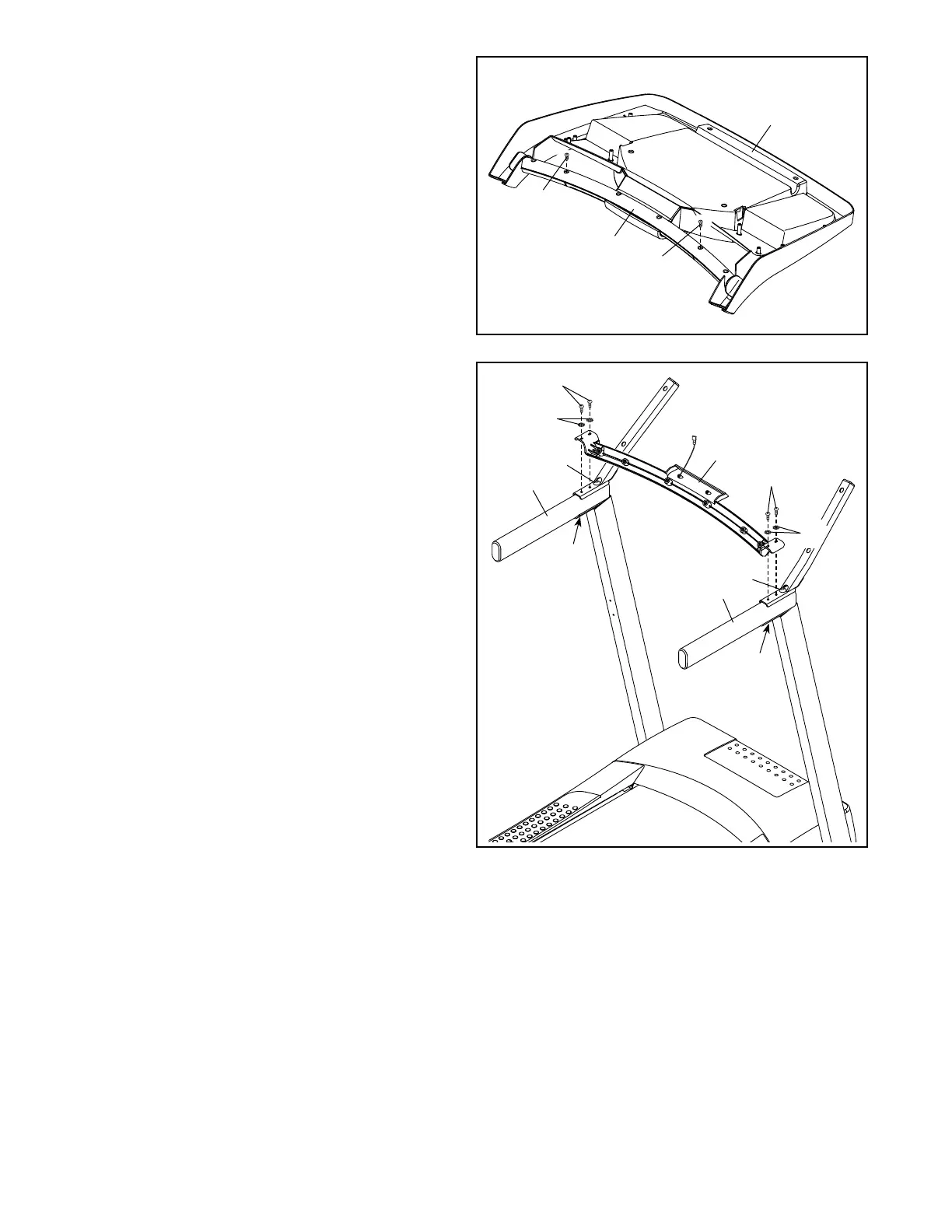

6. IMPORTANT: To avoid damaging the Pulse
Crossbar (97), do not use power tools and do
not overtighten the #10 x 3/4" Screws (7).
Orient the Pulse Crossbar (97) as shown.
Attach the Pulse Crossbar to the Left and Right
Handrails (69, 81) with four #10 x 3/4" Screws
(7) and four #10 Star Washers (83); start all
four Screws, and then tighten them.
Then, firmly tighten the two 3/8" x 2 3/4"
Screws (1) and the two 5/16" x 3/4" Screws (4).
4
1
5
5. Set the console assembly (B) face down on
a soft surface to avoid scratching the console
assembly.
Remove and discard the two indicated screws
(C). Then, remove the Pulse Crossbar (97).
C
97
C
83
B
