11

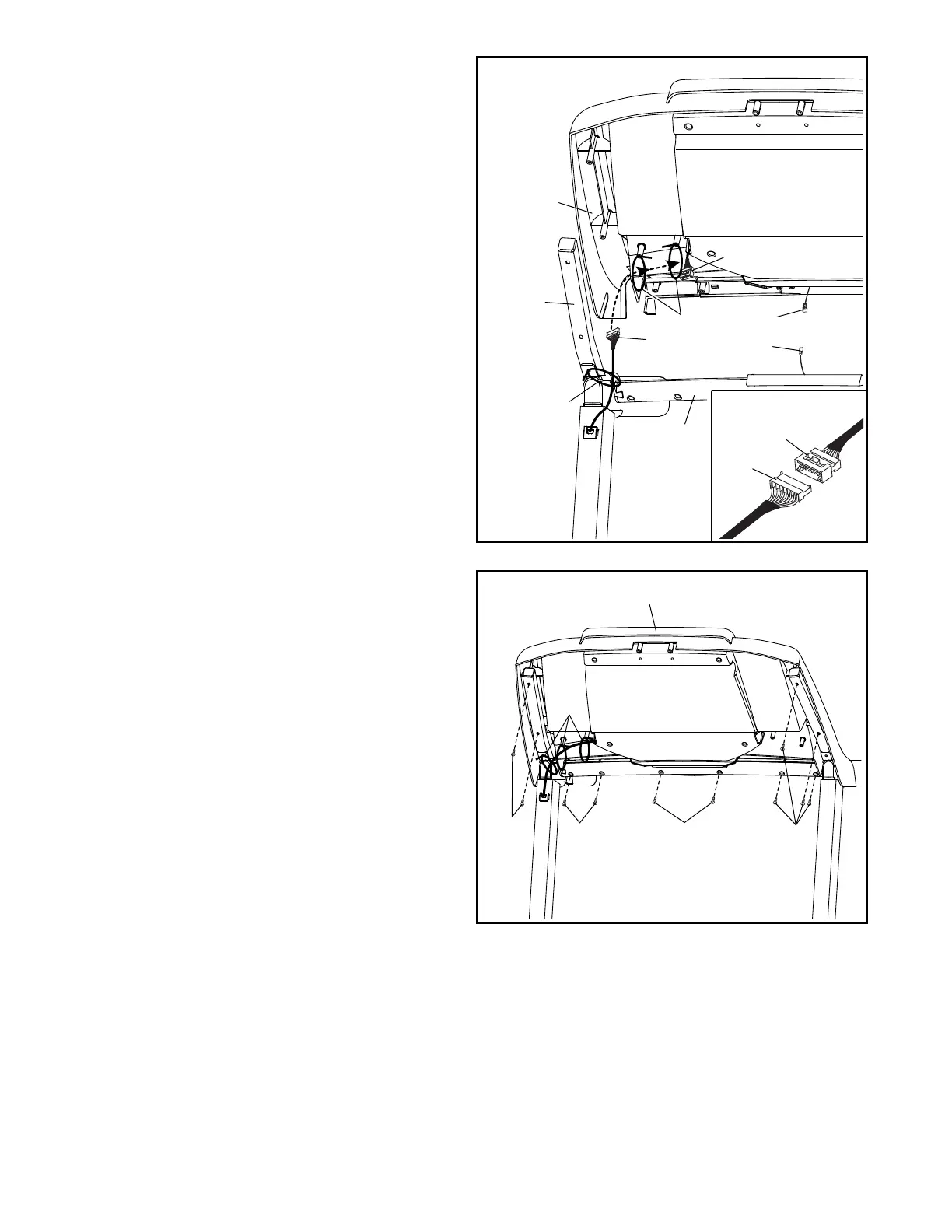

7. With the help of a second person, hold the con-
sole assembly (B) near the Right Handrail (95)
(only one side is shown).
Insert the Upright Wire (71) through the three
looped Wire Ties (75) under the console
assembly.
Next, connect the ground wire (D) to the Console
Ground Wire (80) on the Pulse Crossbar (97).
See the inset drawing. Connect the Upright
Wire (71) to the console wire (E). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER.
71
80
97
75
75
7
71
75
8
79
79
79
79
8. Attach the console assembly (B) with ten #8
x 3/4" Screws (79); start all ten Screws, and
then tighten them. Make sure that no wires
are pinched.
Next, insert the wires into the console assembly.
Then, tighten the three Wire Ties (75) around the
wire and cut off the ends of the Wire Ties.
95
B
D
E
E
B
To Next Page
