13

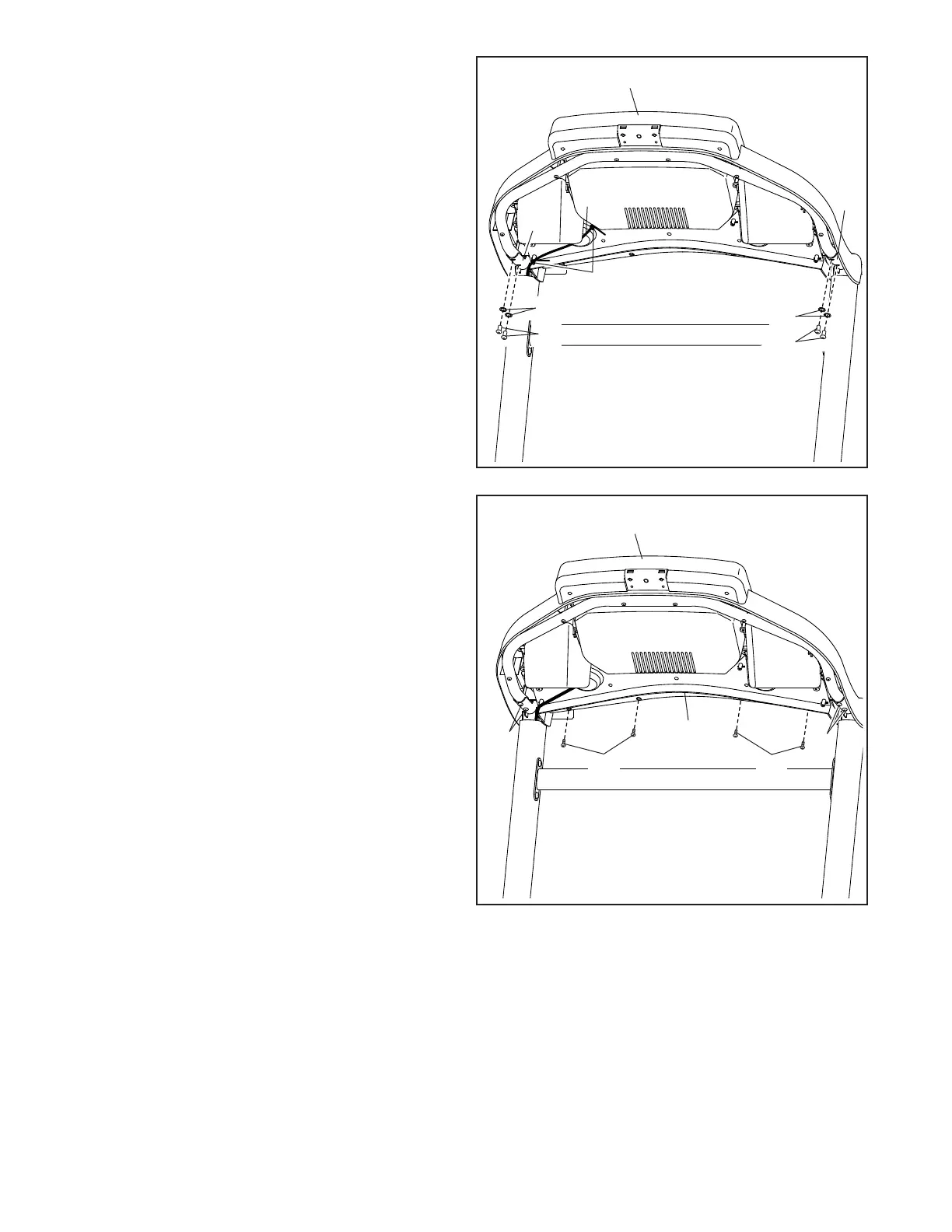

12. Set the console assembly (H) on the
Handrails (72). Make sure that no wires are
pinched.
Insert the excess Upright Wire (80) into the con-
sole assembly (H). Then, tighten the two ties (J)
around the Upright Wire and cut off the ends of
the ties.
Attach the console assembly (H) with the four
5/16" x 3/4" Screws (13) that you removed in
step 9 and four 5/16" Star Washers (7); do not
tighten the Screws yet.
12
H
J
13
7
13
7
80
72
72
13. Attach the Pulse Crossbar (75) to the console
assembly (H) with four #8 x 3/4" Screws (11);
start all four Screws, and then tighten them.
Do not overtighten the Screws.
Firmly tighten the four 5/16" x 3/4" Screws
(13).
13
H
13
75
11
11
13
To Next Page
