10

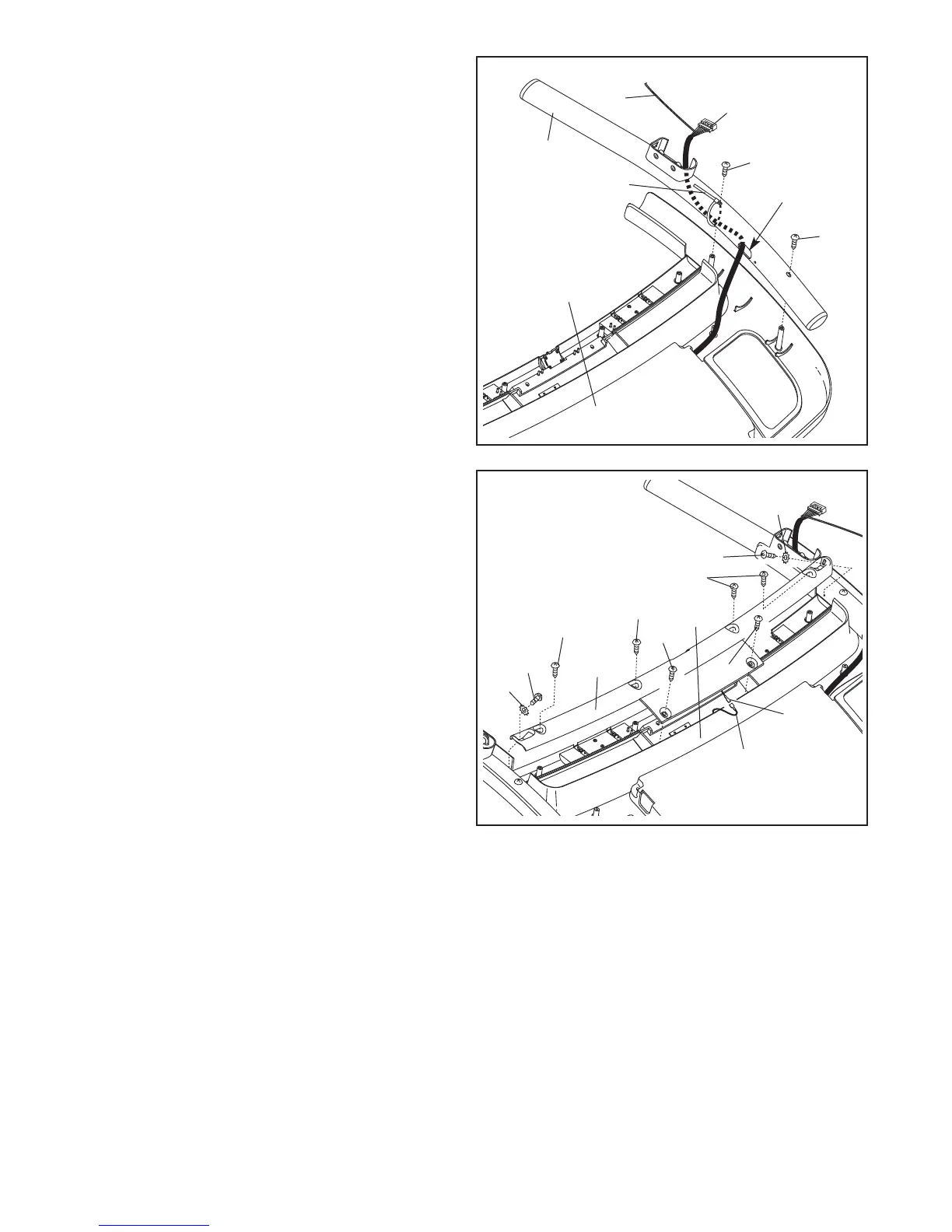

9. Identify the Right Handrail (90), which has a
large hole in the location shown. Hold the Right
H
andrail near the Console (87).
N
ext, insert the tie on the console wire into the
large hole in the Right Handrail (90) and out of
the top as shown. Insert the included plastic tie
through the holes in the Right Handrail as
shown. Make sure the plastic tie holds the con-
sole wire to the near side. Tighten the plastic tie.
Attach the Right Handrail with two M4.2 x 19mm
Screws (1).
Make sure that no wires are
pinched. Start both Screws before tightening
them; do not overtighten the Screws.
Remove the plastic tie.
Attach the Left Handrail (not shown) to the
Console (87) in the same way. Note: There are
no wires on the left side of the Console.
9
0
Tie
9
1
1
L
arge Hole
C
onsole
W
ire
Plastic Tie
87
10. Hold the Pulse Support (109) near the Console
Base (88). Connect the ground wire from the
Console Base to the Console Ground Wire (115)
from the Pulse Support. Set the Pulse Support
on the Console Base and insert the ground
wires into the Console Base. Make sure that no
wires are pinched.
Tighten two M4 x 20mm Screws (3) with two
M4.2 Star Washers (70) into the Pulse Support
(109).
Tighten the four longer M4.2 x 16mm Screws
(12) and the two M5 x 15mm Screws (64) from
step 8 into the Pulse Support (109) and Console
Base (88). Start all six Screws before tighten-
ing them.
3
70
12
Ground
Wire
64
64
70
12
12
10
88
109
115
3
To Next Page
