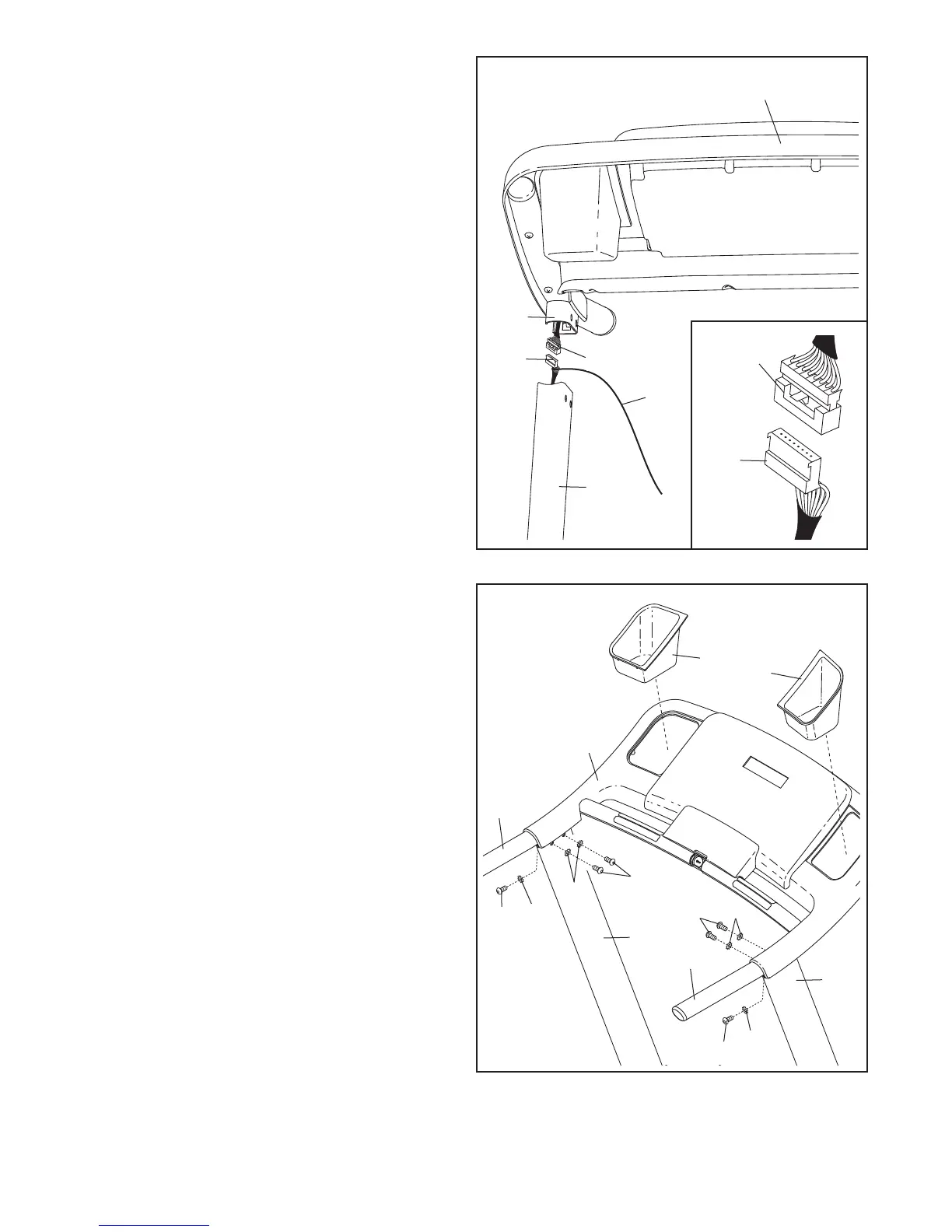

11. Have a second person hold the console assem-
b
ly near the Right Upright (78). Remove the long
tie from the Upright Wire (77) and the tie from the
console wire.
C
onnect the Upright Wire (77) to the console
wire.
See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON.
Then, insert the connectors into
the Right Upright (78).
Set the console assembly on the Right Upright
(78) and the Left Upright (not shown). Make sure
that no wires are pinched.
78
Console Assembly
Console Wire
Long
Tie
77
11
12. Finger tighten three M8 x 25mm Bolts (6) with
three M8 Star Washers (10) into the Left Upright
(73) and the Left Handrail (89).
Next, finger tighten three M8 x 25mm Bolts (6)
with three M8 Star Washers (10) into the Right
Upright (78) and the Right Handrail (90). Then,
tighten all six Bolts.
See steps 5 and 7. Tighten the four M10 x
96mm Bolts (5).
Press the Left Accessory Tray (110) and Right
Accessory Tray (111) into the Console Base
(88).
6
6
6
10
10
88
110
111
73
89
90
78
10
10
12
77
90
Console
Wire
6
To Next Page
