18
11Frame
21Rear Frame
31Front Stabilizer
41Rear Stabilizer
51Backrest
61Handlebar
71Seat Frame
81Bottle Holder
91Left Shield
10 1 Right Shield
11 2 Stabilizer Cap
12 1 Seat
13 1 Upright
14 1 Front Bushing
15 1 Rear Bushing
16 1 Console
17 1 Adjustment Knob
18 2 Wheel
19 2 Wheel Cap
20 1 Frame Pad
21 1 Frame Stop
22 1 Reed Switch Clamp
23 1 C-magnet Bracket
24 1 Left Pedal
25 1 Left Pedal Strap
26 1 Right Pedal
27 1 Right Pedal Strap
28 1 Resistance Motor
29 1 Flywheel Axle
30 1 Belt
31 1 Pulley/Crank
32 1 C-magnet
33 3 M8 x 25mm Button Screw
34 1 Flywheel
35 1 Crank Bearing Assembly
36 1 Upper Wire Harness
37 2 Bearing
38 1 Magnet
39 2 Tension Bolt
40 1 Tension Bracket
41 1 M8 Washer
42 1 Flywheel Washer
43 1 Reed Switch/Wire
44 2 Handlebar Cap
45 3 M4 x 25mm Screw
46 1 Resistance Cable
47 1 Return Spring
48 4 M6 x 38mm Button Screw
49 4 M6 x 42mm Button Screw
50 3 M4 x 16mm Flat Head Screw
51 4 M10 x 75mm Carriage Bolt
52 2 M4 x 22mm Screw
53 1 5mm Spacer
54 2 M8 x 70mm Button Bolt
55 8 M6 Washer
56 1 M8 x 20mm Button Bolt
57 16 M4 x 16mm Screw
58 4 M5 Washer
59 5 M8 Split Washer
60 5 M8 Nylon Locknut
61 4 M6 Nut
62 2 M8 Jam Nut
63 4 M10 Nylon Locknut
64 1 M6 x 38mm Bolt
65 1 Lower Wire Harness
*–Userʼs Manual
*–Hex Key
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated.

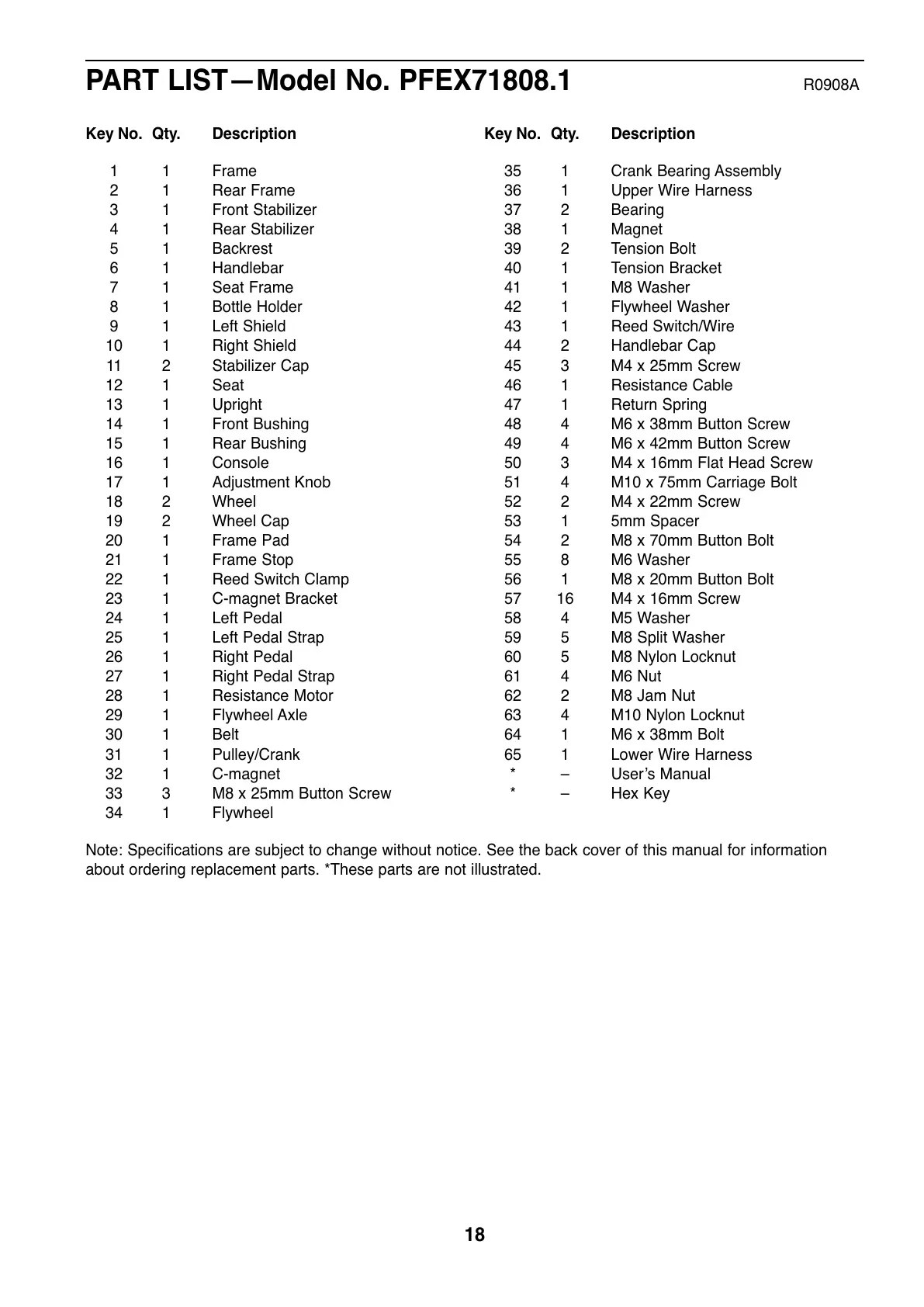

PART LIST—Model No. PFEX71808.1 R0908A
Key No. Qty. Description Key No. Qty. Description
