5
ASSEMBLY
To hire an authorized service technician to assemble the exercise cycle, call 1-800-445-2480.
A
ssembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included
tools, assembly requires your own Phillips screwdriver and adjustable
wrench .

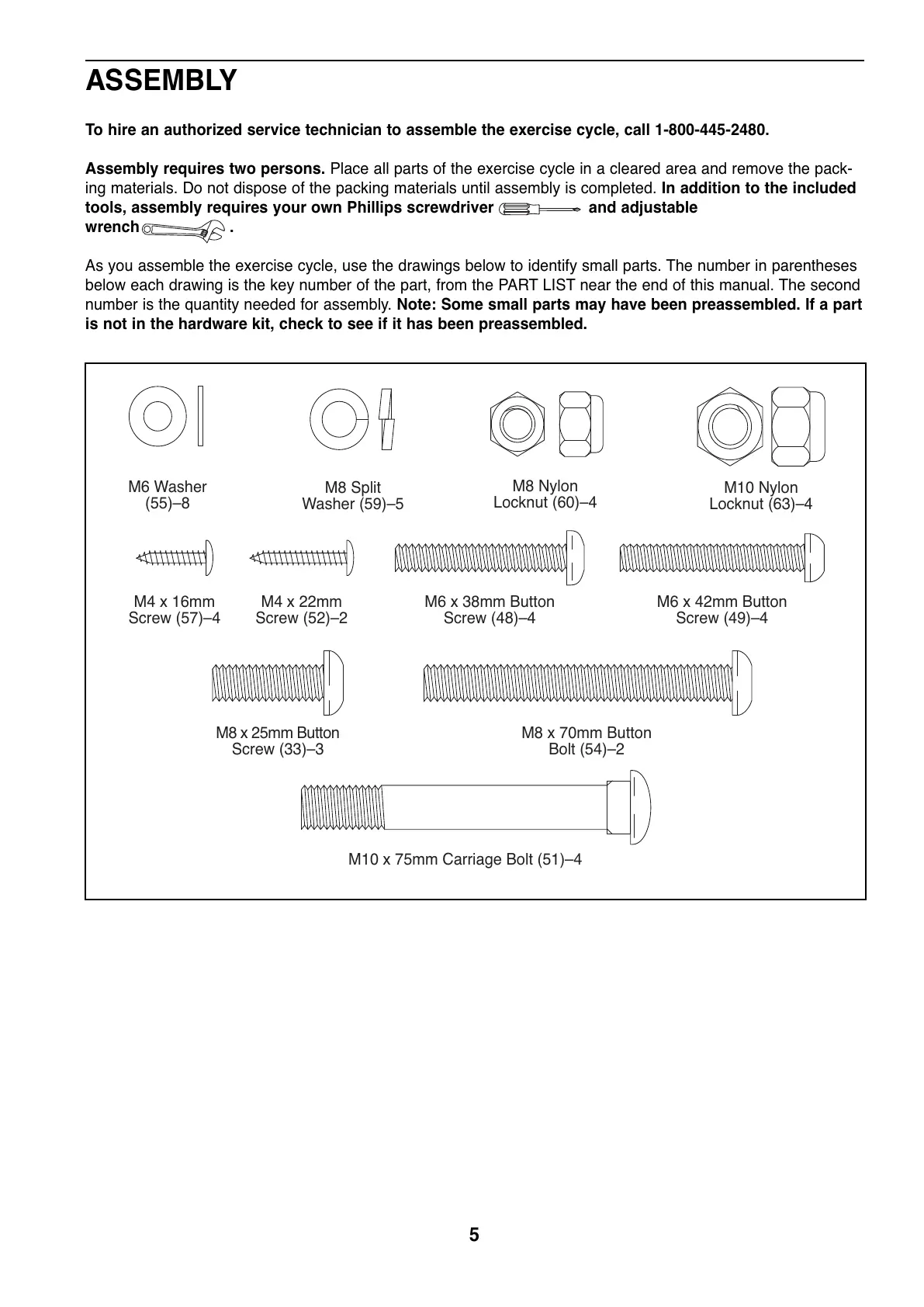

As you assemble the exercise cycle, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The second
number is the quantity needed for assembly. Note: Some small parts may have been preassembled. If a part
is not in the hardware kit, check to see if it has been preassembled.
