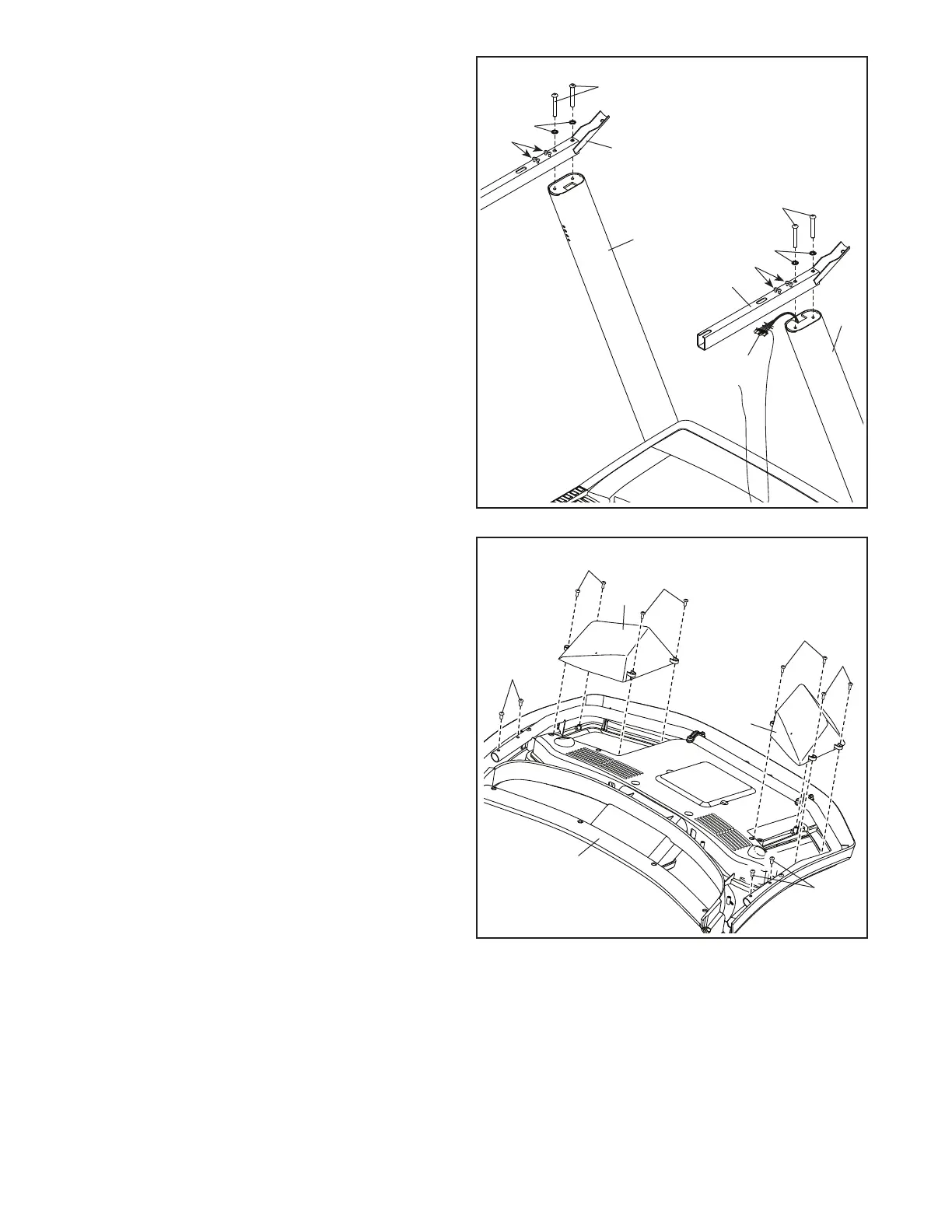

6. Attach a Handrail (81) to the Right Upright (86)
with two 5/16" x 2 1/4" Screws (7) and two 5/16"
Star Washers (12) in the location shown; start
both Screws, and then tighten them. Make
sure not to pinch the Upright Wire (88), and
make sure that the wire is on the indicated
side of the Right Upright.
Attach the other Handrail (81) to the Left
Upright (85) in the same way. Note: There are
no wires on the left side.
Then, remove and discard the indicated
screws (E).
7
7. Set the console assembly (F) facedown on a soft
surface to avoid scratching the console assem-
bly. Attach the Right and Left Trays (99, 98)
with eight #8 x 1/2" Screws (5); start all eight
Screws, and then tighten them. Do not over-
tighten the Screws.
Remove and save the four 1/4" x 1/2"
Screws (24).
5
24
24
99
98
F
5
5
5
88
86
85
81
E
81
7
12
12
7
E
