17

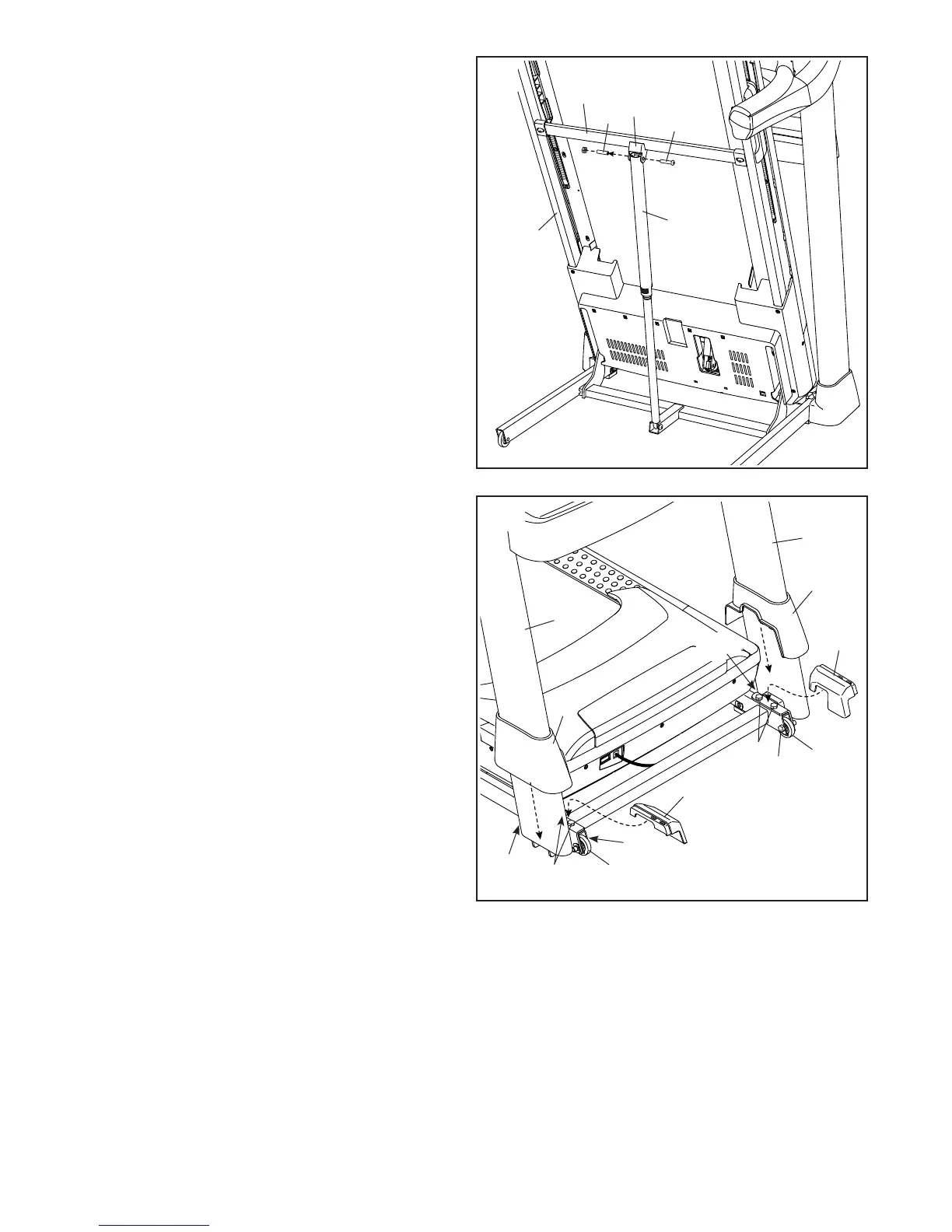

18. Remove the 5/16" Nut (12) and the 5/16" x 2 1/4"
Bolt (3) from the bracket on the Latch Crossbar
(38).
Align the upper end of the Storage Latch (53)
with the bracket on the Latch Crossbar (38),
and insert the 5/16" x 2 1/4" Bolt (3) through the
bracket and the Storage Latch. This will push a
spacer (N) out of the Storage Latch; discard
the spacer.
Next, tighten the 5/16" Nut (12) onto the 5/16" x
2 1/4" Bolt (3). Do not overtighten the Nut; the
Storage Latch (53) must be able to pivot.
Then, lower the Frame (56) (see HOW TO
LOWER THE TREADMILL FOR USE on page
29).
38
3
56
12
N
53
18
19. Firmly tighten the four 3/8" x 2 1/4" Screws
(7) and the two 3/8" x 1 1/4" Screws (63).
Next, tighten the two 3/8" x 1 3/4" Screws
(62); the Wheels (97) must turn freely.
Set the Left Inner Base Cover (108) onto the
lower end of the Left Upright (89). Then, slide
the Left Base Cover (82) downward and press it
onto the Left Inner Base Cover.
Next, set the Right Inner Base Cover (109) onto
the lower end of the Right Upright (90). Then,
slide the Right Base Cover (83) downward and
press it onto the Right Inner Base Cover.
108
83
82
62
89
7
7
63
62
109
19
90
63
97
97
To Next Page
