12. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plas-
tic on the treadmill decals, remove the plastic. Toprotecttheoororcarpet,placeamatunderthetreadmill.
Note: Extra hardware may be included. Keep the included hex key in a secure place; the hex key is used to
adjust the walking belt (see pages 24 and 25).
51
49
12
3
13
80
Large
Barrel
Latch
Knob
11

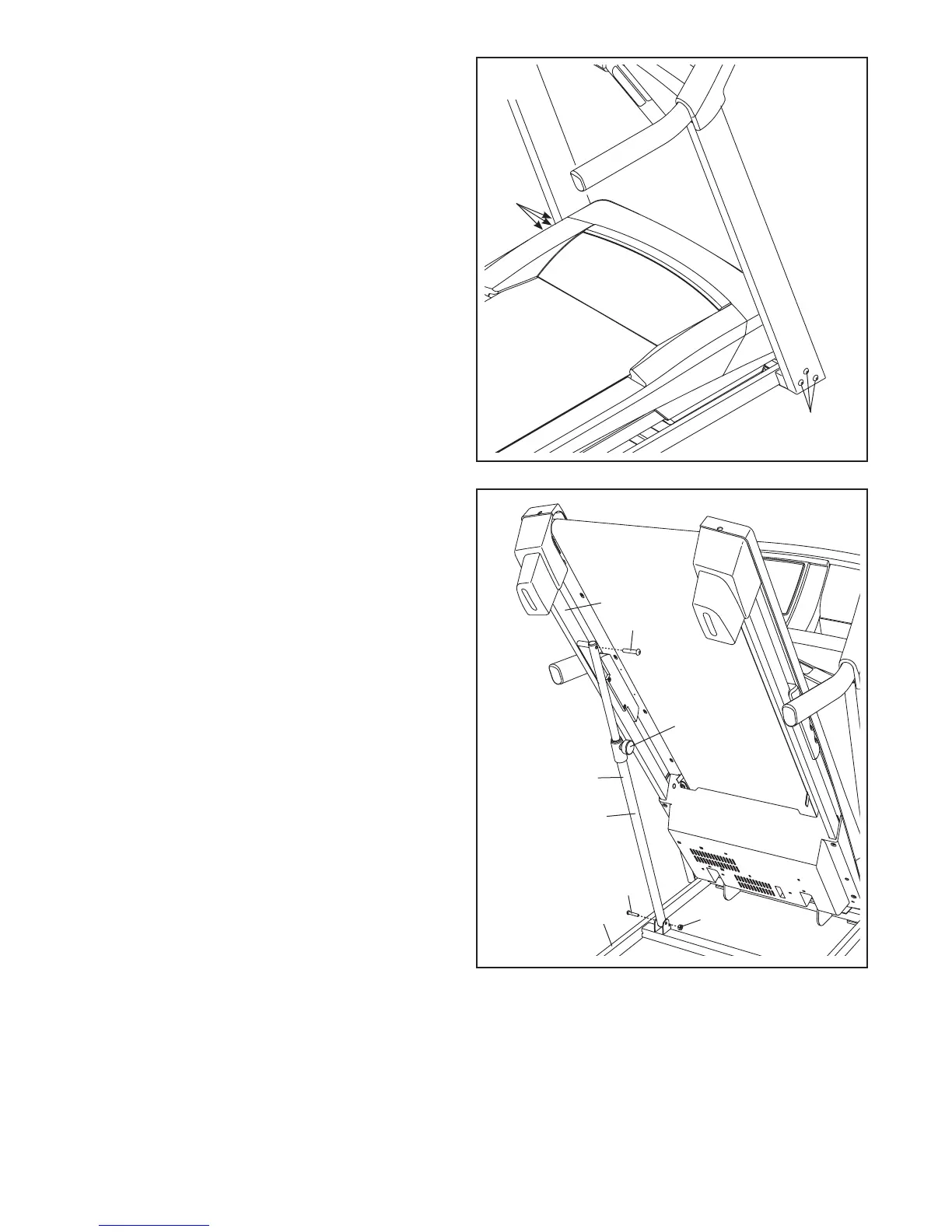

11. Raise the Frame (49) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (51) so that the large
barrel and the latch knob are oriented as shown.
Attach the lower end of the Storage Latch (51) to
the Base (80) with a 3/8" x 2" Bolt (13) and a 3/8"
Nut (3).
Attach the upper end of the Storage Latch (51)
to the Frame (49) with a 3/8" x 1 3/4" Screw (12).
Lower the Frame (not shown) (see HOW TO
LOWER THE TREADMILL FOR USE on page
22).
10. Fully tighten the six 3/8" x 3 1/2" Screws (4)
(three on each side).
4
10
4
