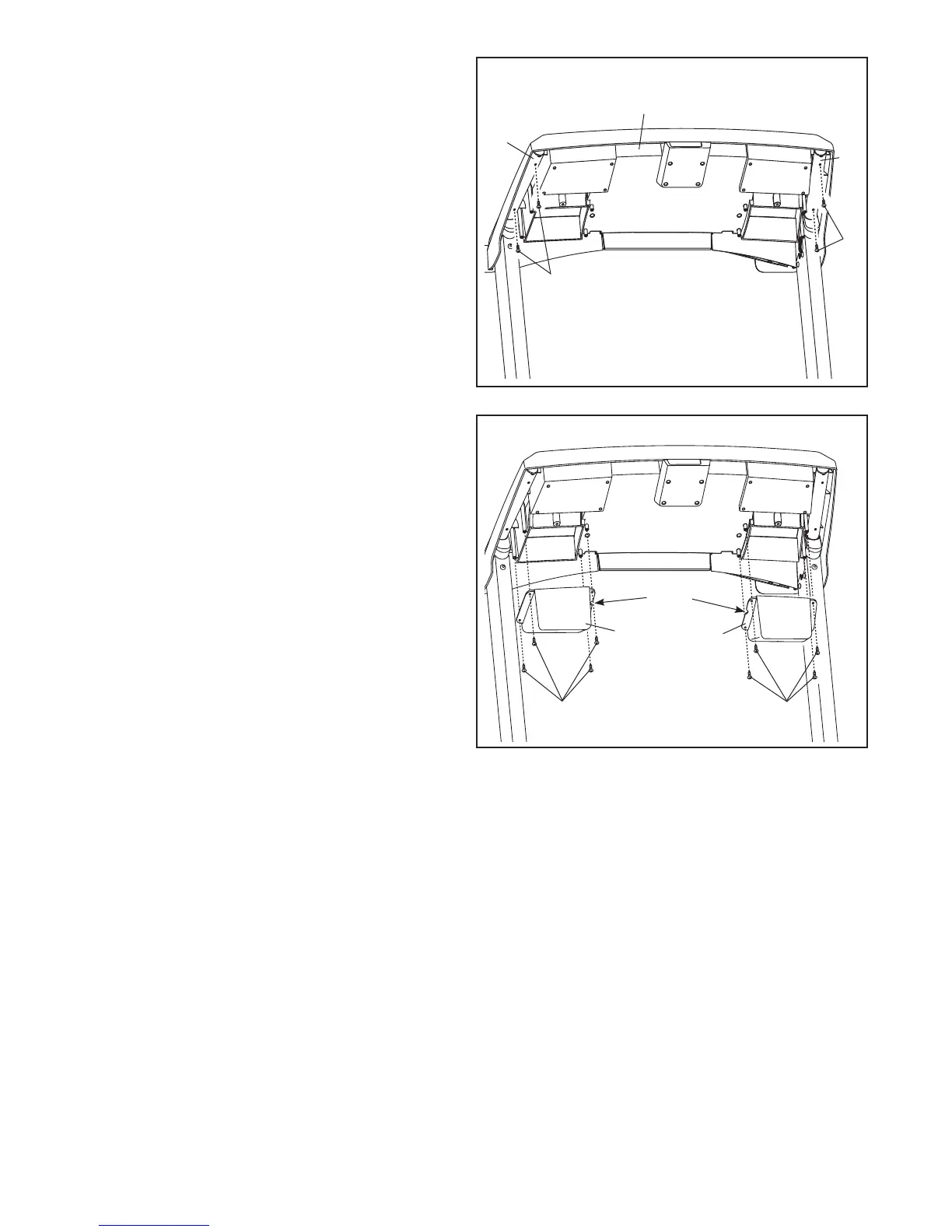

8. Attach the console assembly to the Left and
Right Handrail Tubes (10, 11) with four #8 x 3/4"
Screws (6); start all four Screws, and then
tighten them. Do not overtighten the Screws.
10
11
6
8
Console
Assembly
6
9. Identify the Left Tray (87) and the Right Tray
(88). Make sure that the indicated notch is po-
sitioned as shown. Attach the Trays with eight
#8 x 3/4" Screws (6). Start all eight Screws,
and then tighten them. Do not overtighten the
Screws.
6
88
87
9
Notch
6
To Next Page
