10

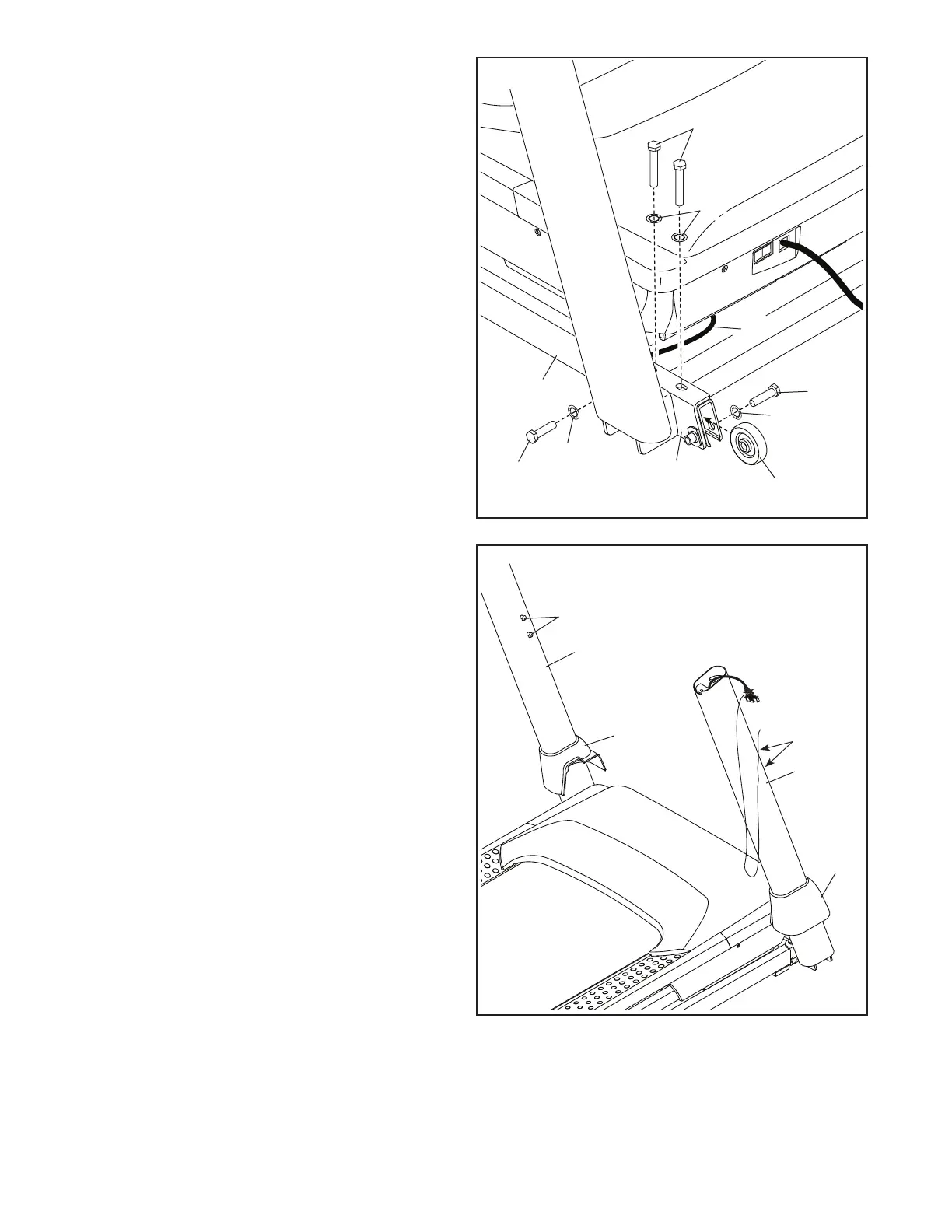

4. Hold the Right Upright (90) against the Base
(94). Make sure not to pinch the Upright
Wire (81).
Next, hold a Wheel (97) inside the Base (94),
and insert a 3/8" x 1 3/4" Screw (62) with a
3/8" Star Washer (13) through the Base and
the Wheel as shown; do not fully tighten the
Screw yet.
Insert two 3/8" x 2 3/8" Screws (7) with two 3/8"
Star Washers (13) and a 3/8" x 1 1/4" Screw
(63) with a 3/8" Star Washer into the bracket
at the bottom of the Right Upright (90), and
partially tighten the three Screws into the Base
(94); do not fully tighten the Screws yet.
Attach the Left Upright (not shown) and the
other Wheel (not shown) in the same way.
Note: There are no wires on the left side.
4
63
62
97
94
13
90
7
13
5. Remove and save the four 5/16" x 3/4"
Screws (31).
Identify the Left and Right Base Covers (82, 83).
Slide the Left Base Cover onto the Left Upright
(89), and slide the Right Base Cover onto the
Right Upright (90). Do not press the Base
Covers into place yet.
82
90
83
5
89
81
13
31
31
