17

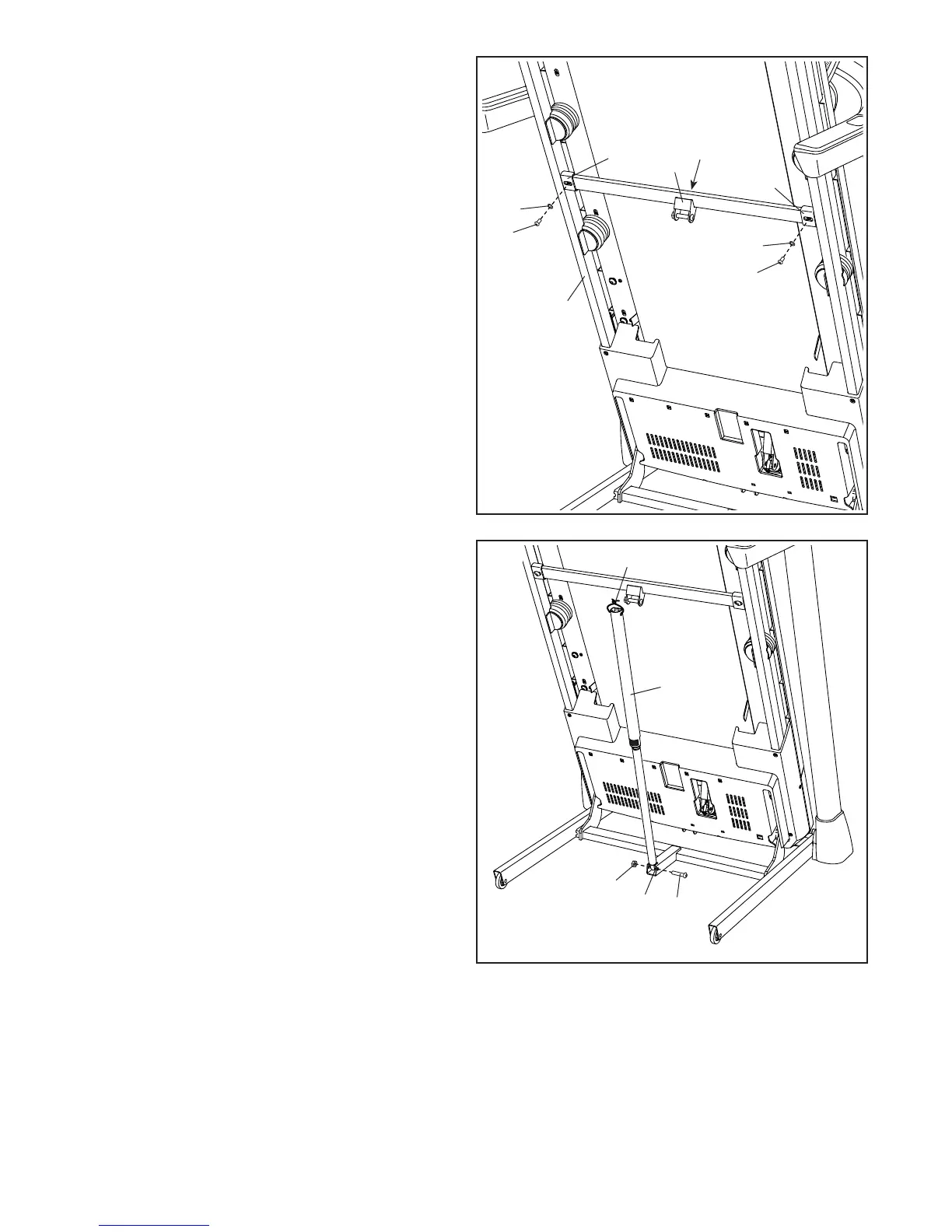

16. Note: If the treadmill is assembled on a
smooth surface, it may roll forward during
this step.
Raise the Frame (56) to the upright position.
Have a second person hold the Frame until
step 18 is completed.
Remove the two 5/16" x 3/4" Screws (4) from the
Latch Crossbar (38).
Orient the Latch Crossbar (38) as shown. Make
sure that the “This side toward belt” sticker
(N) is facing the treadmill. Attach the Latch
Crossbar to the brackets (O) on the Frame (56)
with the two 5/16" x 3/4" Screws (4) that you just
removed and two 5/16" Star Washers (11).
56
38
N
11
11
4
4
O
O
16
17. Remove the 5/16" Nut (12) and the 5/16" x 1 3/4"
Bolt (6) from the bracket on the Base (94).
Next, orient the Storage Latch (53) as shown.
Attach the lower end of the Storage Latch (53)
to the bracket on the Base (94) with the 5/16" x
1 3/4" Bolt (6) and the 5/16" Nut (12).
Then, raise the Storage Latch (53) to a vertical
position, and remove the tie (P).
94
53
6
12
17
P
To Next Page
