9
4
63
62
97
94
13
90
7
13
81
13

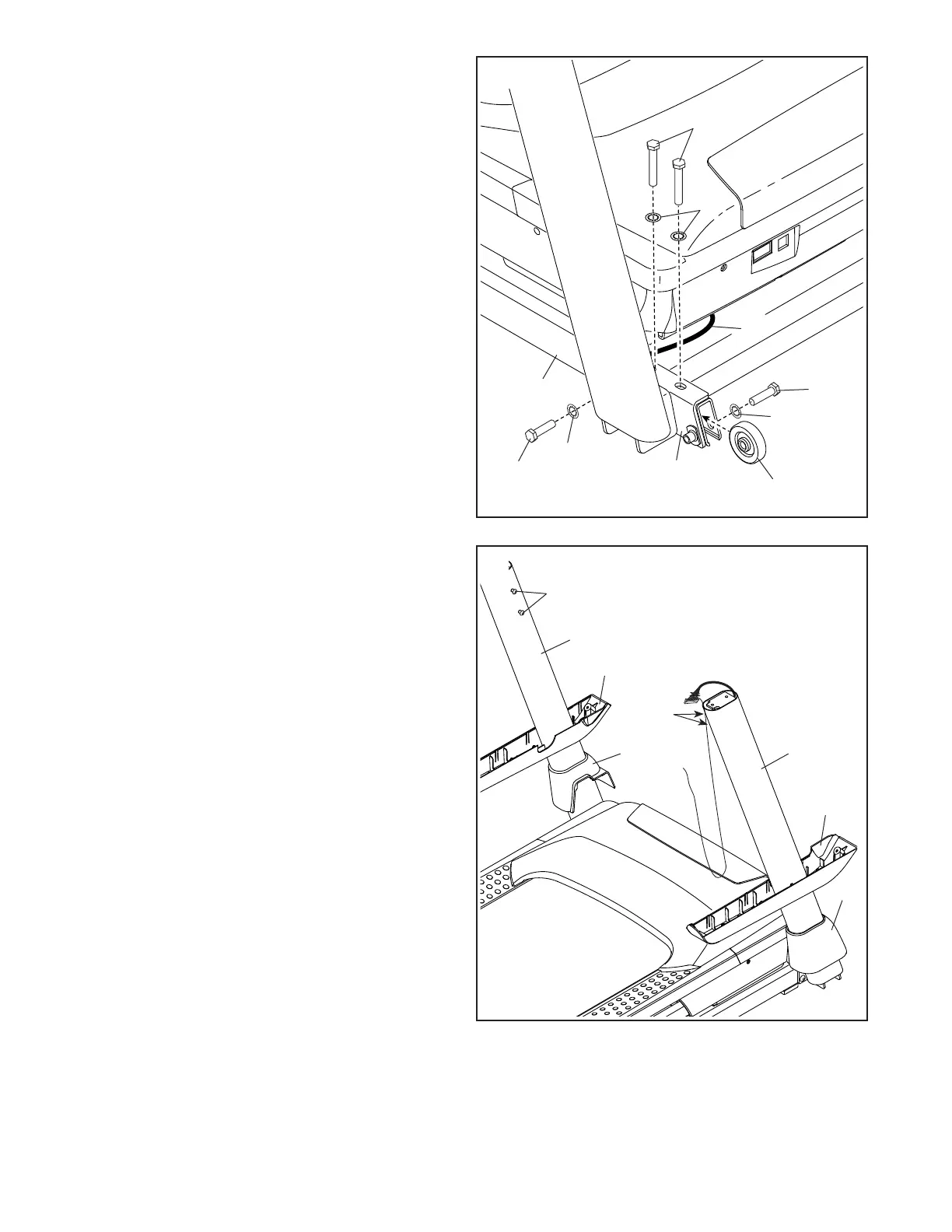

5. Remove and save the four 5/16" x 3/4"
Screws (109).
Identify the Left and Right Base Covers (82, 83).
Slide the Left Base Cover onto the Left Upright
(89), and slide the Right Base Cover onto the
Right Upright (90); do not press the Base
Covers into place yet.
Next, identify the Right and Left Bottom Handrail
Covers (84, 85). Slide the Left Bottom Handrail
Cover onto the Left Upright (89), and slide the
Right Bottom Handrail Cover onto the Right
Upright (90).
5
4. Hold the Right Upright (90) against the Base
(94). Make sure not to pinch the Upright Wire
(81).
Attach the Right Upright (90) and a Wheel (97)
with two 3/8" x 2 3/8" Screws (7), a 3/8" x 1 1/4"
Screw (63), a 3/8" x 1 3/4" Screw (62), and four
3/8" Star Washers (13) as shown; do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
82
85
90
83
84
89
109
109
To Next Page
