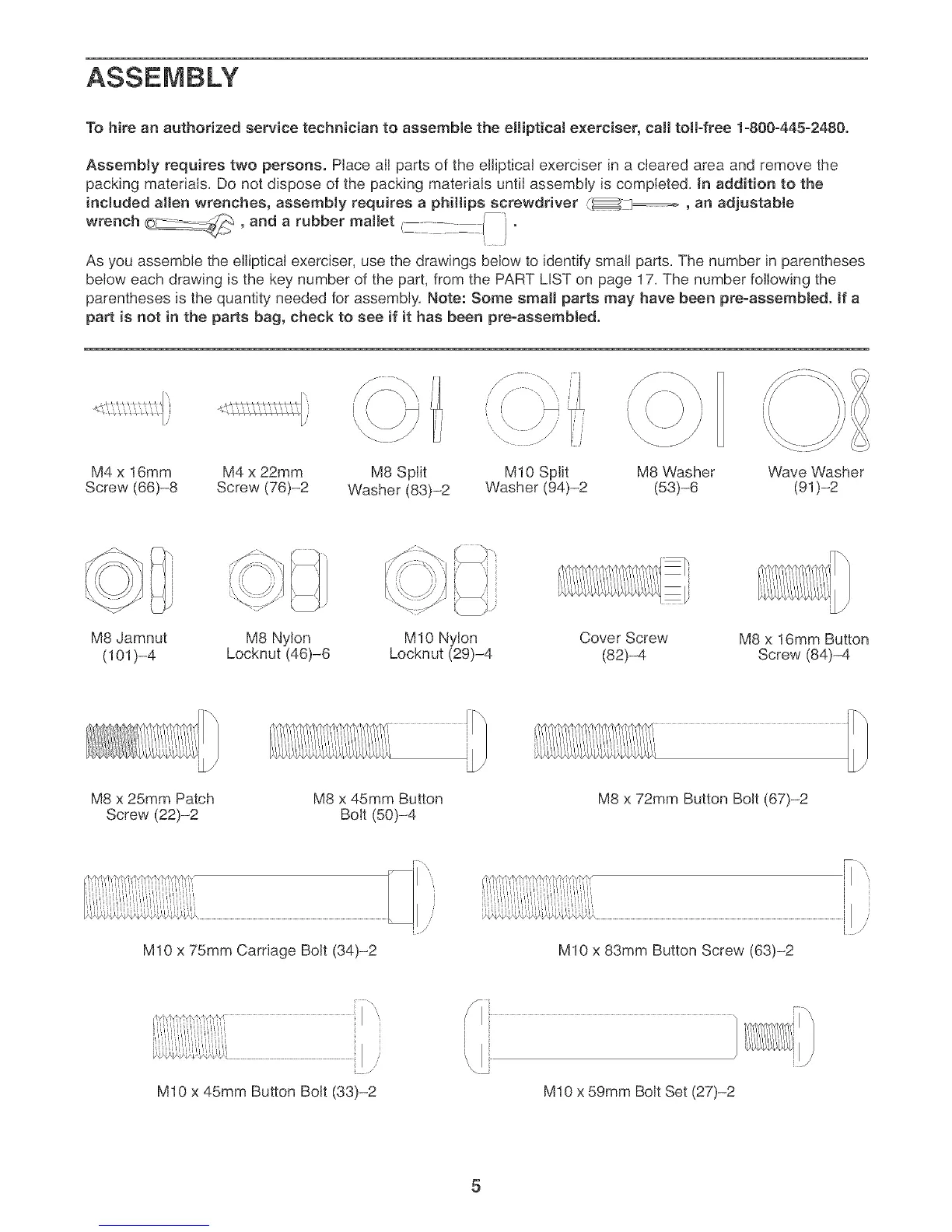

To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445o2480°
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials, Do not dispose of the packing materials until assembly is completed, tn addition to the
included allen wrenches, assembly requires a phillips screwdriver {_ _, an adjustable
wrench _ and a rubber mallet r .......... _i
' ',......... I J"
As you assemble the elliptical exerciser, use the drawings below to identify small parts, The number in parentheses
below each drawing is the key number of the part, from the PART LIST on page 17, The number following the
parentheses is the quantity needed for assembly, Note: Some small parts may have been preoassembted, tf a
part is not in the parts bag, check to see if it has been pre=assembted.
i' i i
il
M8 Split
Washer (83)-2
M4 x 16mm M4 x 22mm M10 Split
Screw (66)-8 Screw (76)-2 Washer (94)-2
M8 Washer Wave Washer
(53)-6 (91)-2
M8 Jamnut M8 Nylon M10 Nylon
(101 )-4 Locknut (46)-6 Locknut (29)-4
Cover Screw M8 x 16ram Button
(82)-4 Screw (84)-4
M8 x 25mm Patch
Screw (22)-2
M8 x 45mm Button
Bolt (50)-4
M8 x 72mm Button Bolt (67)-2
M10 x 75mm Carriage Bolt (34)-2 M10 x 83mm Button Screw (63)-2
M10 x 45mm Button Bolt (33)-2
s_
li -
M10 x 59mm Bolt Set (27)-2
