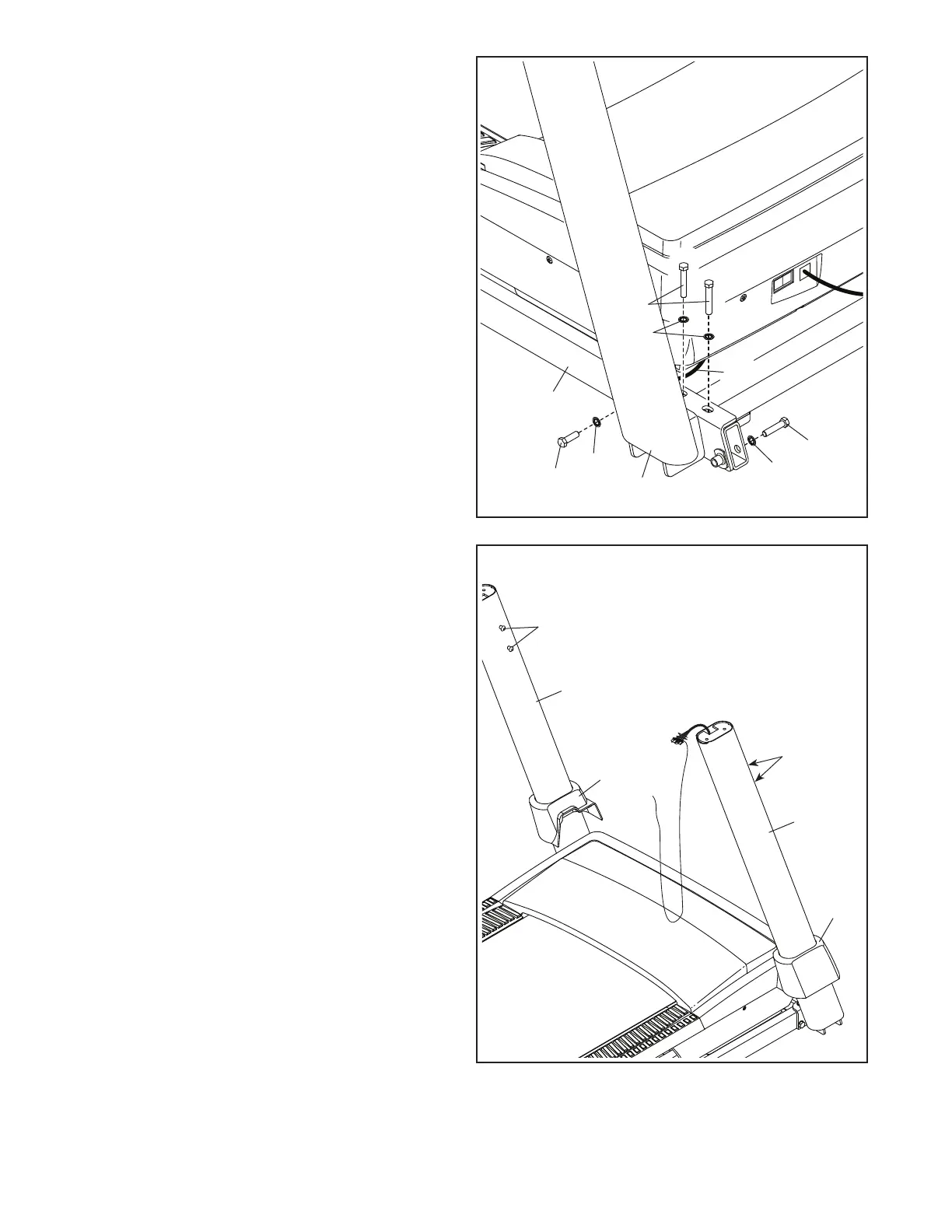

4. Hold the Right Upright (86) against the Base
(97). Make sure not to pinch the Upright
Wire (88).
Insert two 3/8" x 2 3/8" Screws (3) with two 3/8"
Star Washers (11) into the top of the bracket on
the Right Upright (86). Partially tighten the two
Screws into the Base (97); do not fully tighten
the Screws yet.
Next, partially tighten a 3/8" x 1 1/4" Screw
(1) and a 3/8" x 1 3/4" Screw (2) with 3/8"
Star Washers (11) into the bottom of the Right
Upright (86); do not fully tighten the Screws
yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
4
1
2
97
11
86
3
11
88
5. Remove and save the four 5/16" x 3/4"
Screws (8).
Identify the Left and Right Base Covers (93, 92).
Slide the Left and Right Base Covers onto the
Left and Right Uprights (85, 86) as shown.
92
86
93
85
5
11
8
8
