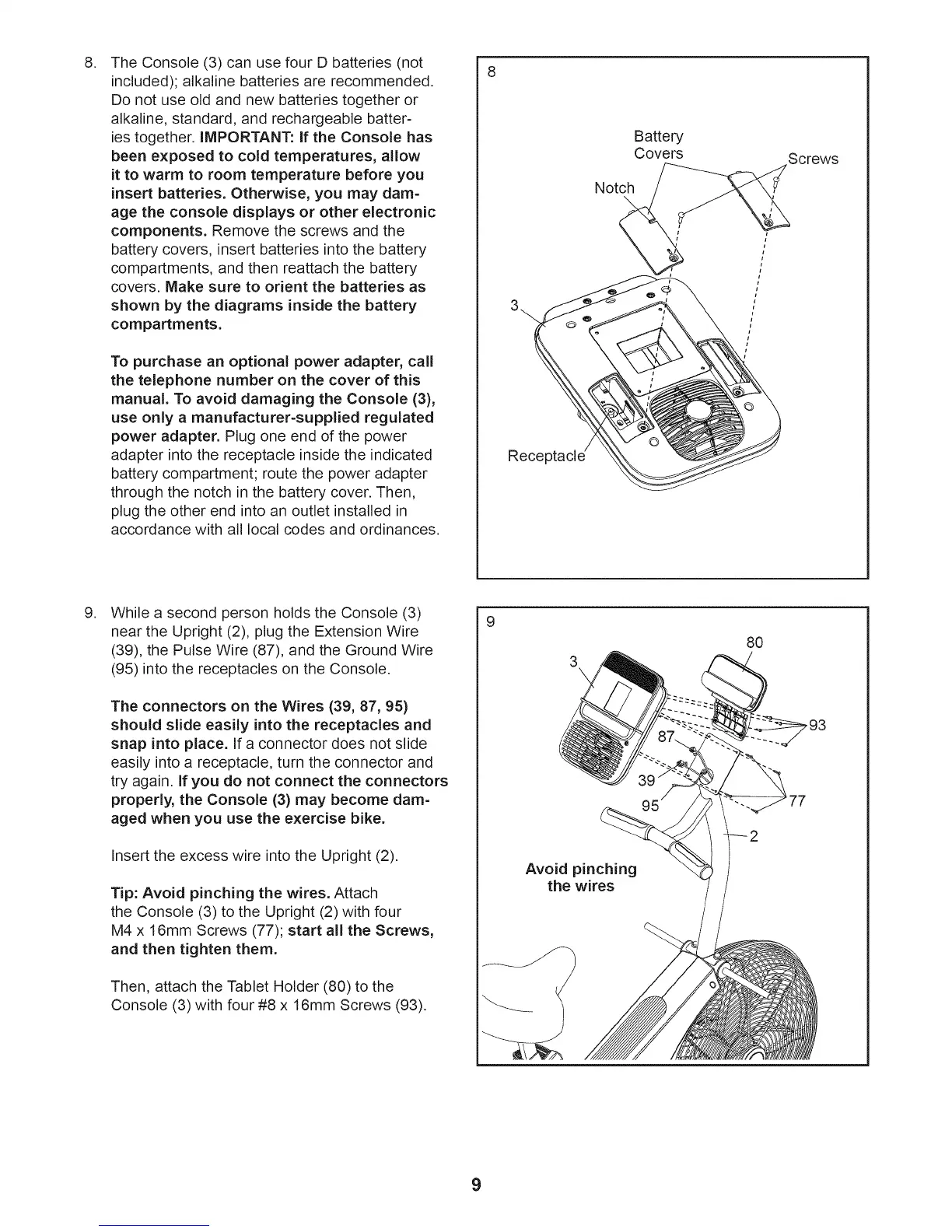

8. 8
The Console (3) can use four D batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batter-
ies together, iMPORTANT: If the Console has
been exposed to cold temperatures, allow
it to warm to room temperature before you
insert batteries. Otherwise, you may dam-
age the console displays or other electronic
components. Remove the screws and the
battery covers, insert batteries into the battery
compartments, and then reattach the battery
covers. Make sure to orient the batteries as
shown by the diagrams inside the battery
compartments.
To purchase an optional power adapter, call
the telephone number on the cover of this
manual. To avoid damaging the Console (3),
use only a manufacturer-supplied regulated
power adapter. Plug one end of the power
adapter into the receptacle inside the indicated
battery compartment; route the power adapter
through the notch in the battery cover. Then,
plug the other end into an outlet installed in
accordance with all local codes and ordinances.
3_
Rece
Notch
Battery
Covers
Screws
.
While a second person holds the Console (3)
near the Upright (2), plug the Extension Wire
(39), the Pulse Wire (87), and the Ground Wire
(95) into the receptacles on the Console.
The connectors on the Wires (39, 87, 95)
should slide easily into the receptacles and
snap into place. If a connector does not slide
easily into a receptacle, turn the connector and
try again. If you do not connect the connectors
properly, the Console (3) may become dam-
aged when you use the exercise bike.
Insert the excess wire into the Upright (2).
Tip: Avoid pinching the wires. Attach
the Console (3) to the Upright (2) with four
M4 x 16mm Screws (77); start all the Screws,
and then tighten them.
Then, attach the Tablet Holder (80) to the
Console (3) with four #8 x 16mm Screws (93).
9
Avoid pinching
the wires
8O
,93
9
