Pro-Form ZE5 User Manual

11
11
Batteries
Screw
Battery
Cover

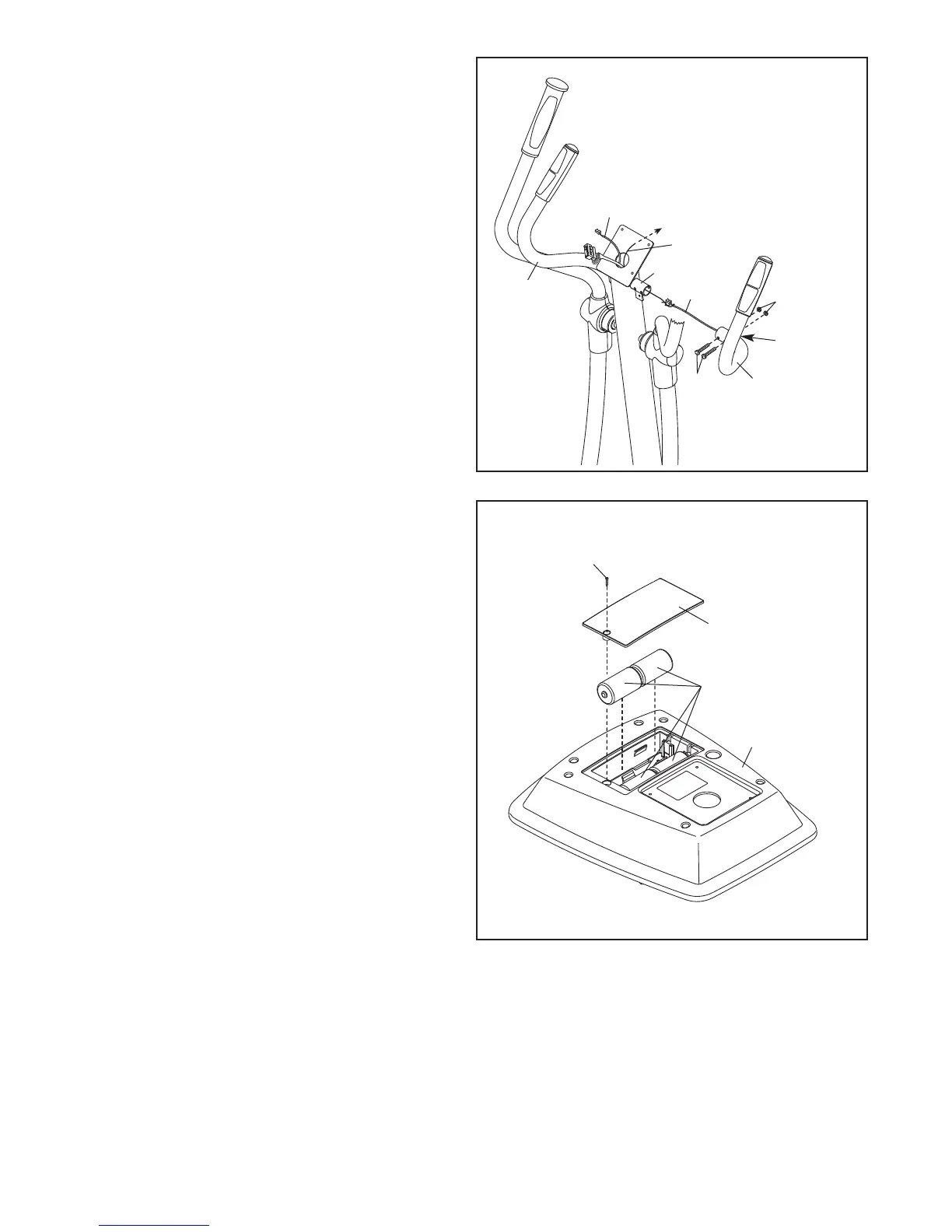

11. The Console (4) can use four D batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic compo-
nents. Remove the screw, remove the battery
cover, insert the batteries into the battery com-
partments, and reattach the battery cover. Make
sure to orient the batteries as shown by the
diagrams inside the battery compartments.
To purchase an optional AC adapter, contact
the store where you purchased this product
or call the telephone number on the cover of
this manual. To avoid damaging the console,
use only a manufacturer-supplied AC
adapter. Plug one end of the AC adapter into
the jack on the console; plug the other end into
an outlet installed in accordance with all local
codes and ordinances.
4
10. Identify the Right Handlebar (59), which is
marked with a “Right” sticker, and orient it as
shown.
Have a second person hold the Right
H
andlebar (59) near the right side of the Upright
(2). Locate the wire tie in the Upright. Tie the
lower end of the wire tie to the right Pulse Wire
(28). Next, pull the upper end of the wire tie
upward out of the top of the Upright. Then, untie
and discard the wire tie.
Tip: Avoid pinching the Pulse Wire (28).
Attach the Right Handlebar (59) to the Upright
(2) with two M6 x 38mm Bolts (108) and two M6
Locknuts (74). Make sure that the Locknuts
are in the hexagonal holes.
Repeat this step to attach the Left Handlebar
(39).
10
74
2
28
28
108
59
39
Hexagonal
Holes
Wire Tie
A
void pinching the
Pulse Wires (28)

Pro-Form ZE5 Specifications

General

Brand	Pro-Form
Model	ZE5
Category	Elliptical Trainer
Language	English
